Versatile 500 lb. Hydraulic Home Lift
VERSATILE HOME MOBILITY

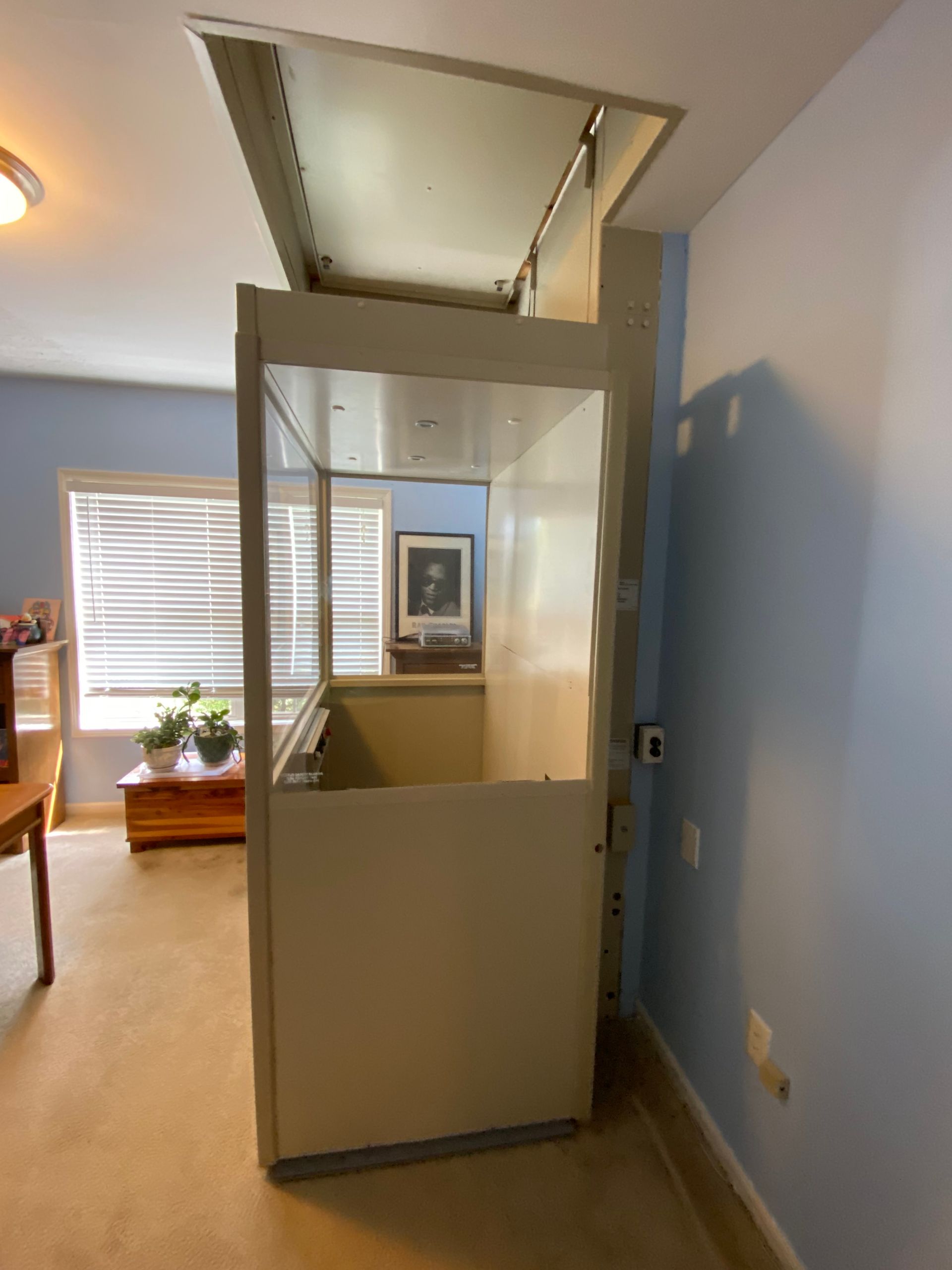

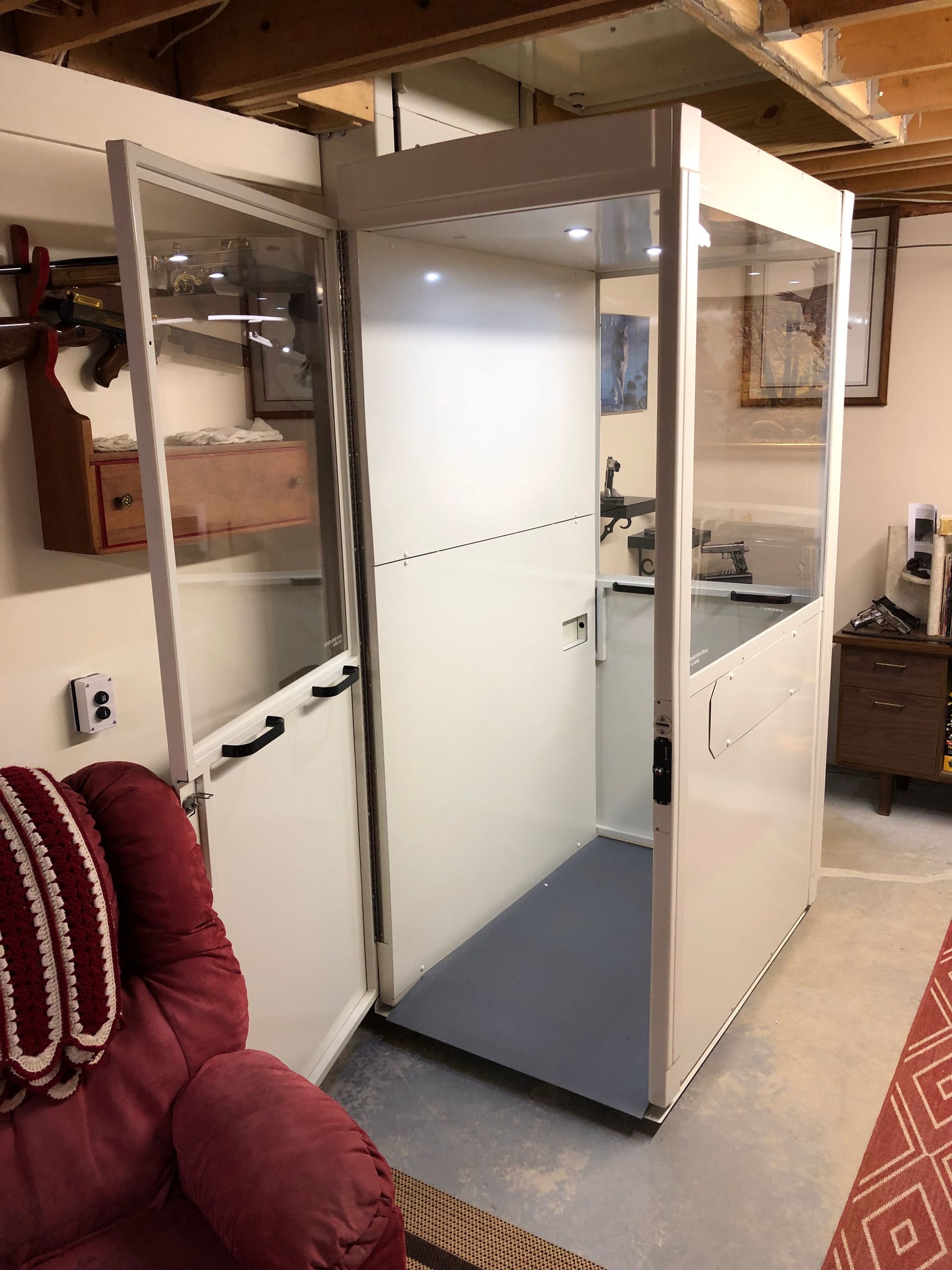

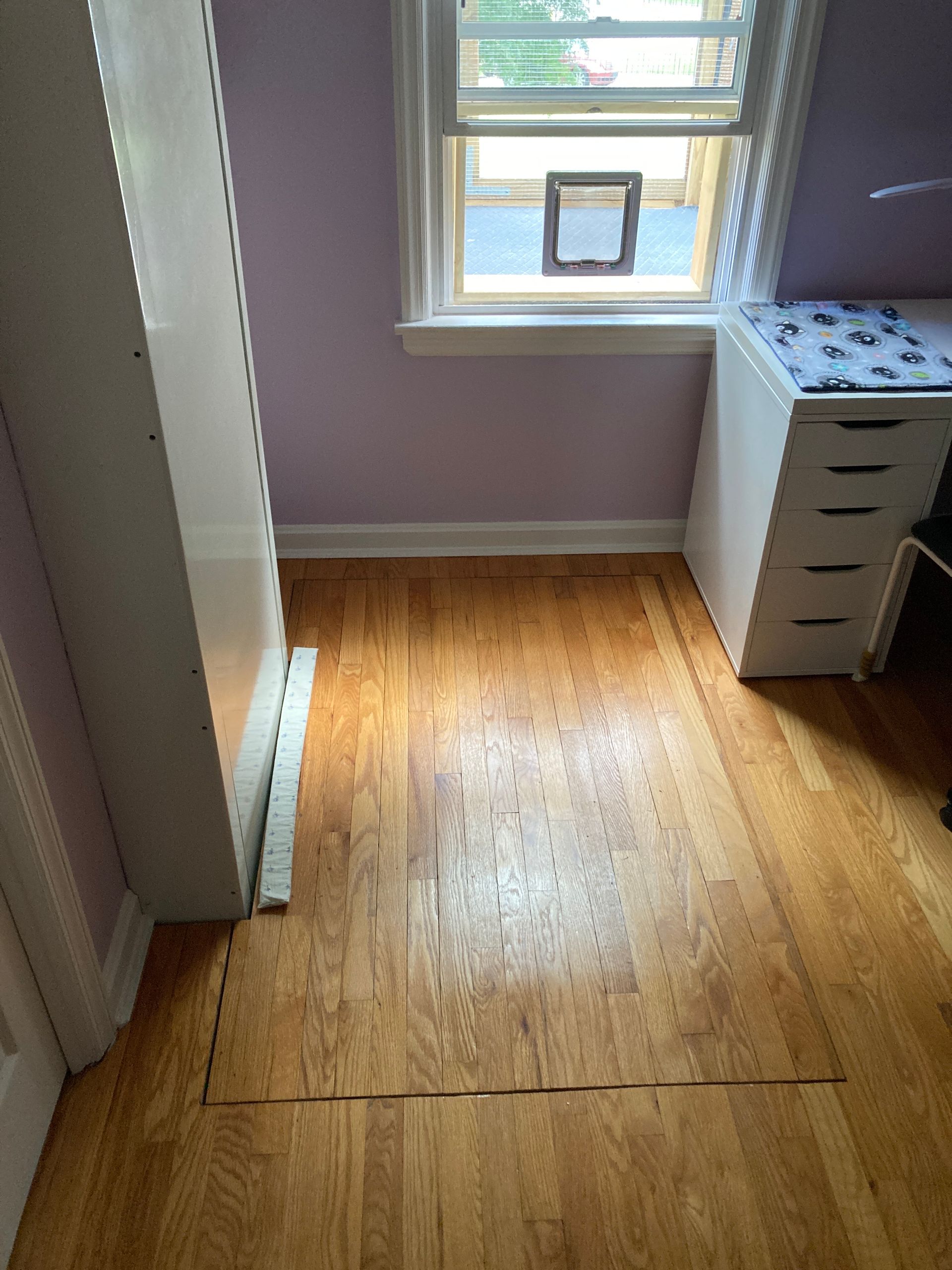

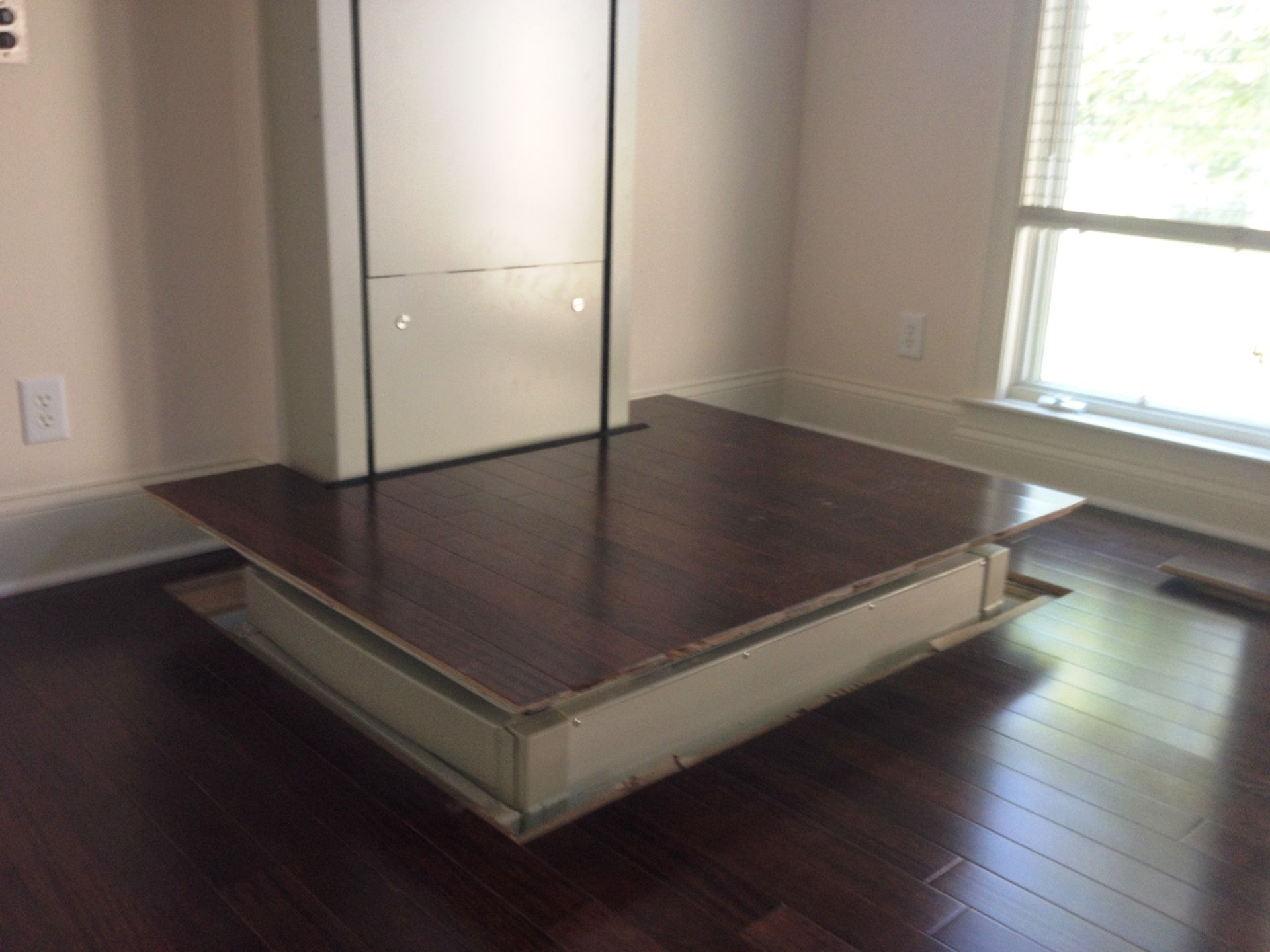

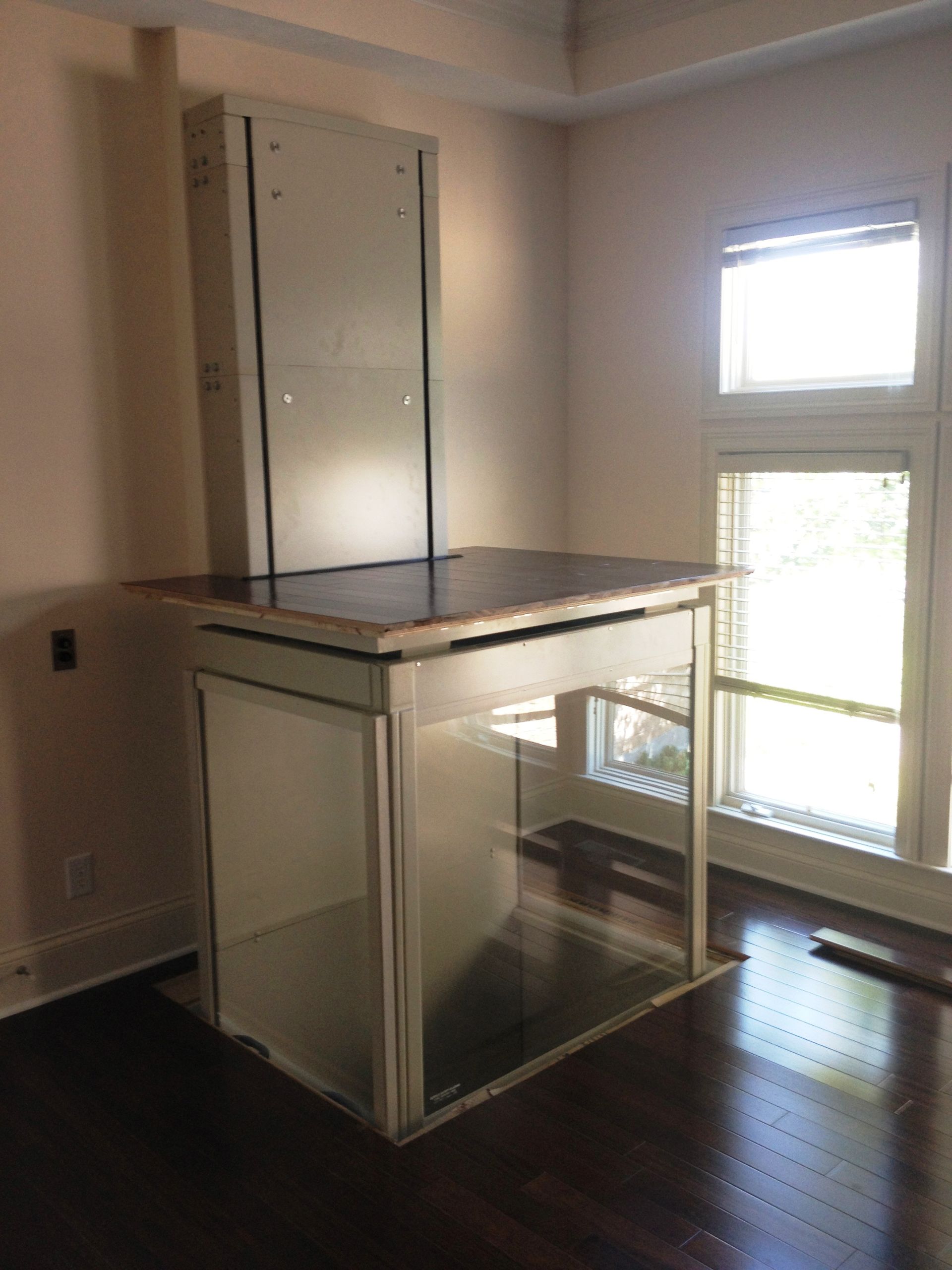

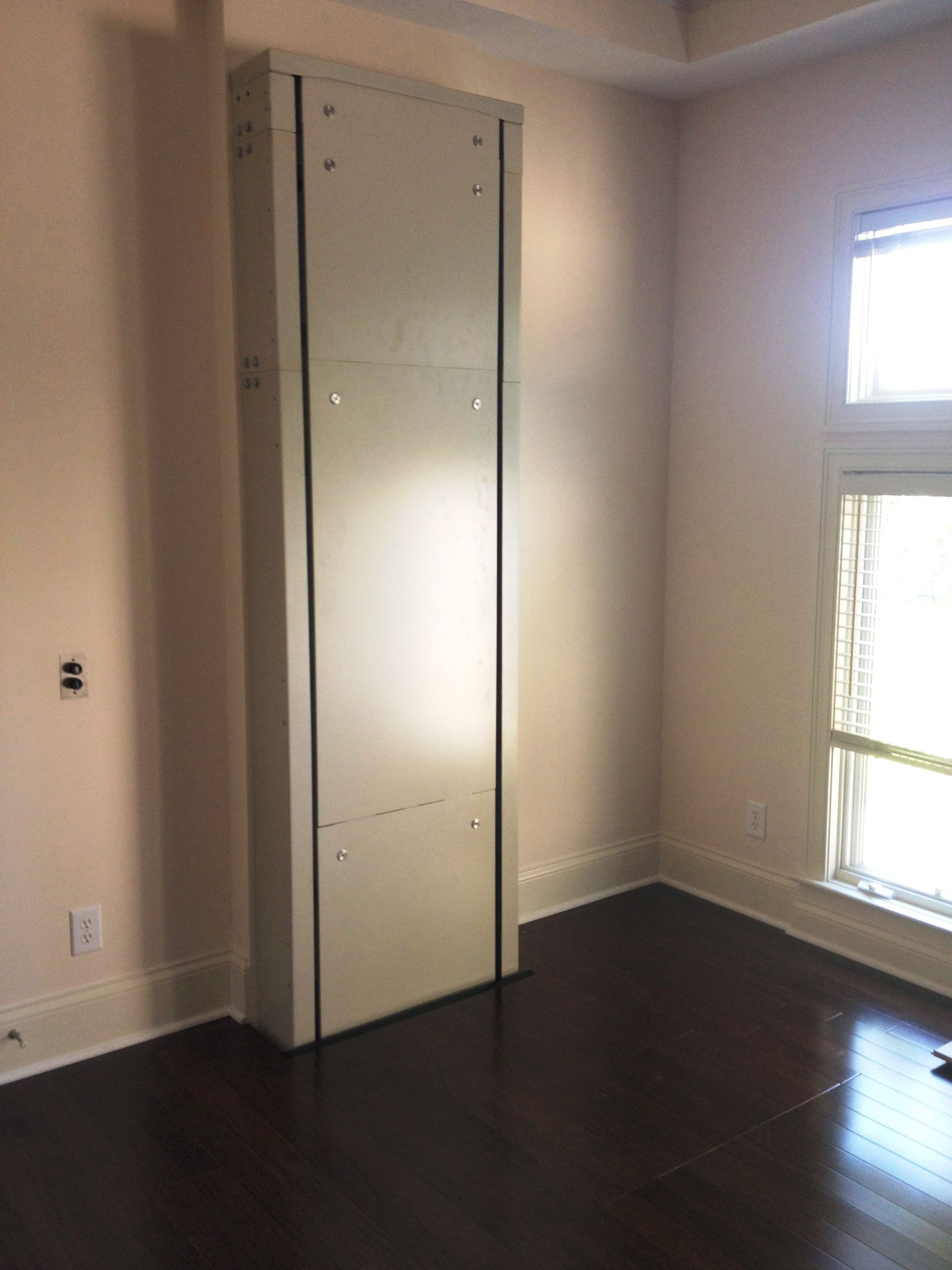

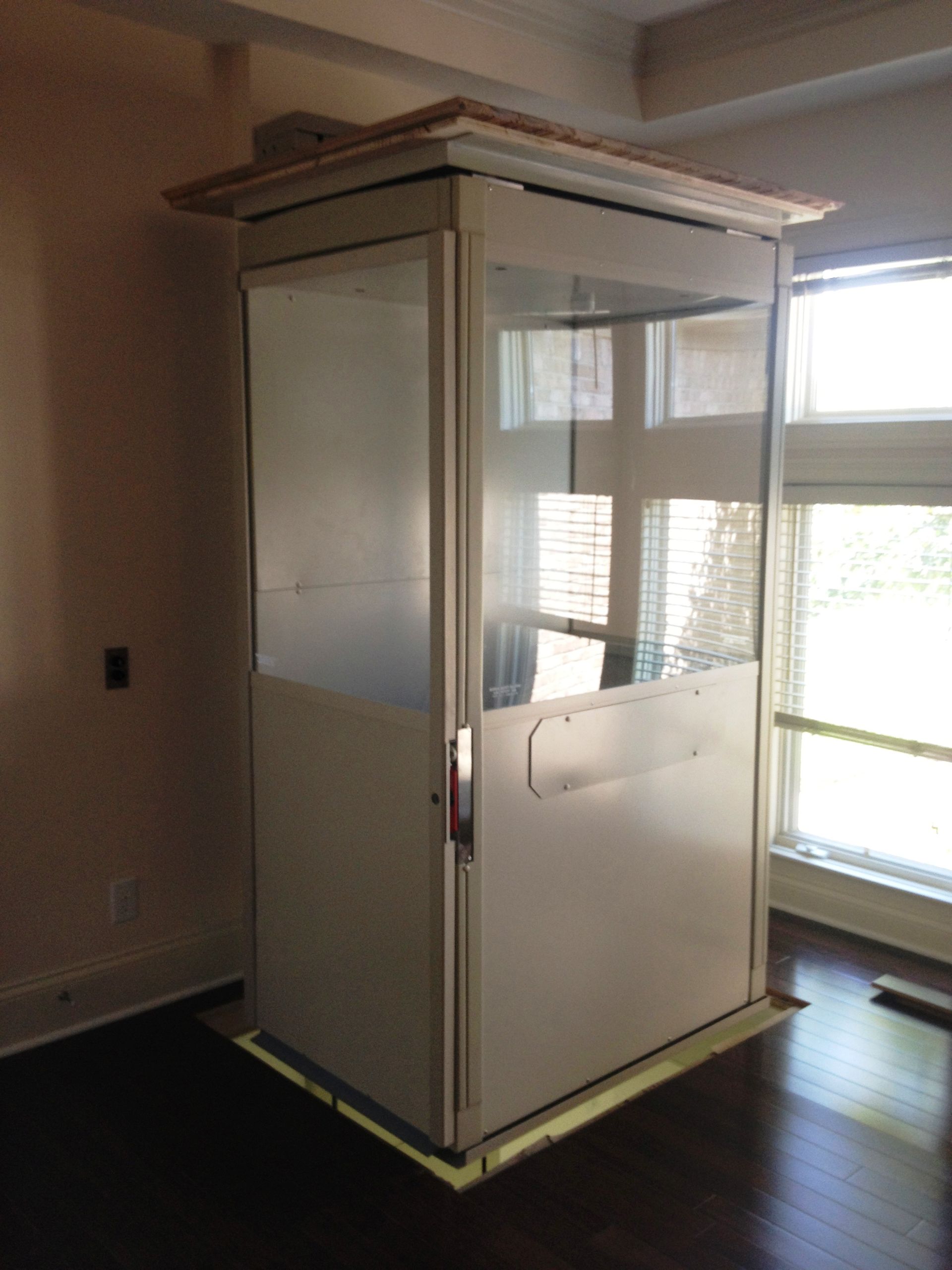

The Telecab model is a lighter duty 500 pound capacity home lift with multiple configuration options. No hoist way or pit required. It has a fully enclosed drive tower designed for safety and aesthetics. It requires a less invasive construction project than a traditional home elevator, with only a support wall and floor cutout needed.
Safety features include interior lighting, emergency stop and alarm buttons, battery lowering in case of power failure as well as manual emergency lowering, telephone, non skid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, pressure relief valve to prevent platform overload, door interlock, and slack chain safety device.
Standard Features:
- Capacity - 500 lb.
- Travel speed 20 fpm - Constant pressure controls with keyed or keyless access
- Travel height - up to 23’
- Power Supply Single phase 110 VAC, 30A, 60Hz
- Battery back-up and manual lowering in case of power outage
- Cabin sizes:
-30” W x 47” D x 78” H (one side or
straight through doors)-Type 1
-32” W x 54” D x 78” H (one side or
straight through doors)-Type 2
-30” W x 46” D x 78” H (front opening side
only)-Type 5
-32" W x 53" D x 78” H (front opening side
only)-Type 5
- Manual Door

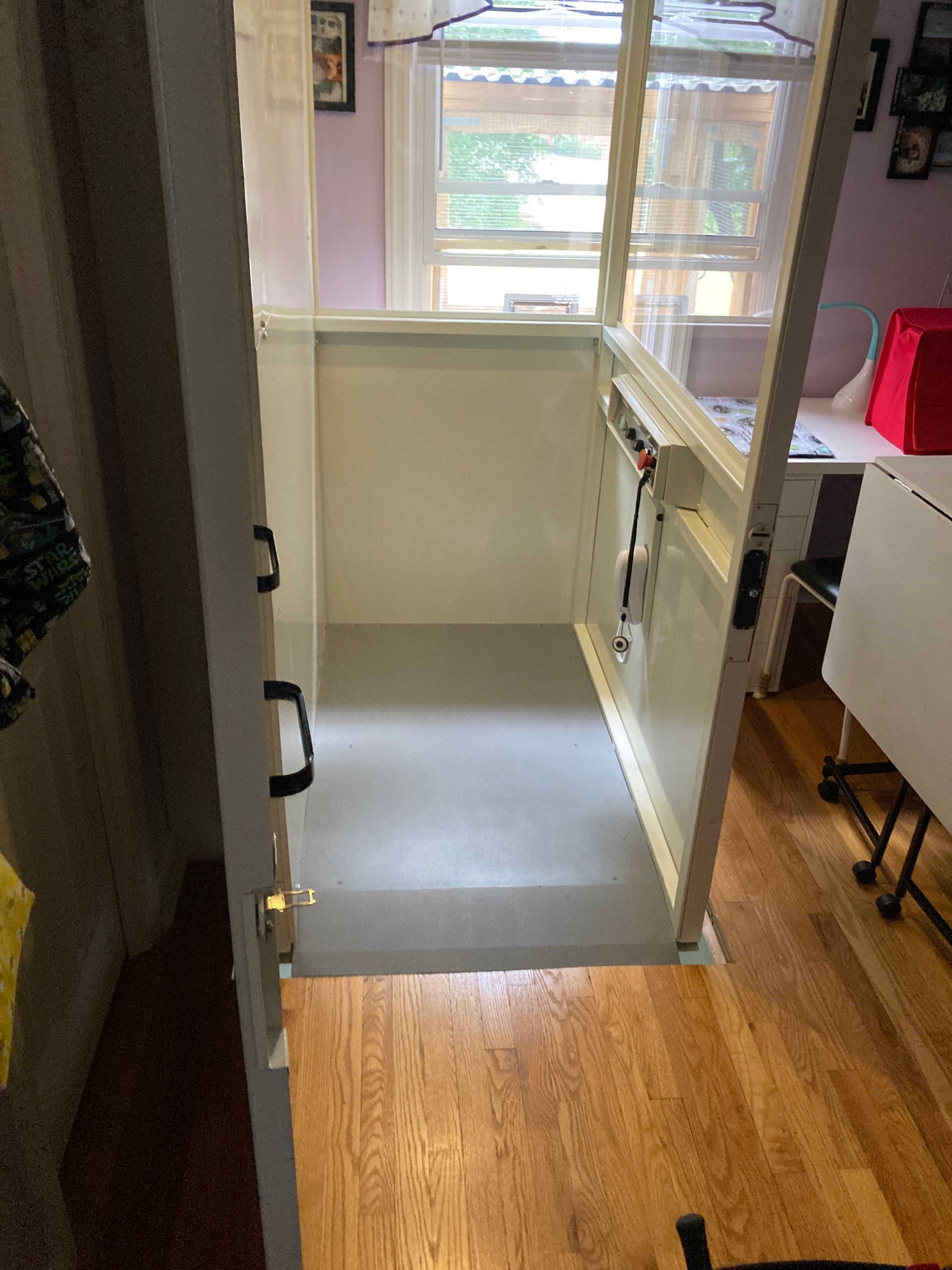

- Car Operating Panel - Up/down buttons, emergency stop and alarm.
- Slimline Phone
- Landing controls - Flush or Surface mount with up/down buttons
Options:
- Battery Power backup for up/down up to 5 trips
- Automatic Door Opener
Installation
Professional Measure + Installation available in the following areas:
Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.

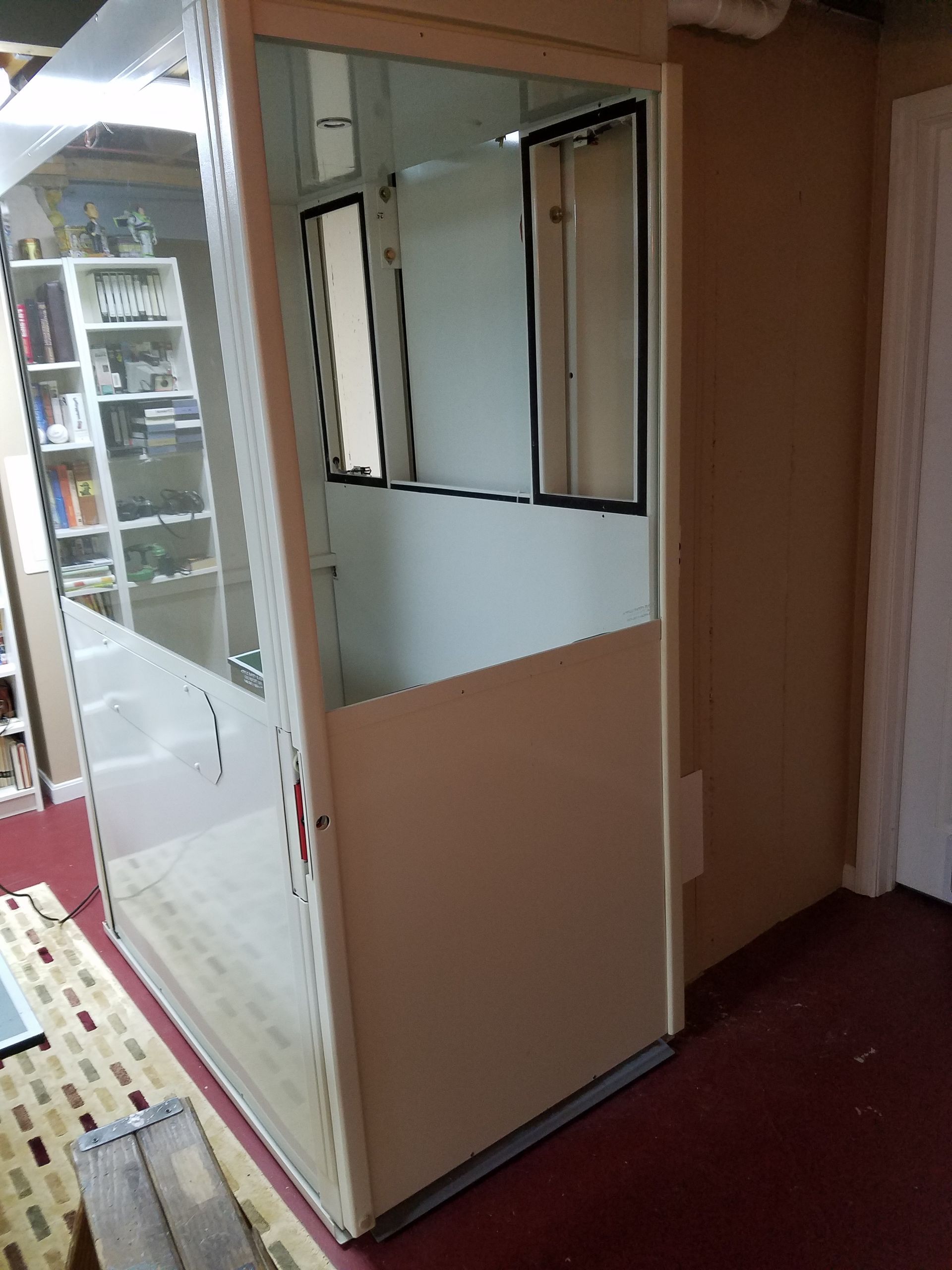

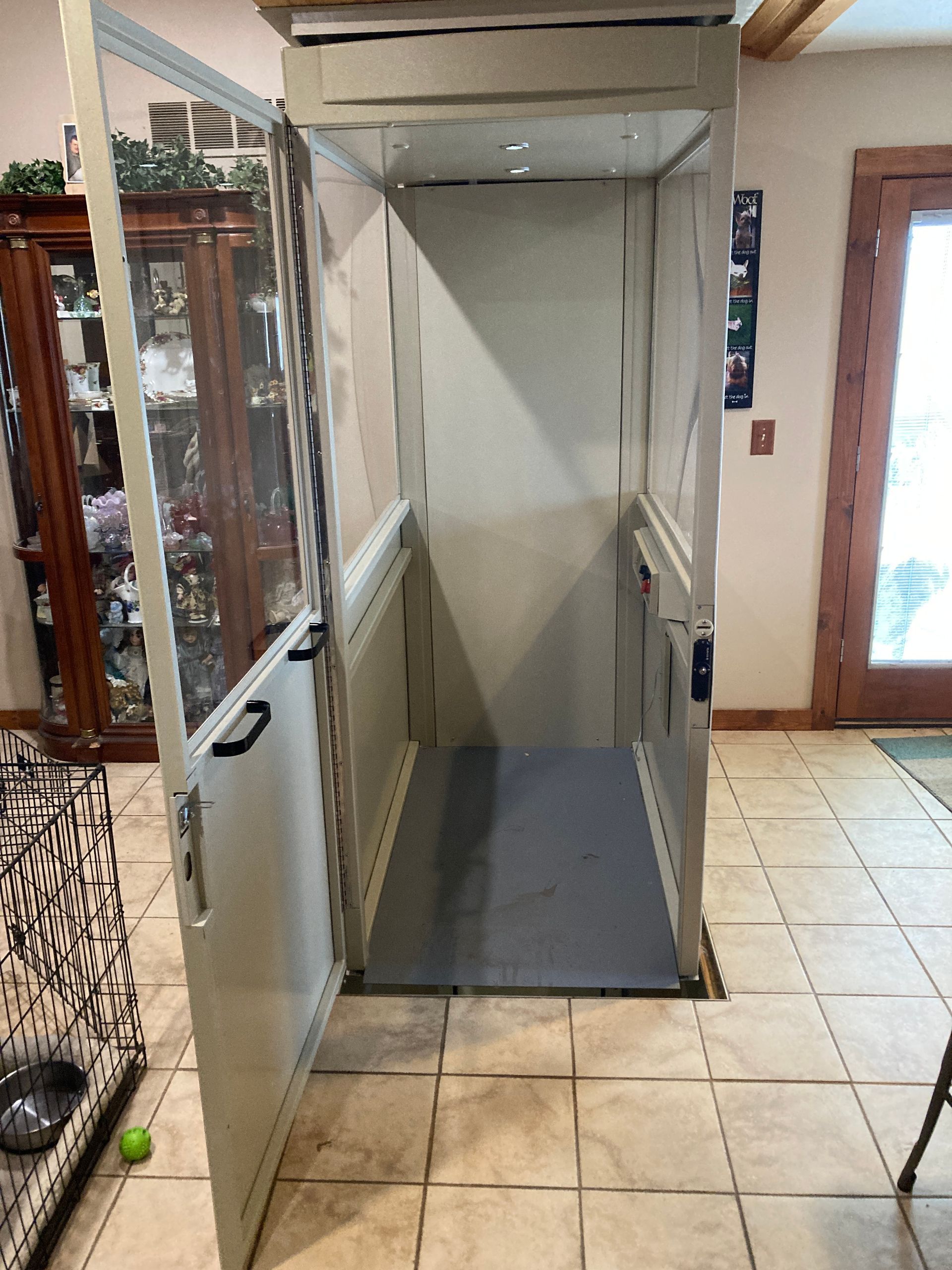

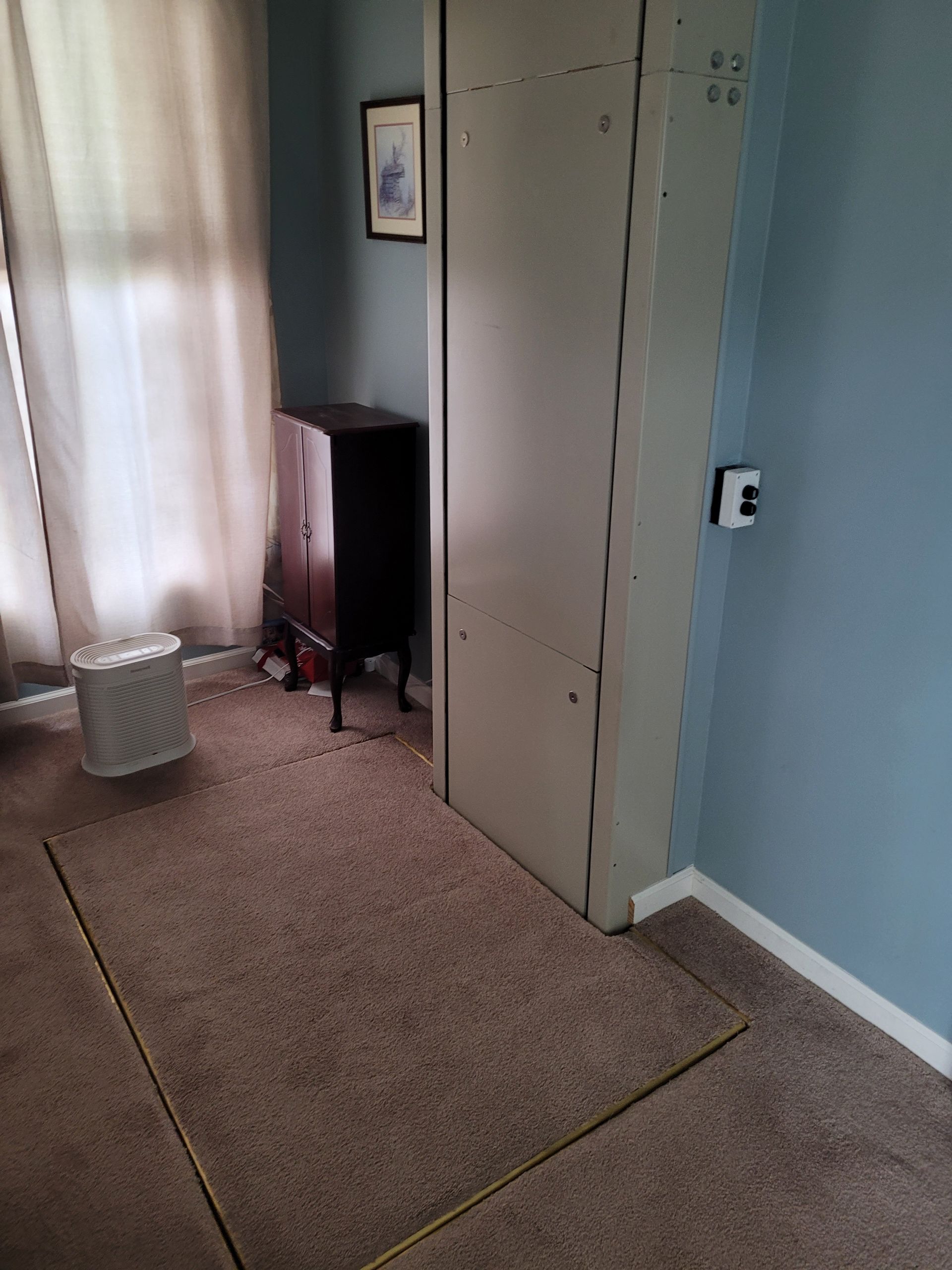

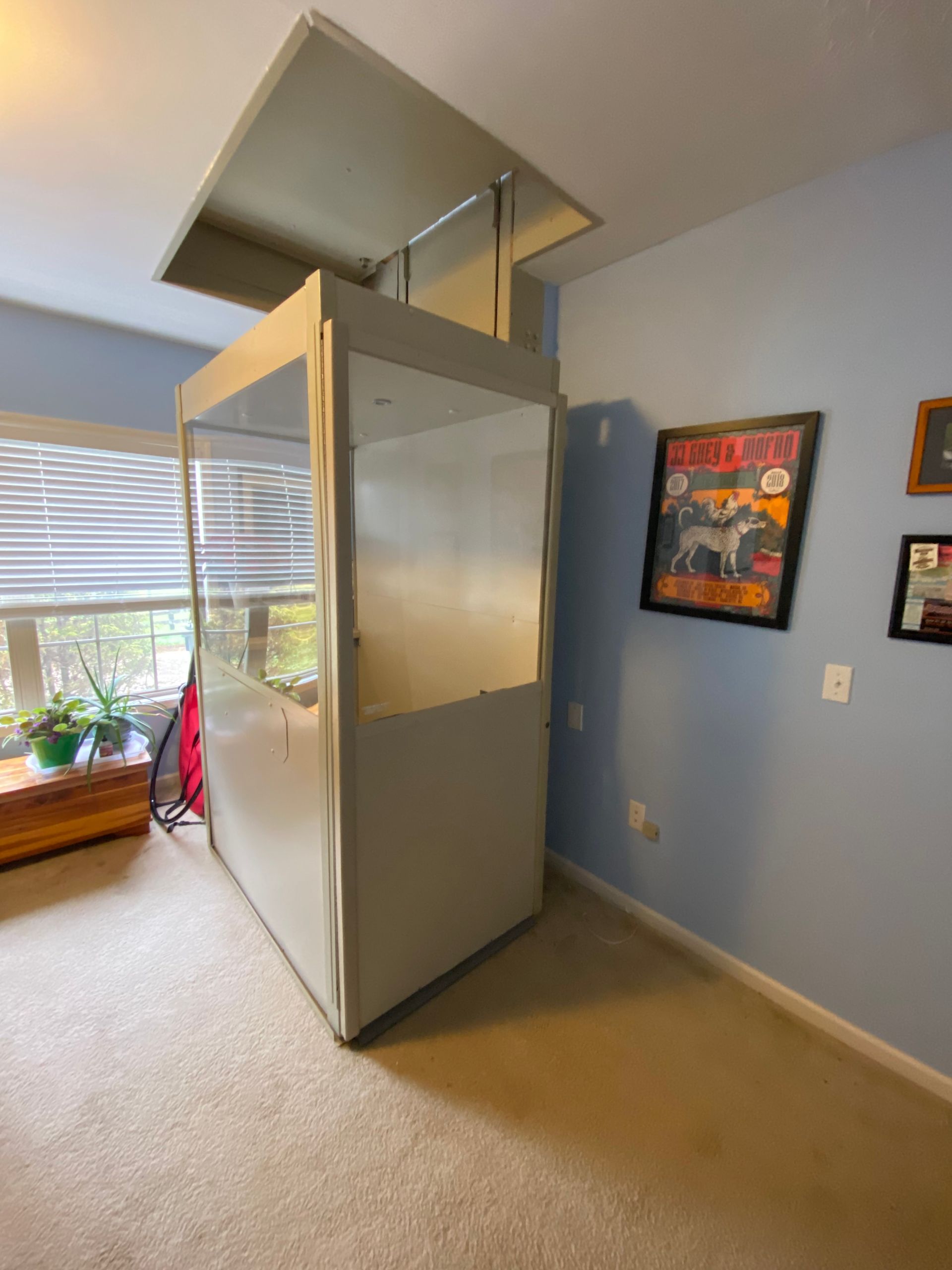

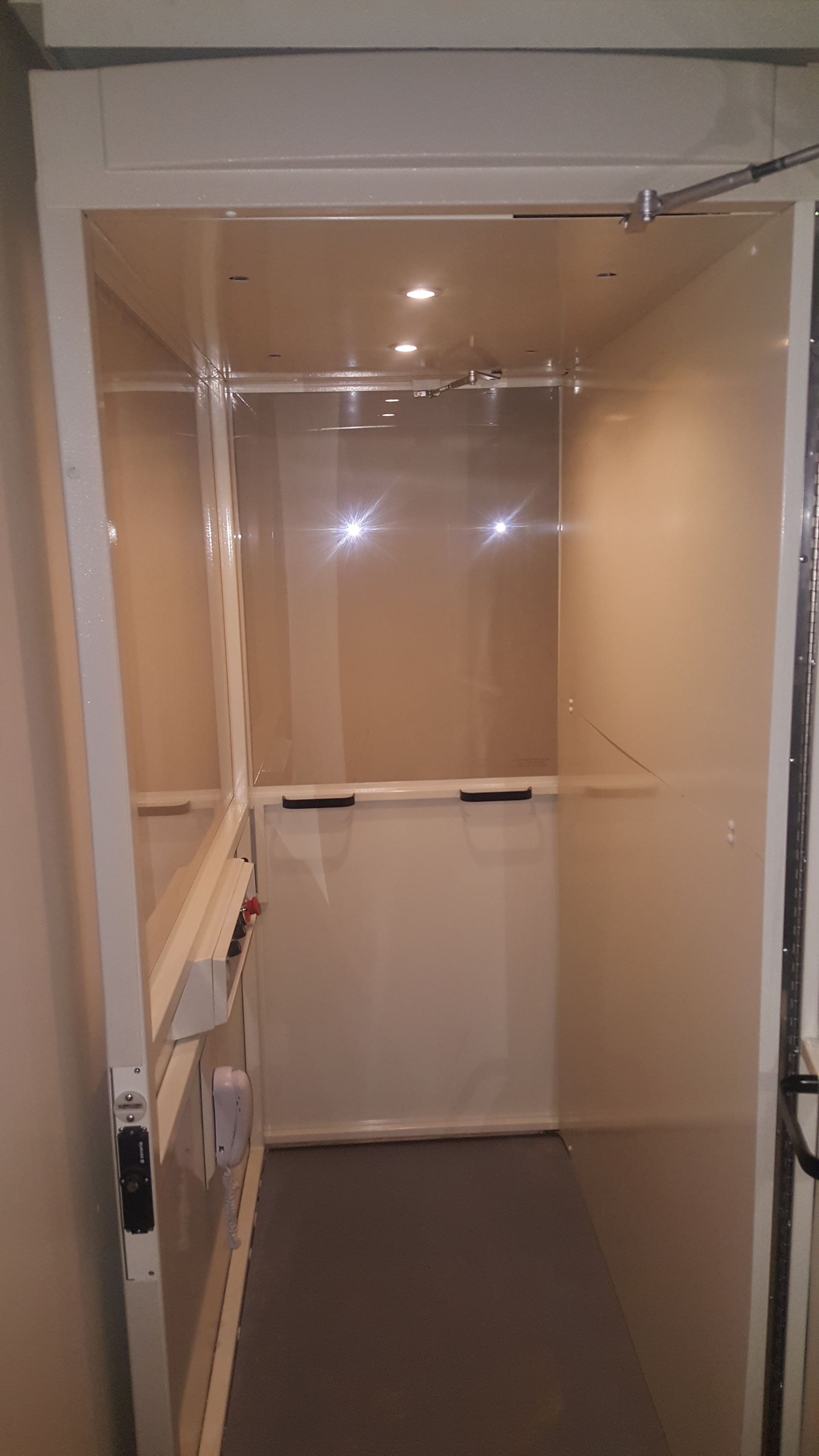

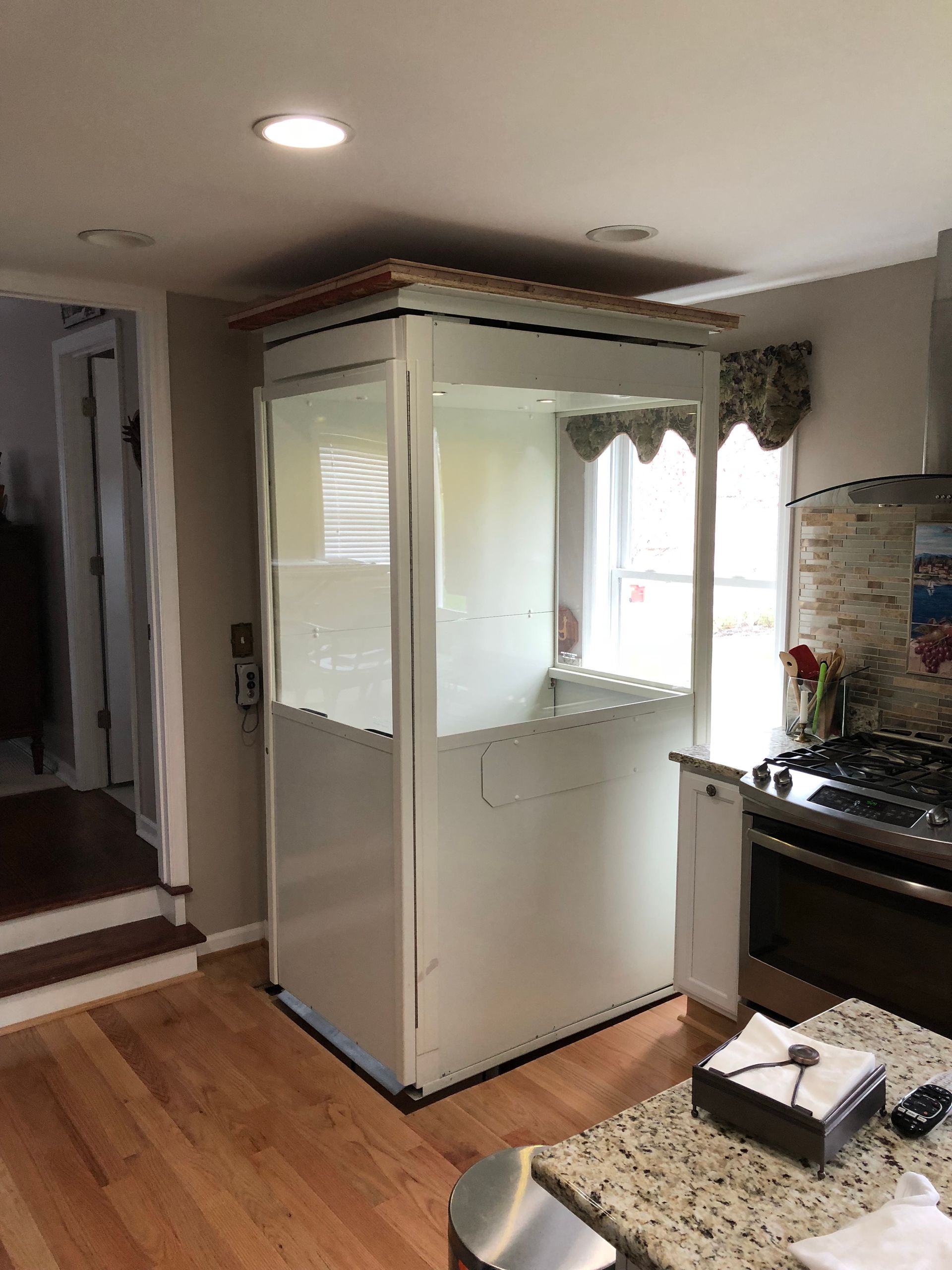

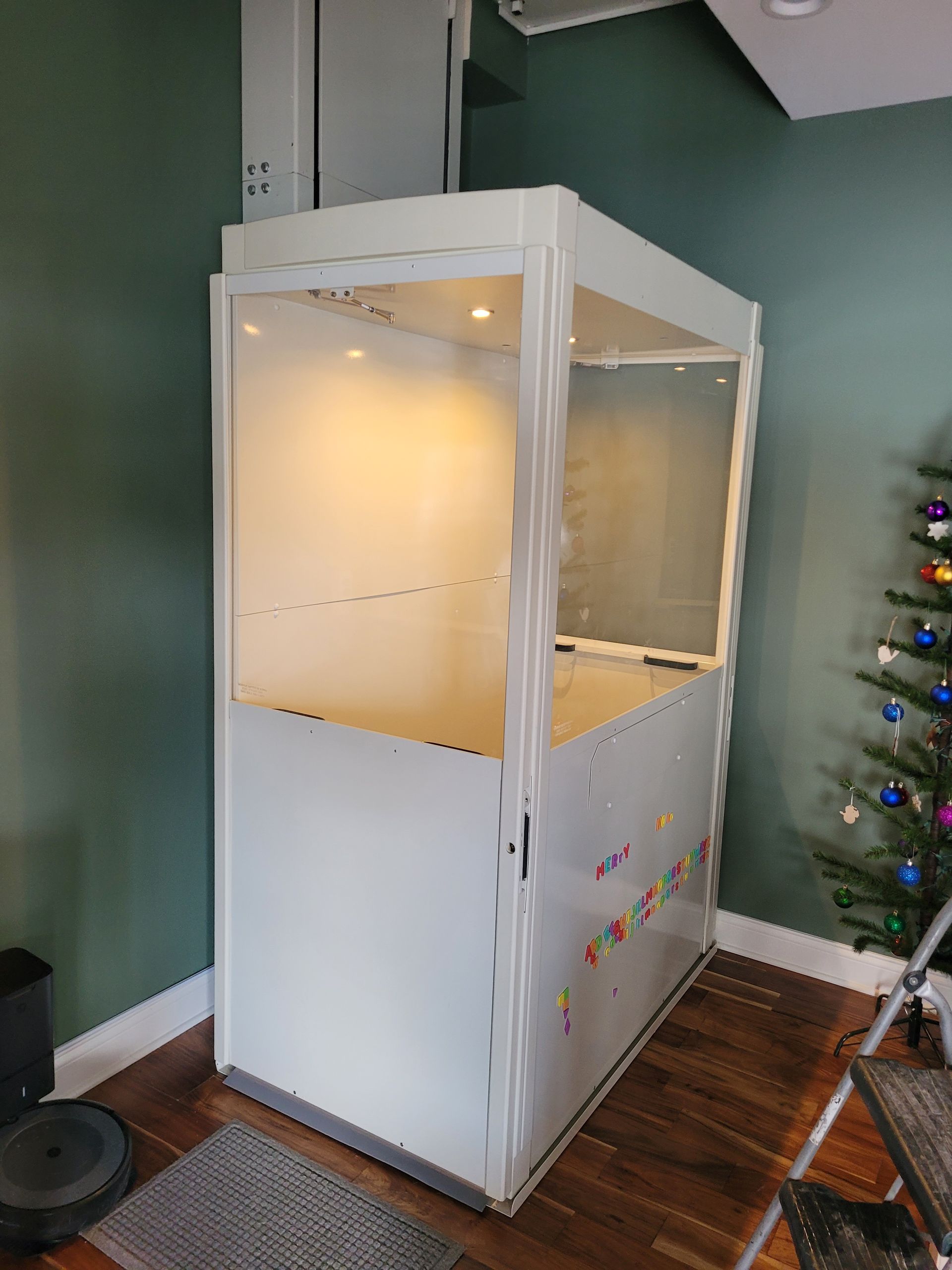

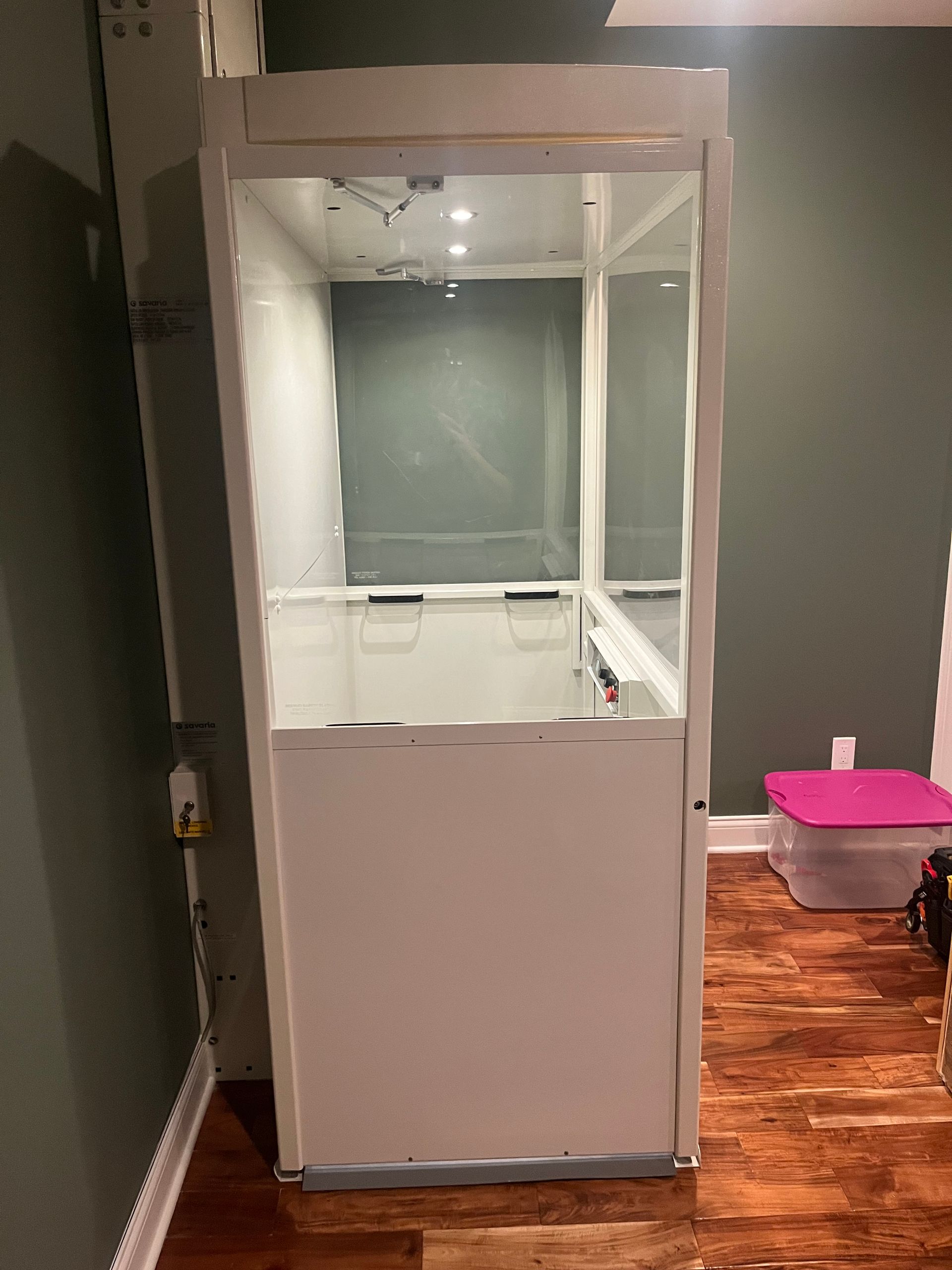

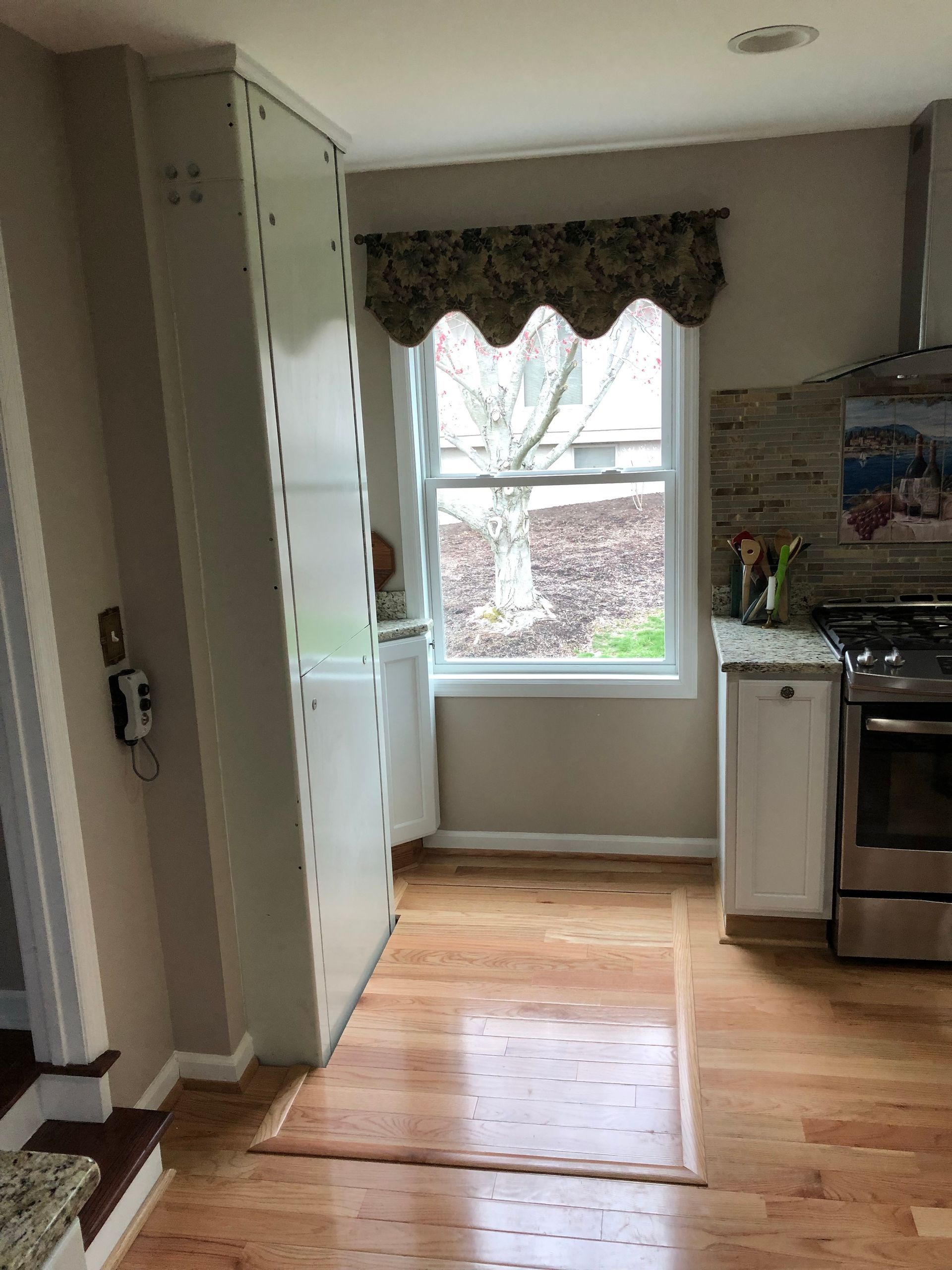

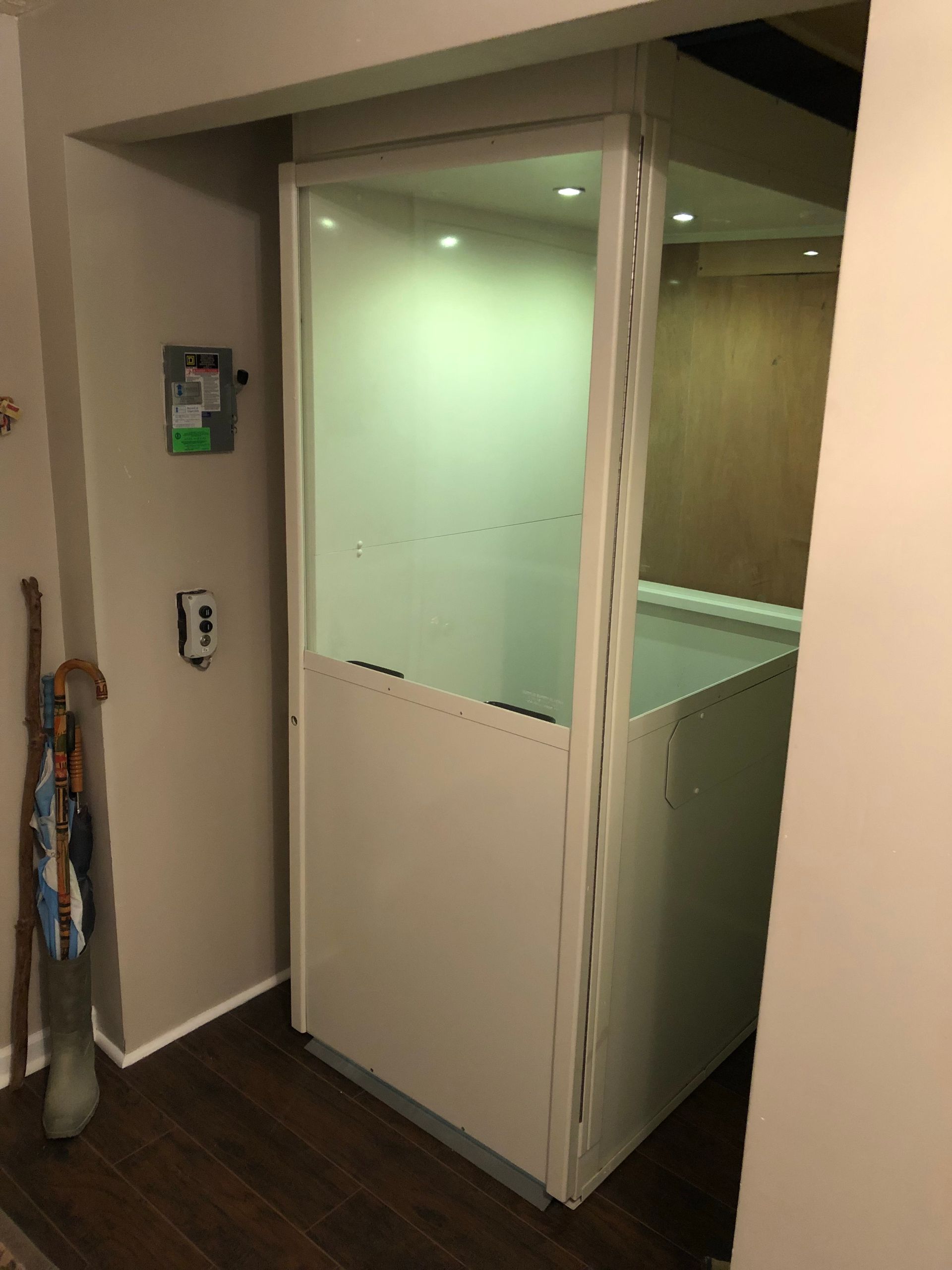

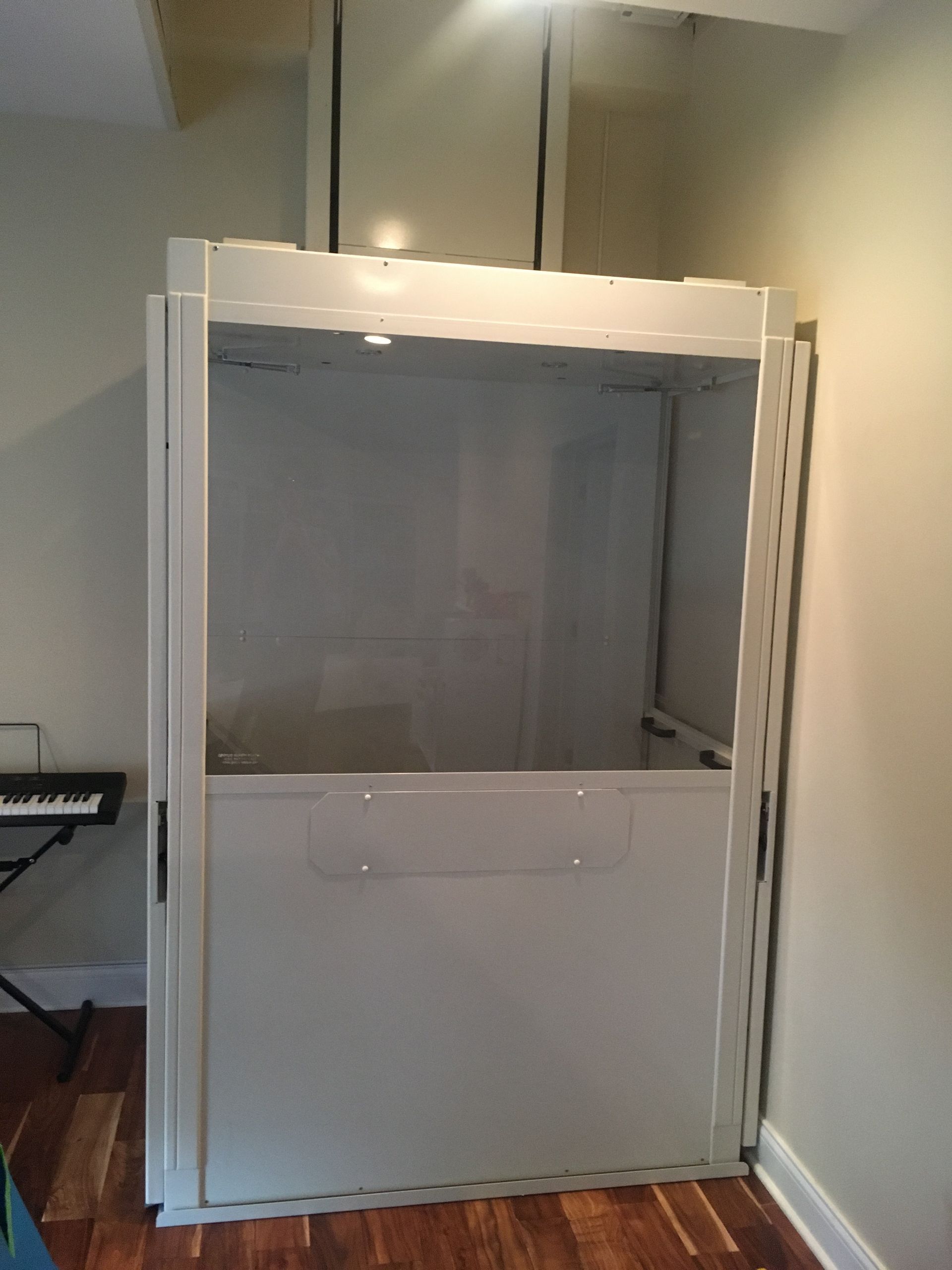

Product Gallery
