Luxury Shaftless Home Lift

MOBILITY MEETS LUXURY

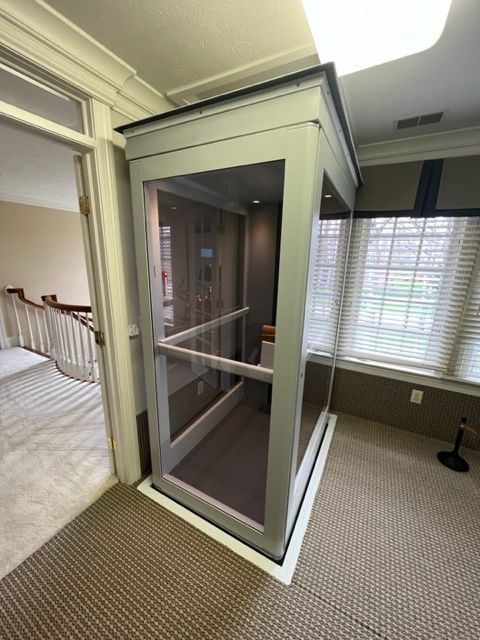

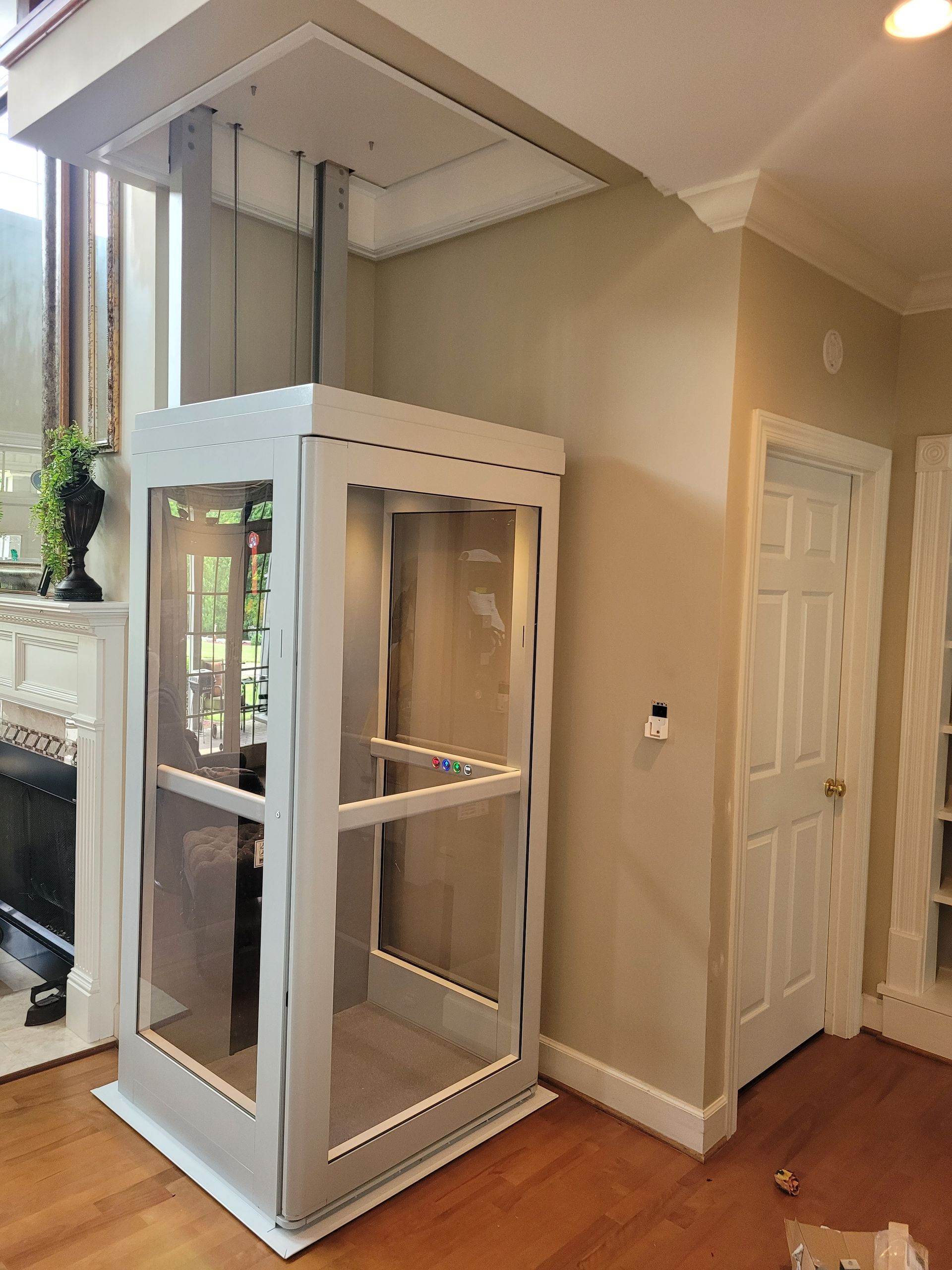

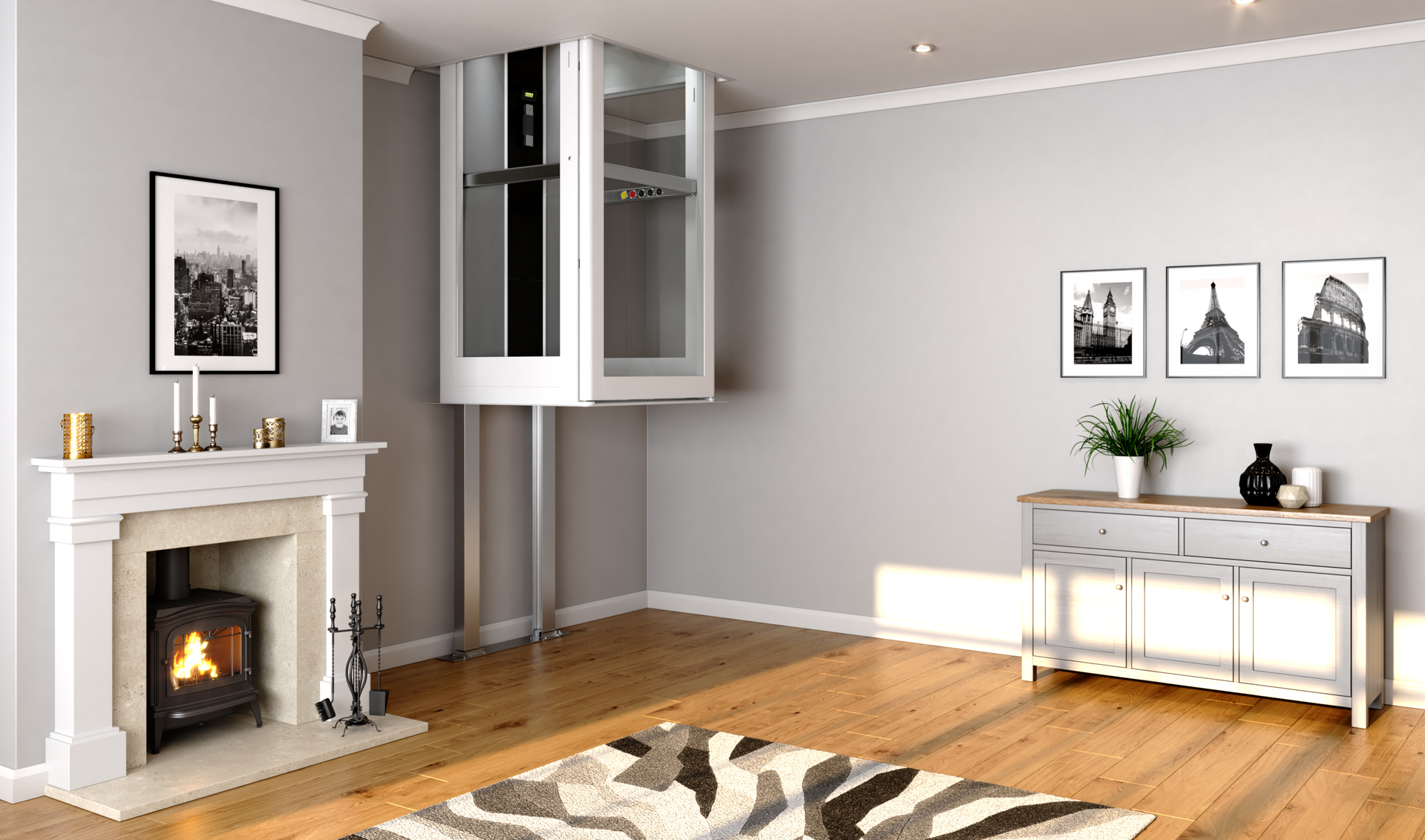

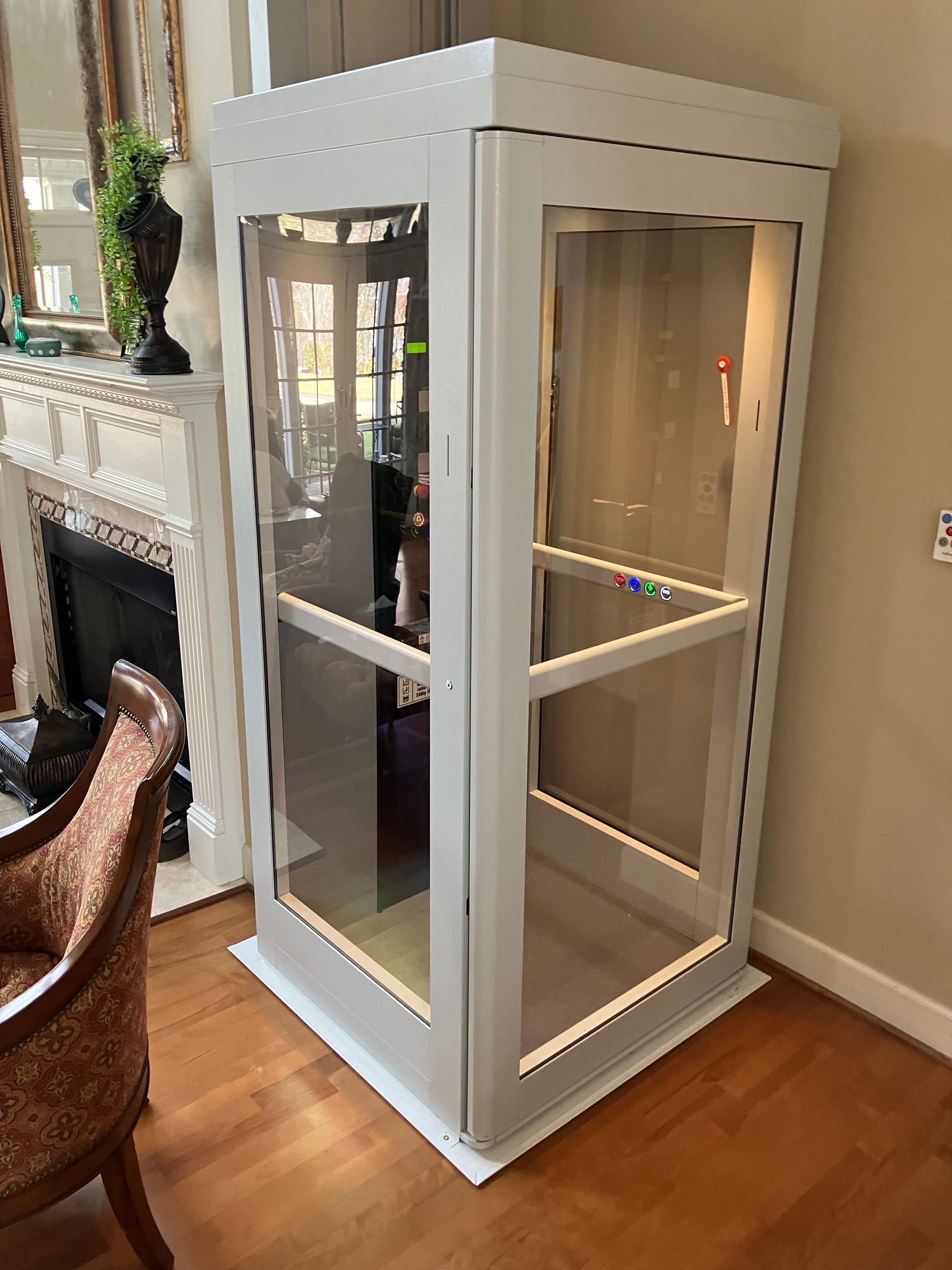

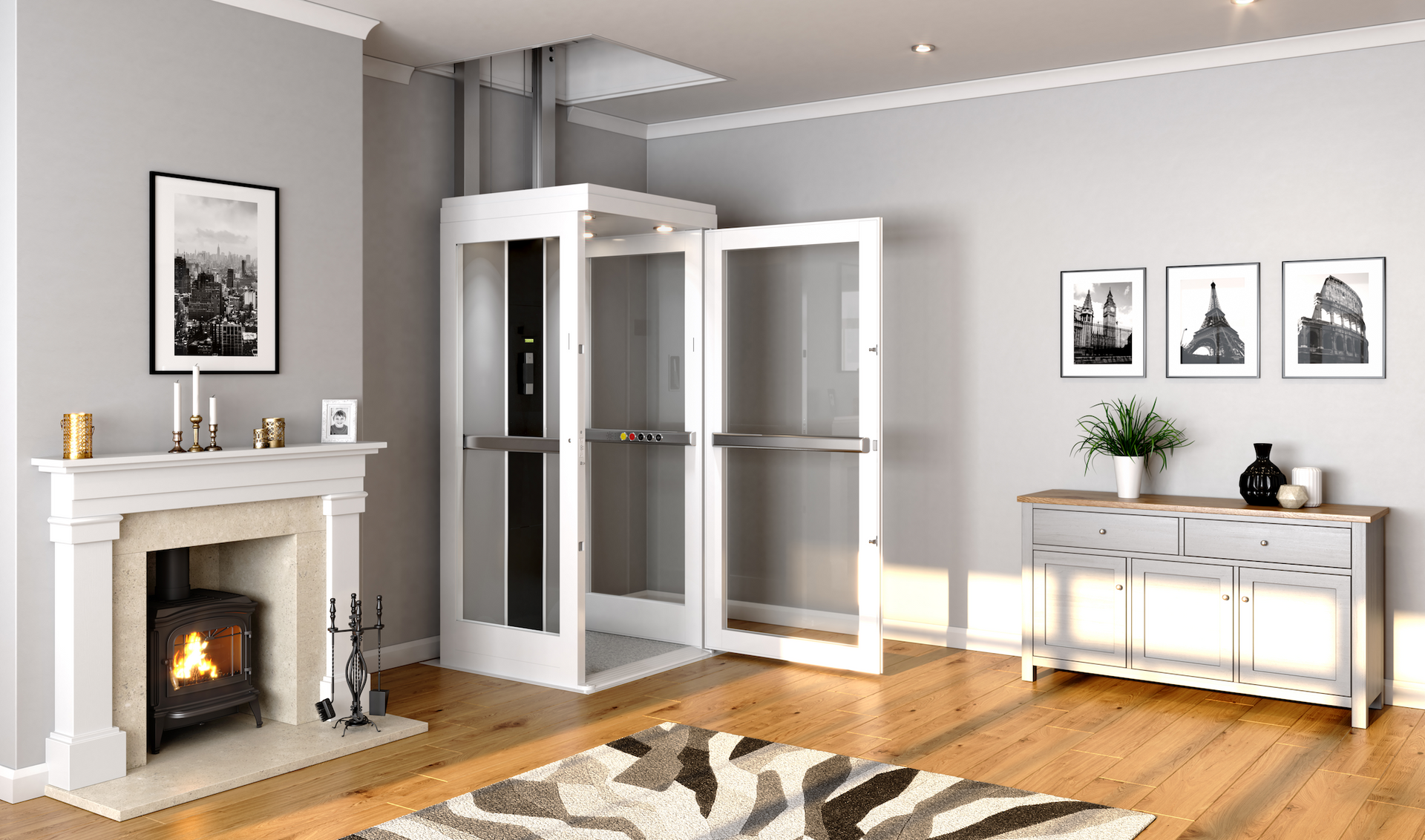

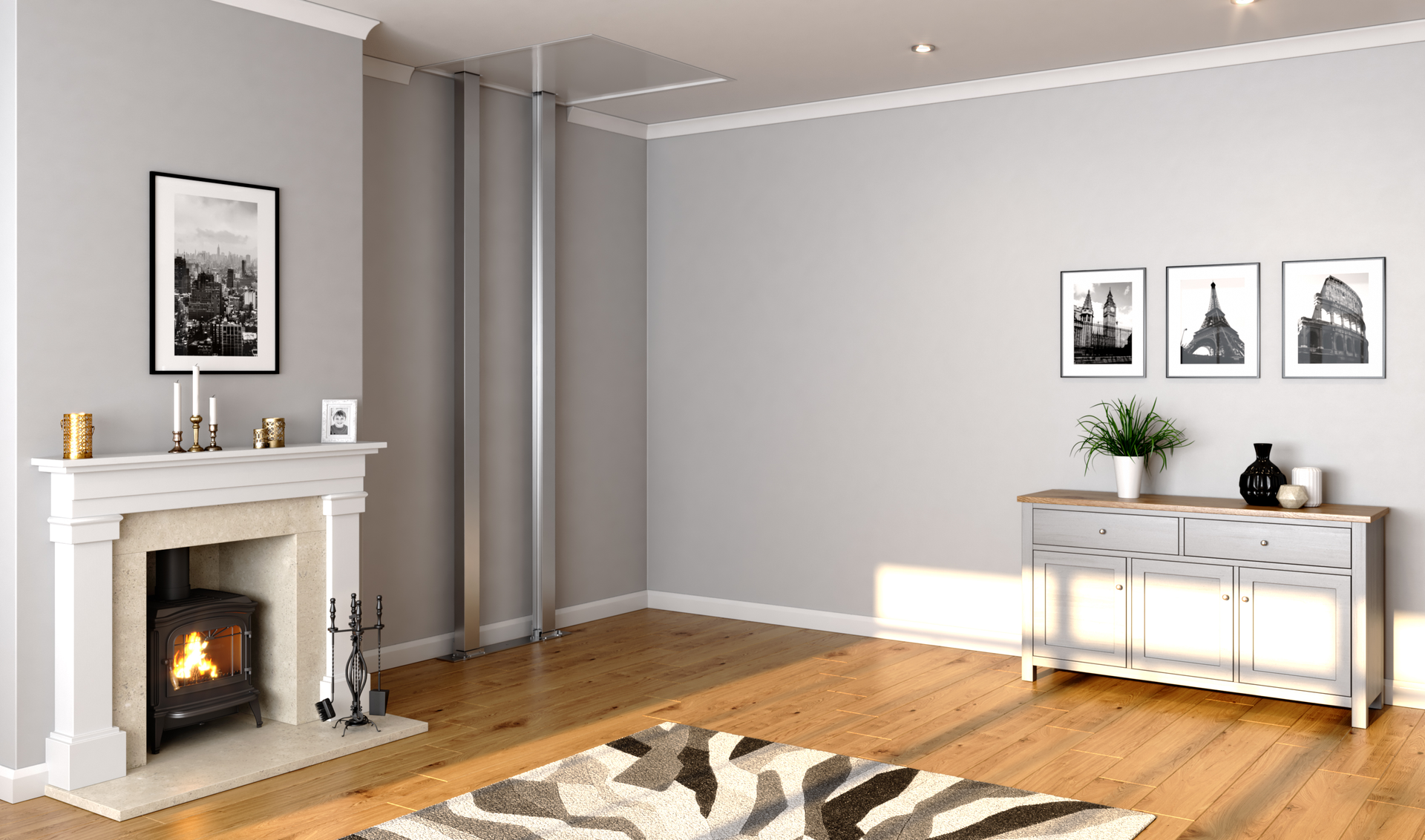

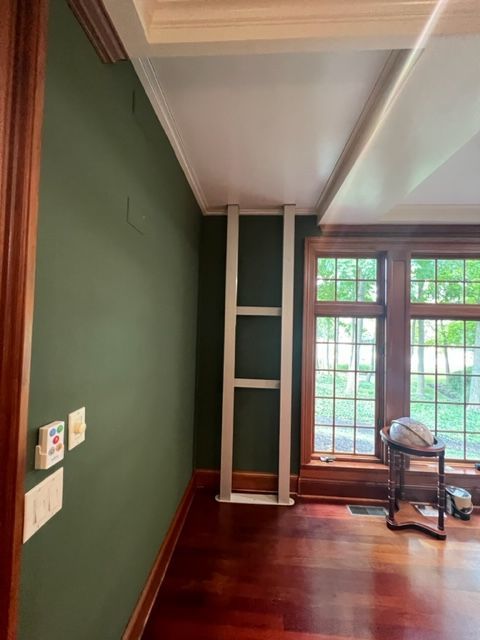

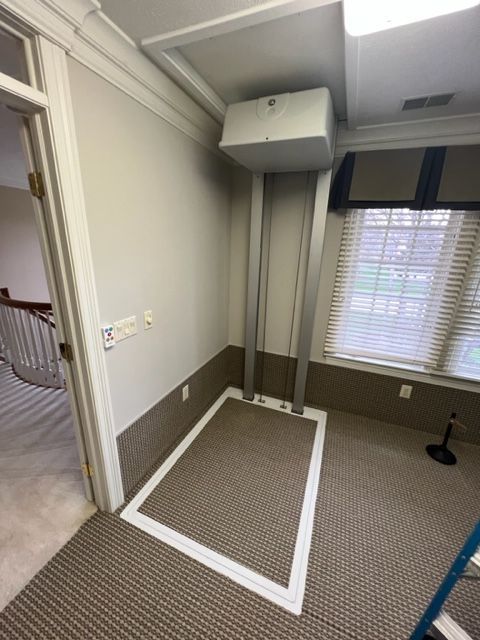

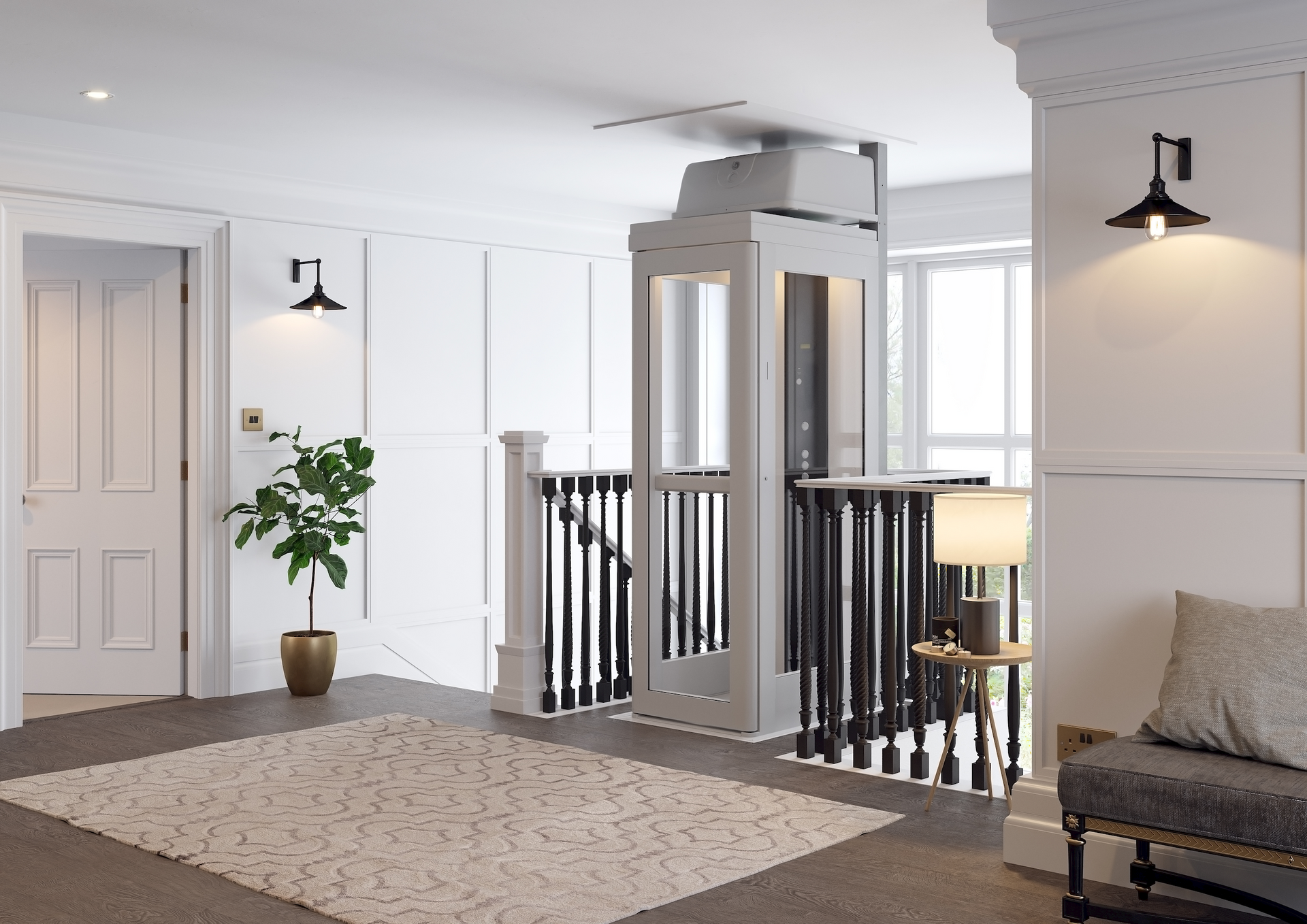

The Connect  is a free-standing home elevator that can be installed nearly anywhere in your home thanks to an independent rail system. Bedroom, kitchen, dining room, closet - can be installed almost anywhere in the home!  While Connect home elevators do not need to be attached to a wall to operate. The Connect comes in three different sizes. Choose the Connect model that matches your individual needs and space: Compact, Classic or XL. Whether one or two people need to travel in the elevator at a time, we have a solution. Take your laundry or pet along for the ride, too!



The Connect offers premium quality with and is a robust, dependable unit. The stylish design features acrylic panels to give an open, modern appearance. The winding drum drive system is exceptionally smooth and quiet from start to finish. Easy one-button operation via in-cab control panel or a wireless remote. Some safety features include: battery back-up to lower the elevator in event of a power outage, an emergency phone, integrated safety door lock and upper/lower safety sensors to provide peace of mind.


Standard Features:

  • Capacity -  500 lb
  • Travel Speed Up to 16 fpm
  • Travel Height Maximum: 13’
  • Power Supply Single phase 110V 60Hz
  • Battery back-up to lower in event of power outage.
  • Cabin Size:

          -Compact:  21.25” W x 29.50” D x 74.75” H

          -Classic: 33.50” W x 29.50” D x 74.75” H

          -XL:  33.50” W x 49.25” D x 74.75” H

  • Manual Door - Front opening side only

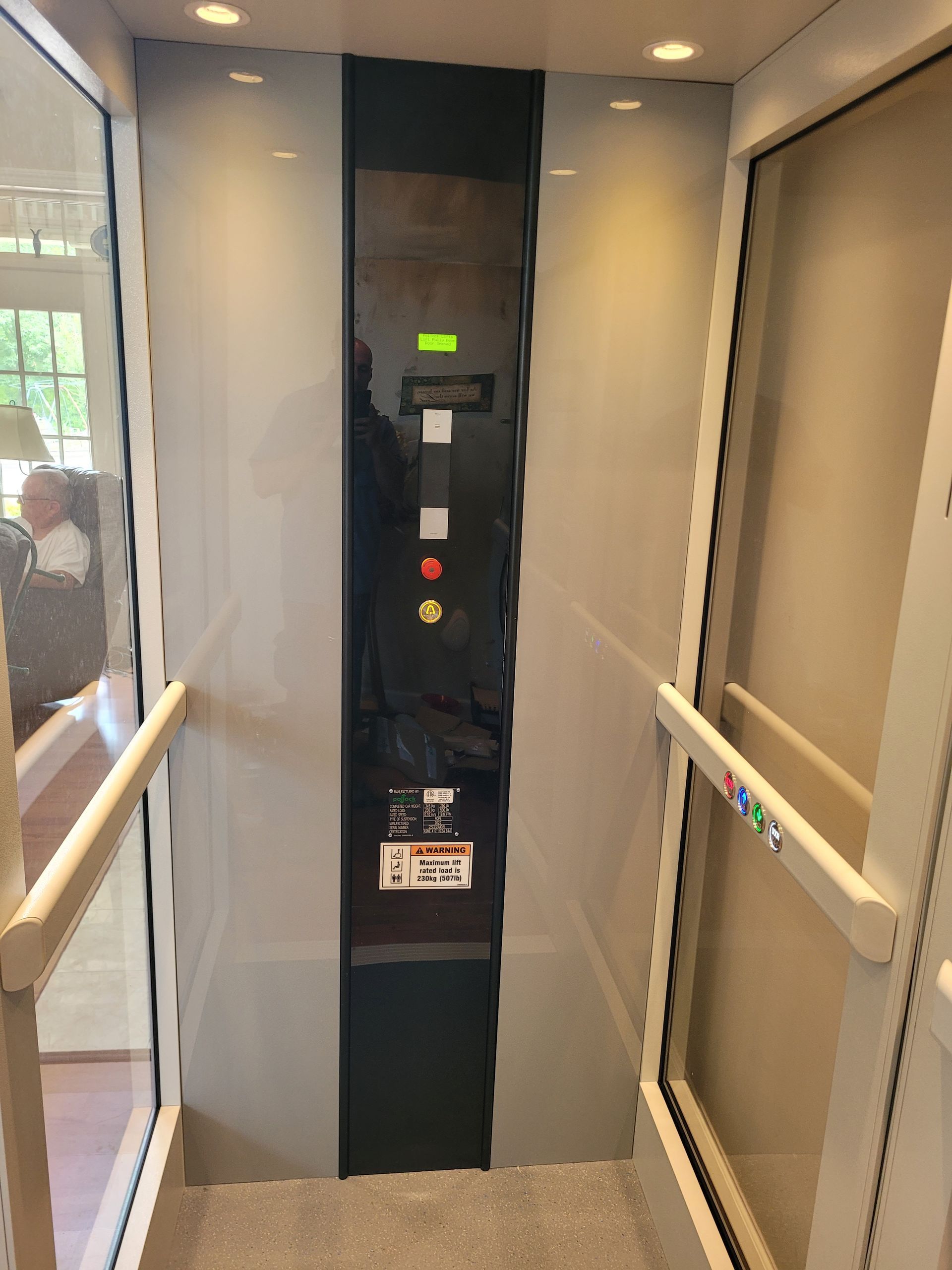

  • Car Operating Panel - Up/down buttons, emergency stop and alarm
  • Slimline Phone

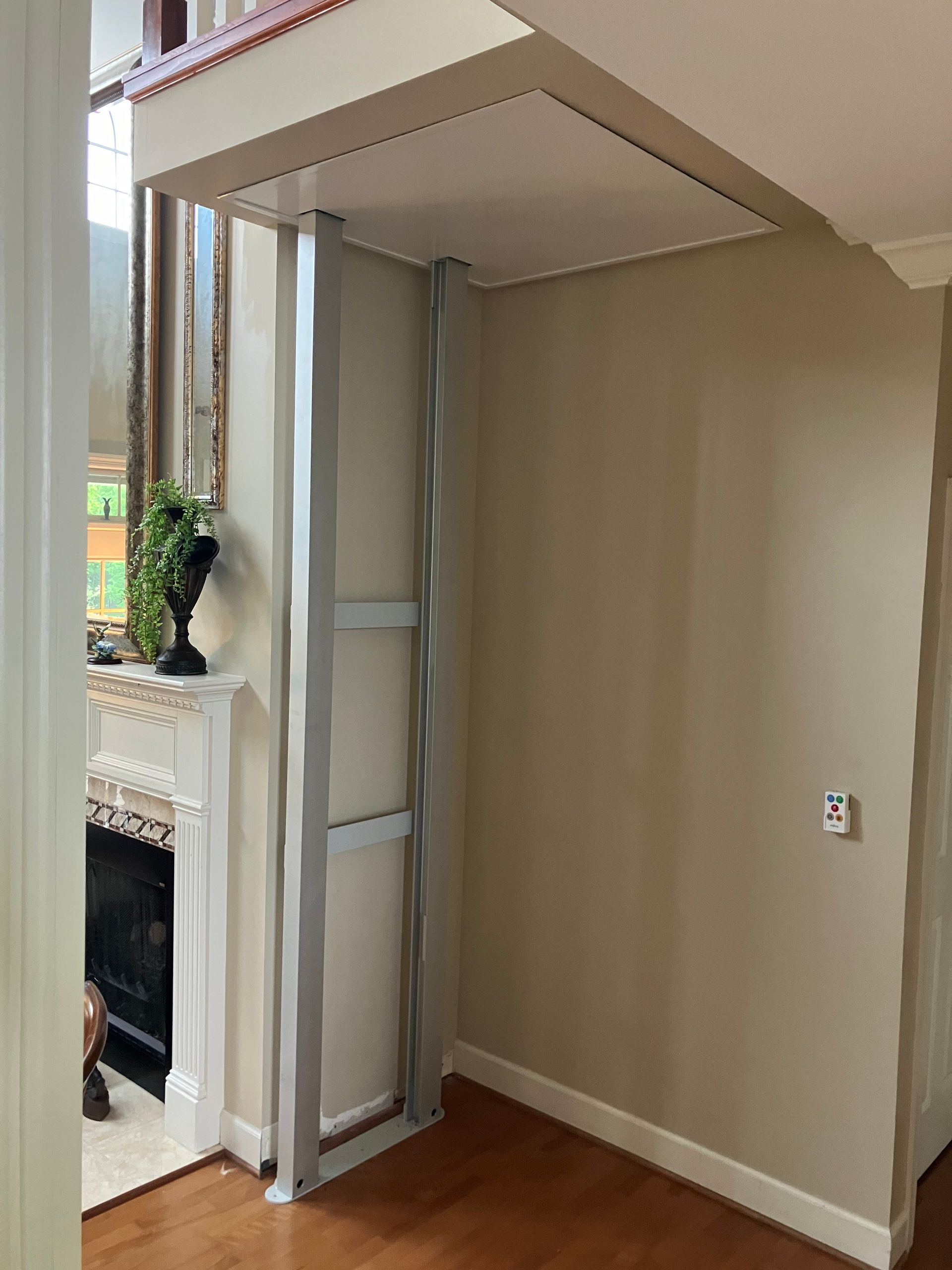

  • Landing controls - Wall mounted wireless remotes with up/down buttons

Options:

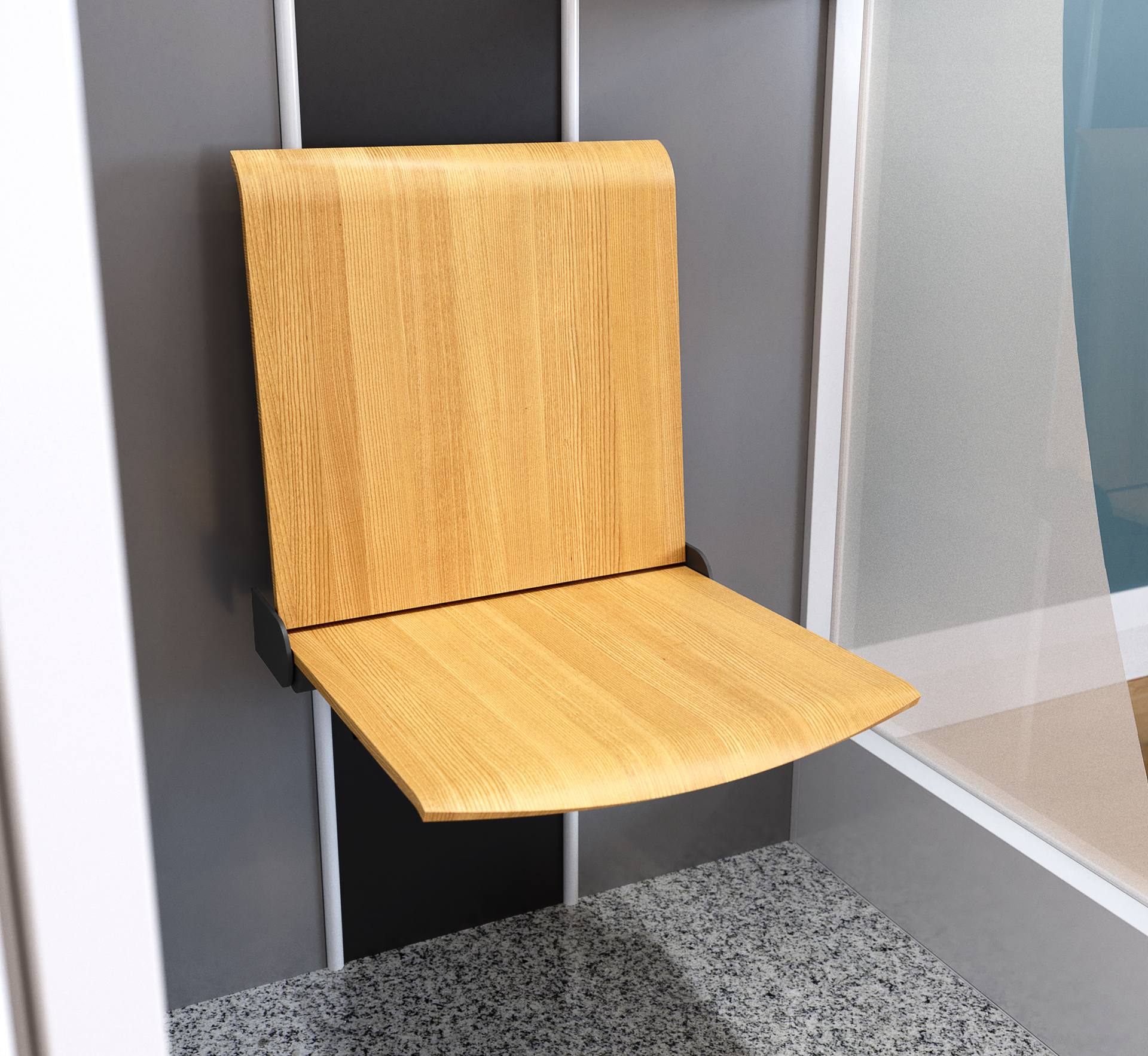

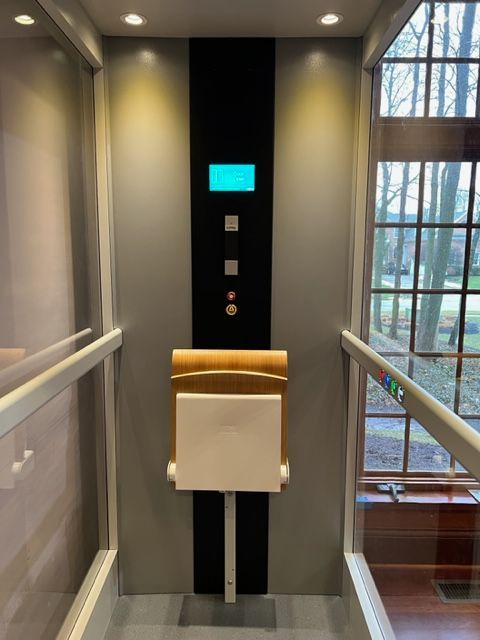

  • Built-in Seat
  • Standard Handrail for stability
  • Upgraded Handrail with Integrated Controls to enhance ease of operation
  • Automatic Power Door Opener for easy / independent entry and exit.

Installation

Professional Measure + Installation available in the following areas:


Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.
