PVE52 - Three Person
By: Pneumatic Vacuum Elevators
Pneumatic Vacuum Elevators
PVE52 - Three Person
Wheelchair Access Driven by Air!
The largest vacuum elevator available, the PVE52 is the perfect choice for those in need of wheelchair access. This three-passenger residential elevator offers everything you need and takes up less space in your home than traditional elevators. The PVE52 does not need a separate space for machinery or additional room above and below the lift for a pit, the lift is a self supported structure with through-the-floor or balcony mount options.
Safety features include: Automatic descent to ground level in the event of power failure. Mechanical emergency brakes engage within two inches of freefall in vacuum loss or catastrophic failure.
Electromechanical interlocks at each landing, alarm system & telephone
Standard Features:
- Capacity - 525 lb.
- Standard Color - Black
- Travel Speed 35 fpm
- Travel Height - 50’ maximum travel between floors with up to 5 stops
- Power Supply - 220-240V, single phase, 40 amp
- 6 Turbine motors located in the pump box using a total of 7 kW
- External Cylinder Diameter - 52 11/16”
- Internal Cabin - 44” Diameter x 79” H
- Entrance Opening - 32”
- Through-Floor Penetration Required - 54 11/16”
- Minimum Floor to Floor Clearance - 92”
- Minimum Floor to Ceiling Clearance - 81”
- Minimum Overhead Clearance:
-Standard Head Unit Machinery - 107”
-Split-Unit Remote Machinery - 97”
- Automatic LED Lighting and Cabin Fan
- Push Button Call Controls with Precise Leveling At Each Landing
- Each Landing will only have one door.
- All doors Same-Side (In-Line) and hinged on Top Left from Inside Cabin
Options:
- Split Unit
- Balcony Mount
- Flip up Seat
- Door Openings - Opposite Side (Pass-Through), 90 degree Openings
- Color Options - Dark Gray, White, Taupe, Silver, Light Gray
- Custom Clear Panels, Custom Door Hinge,Smart Home Integration,Homing Feature,
- Remote Control,Cabin Key Lock and more
Installation
Professional Measure + Installation available in the following areas:
Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.

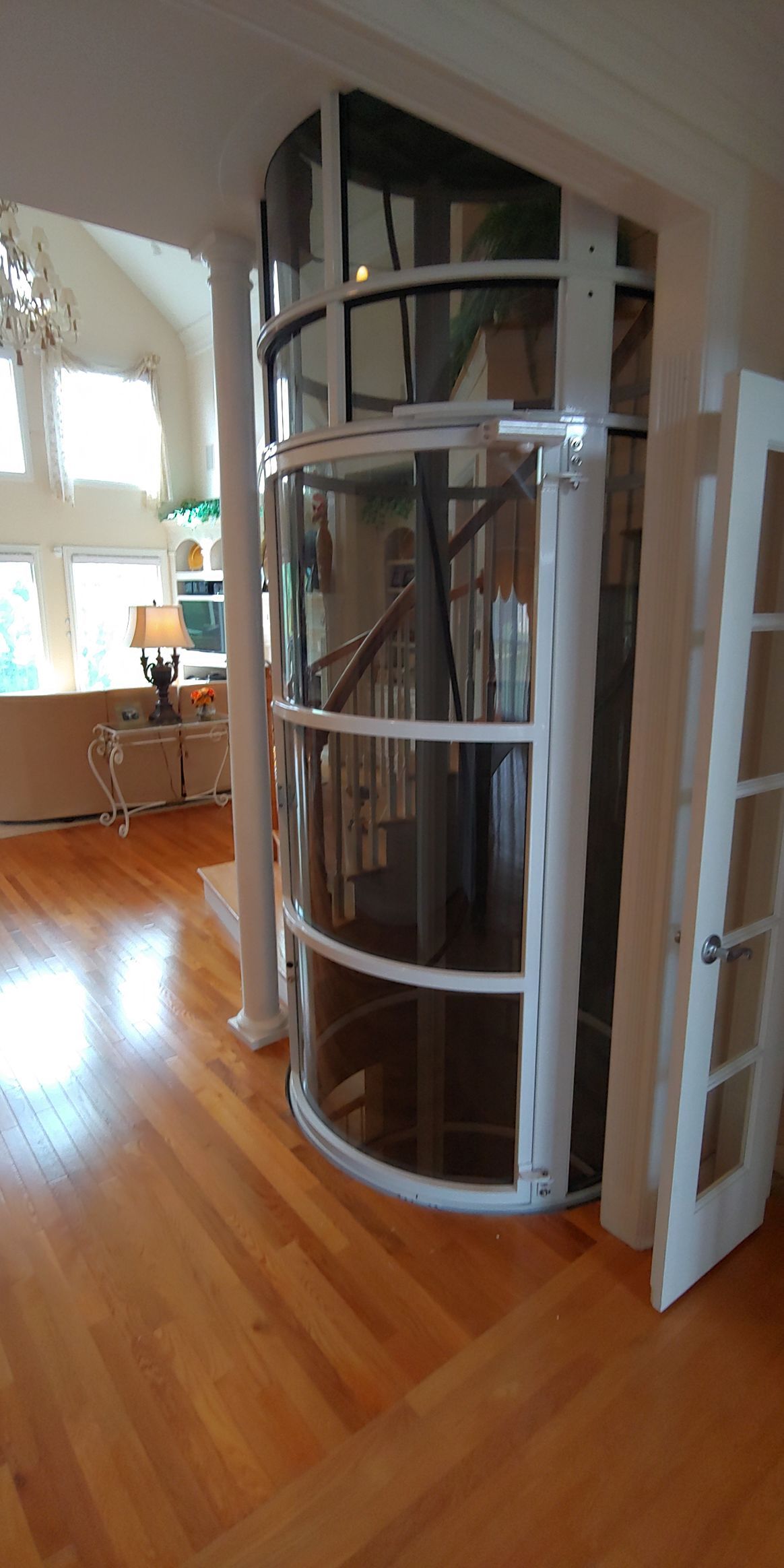

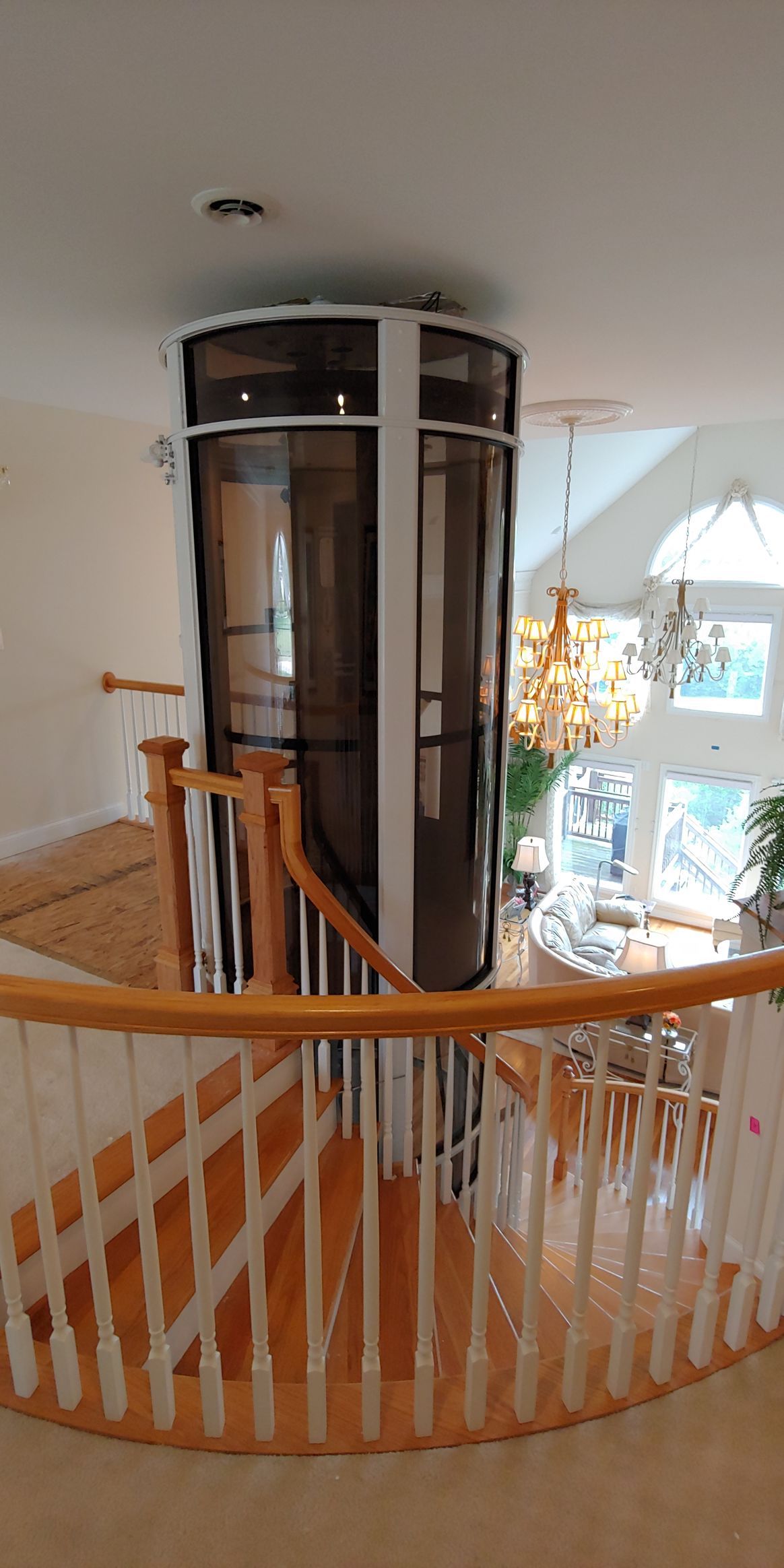

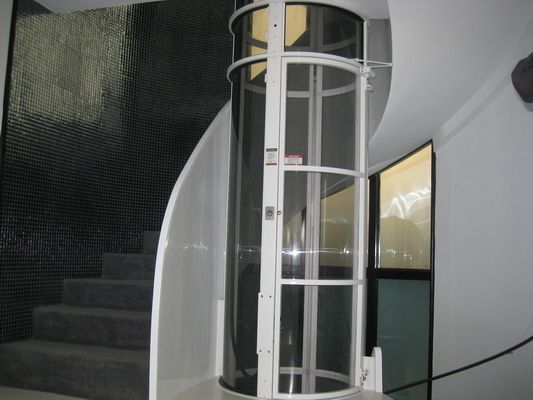

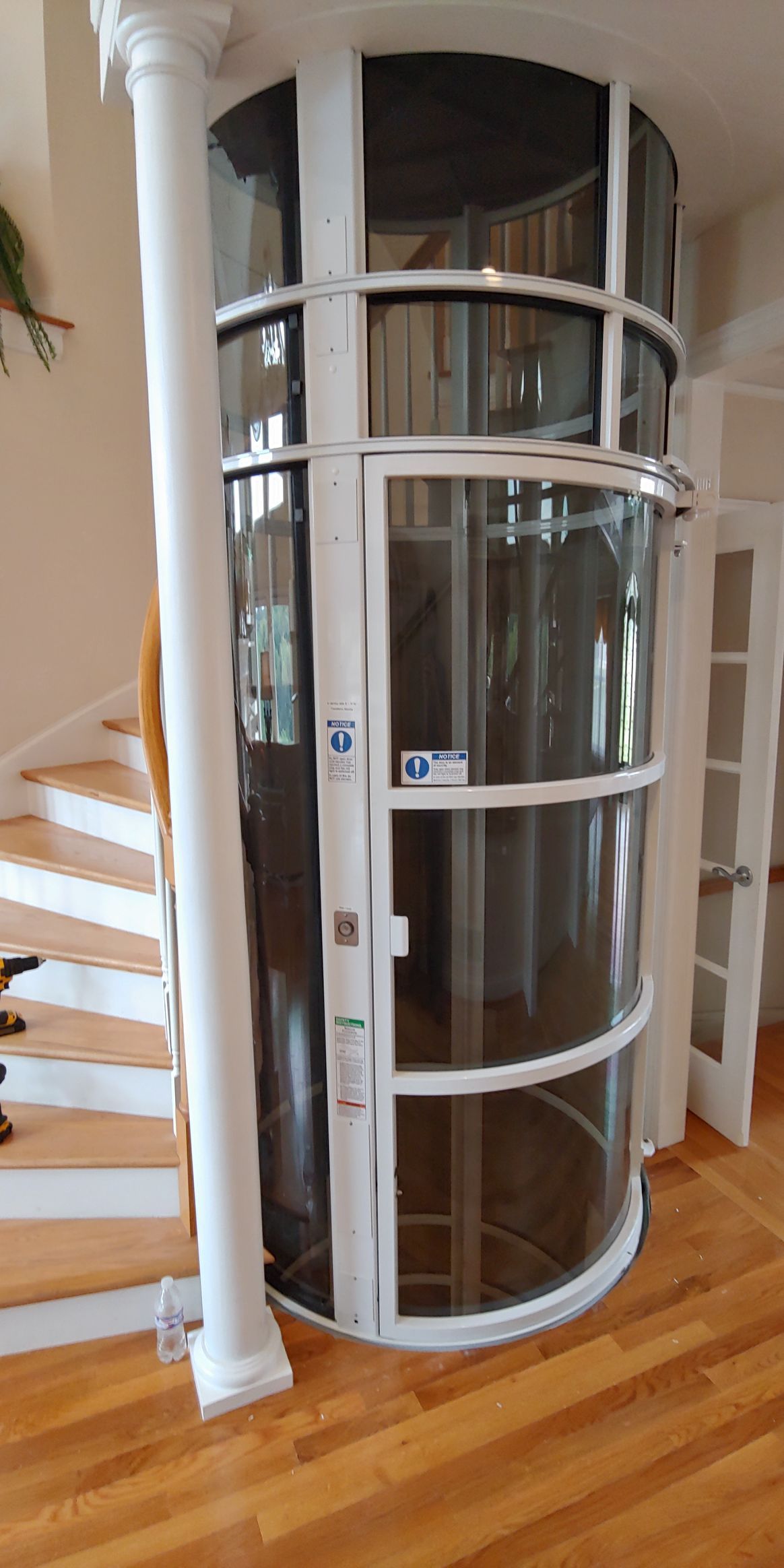

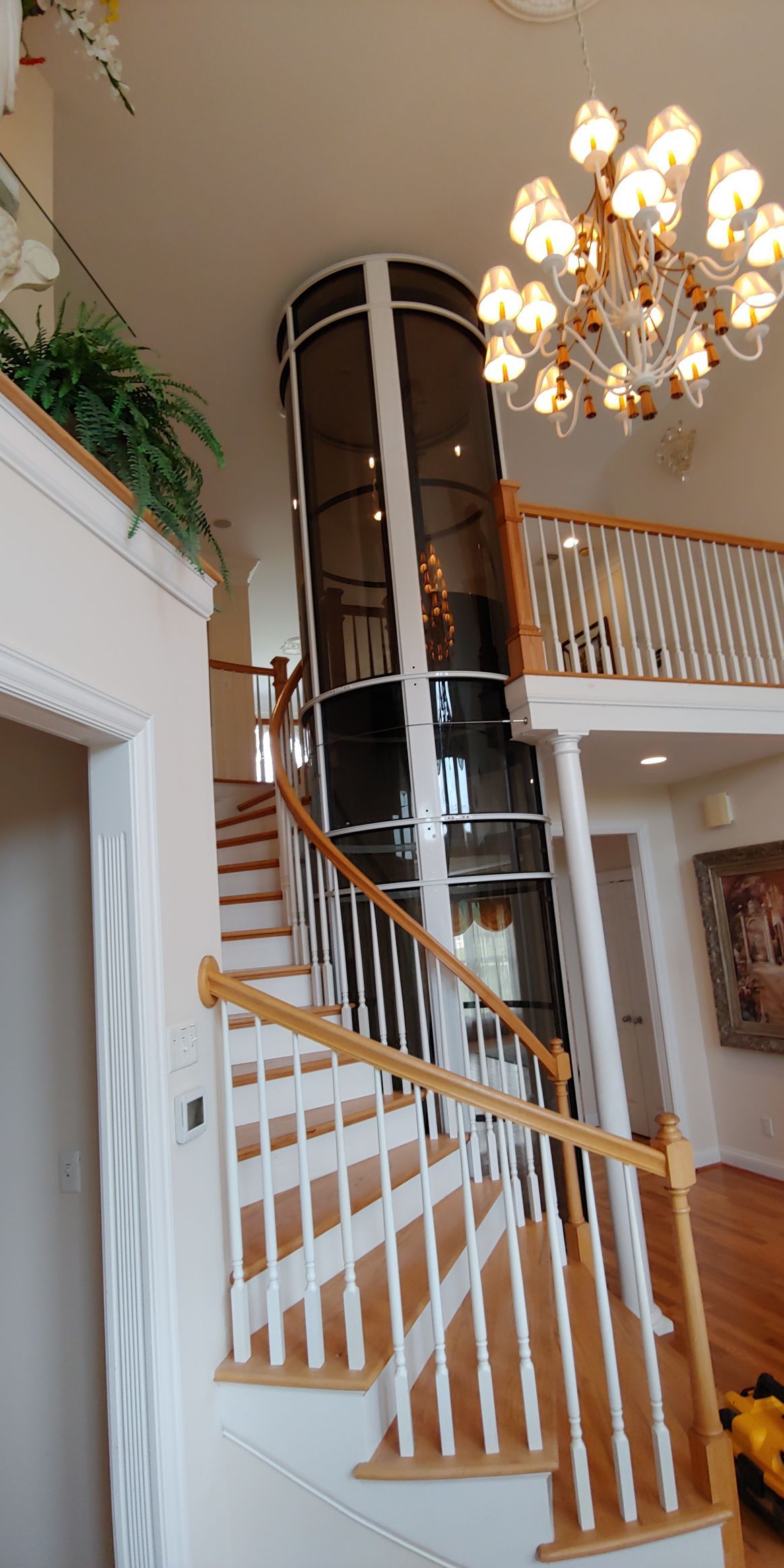

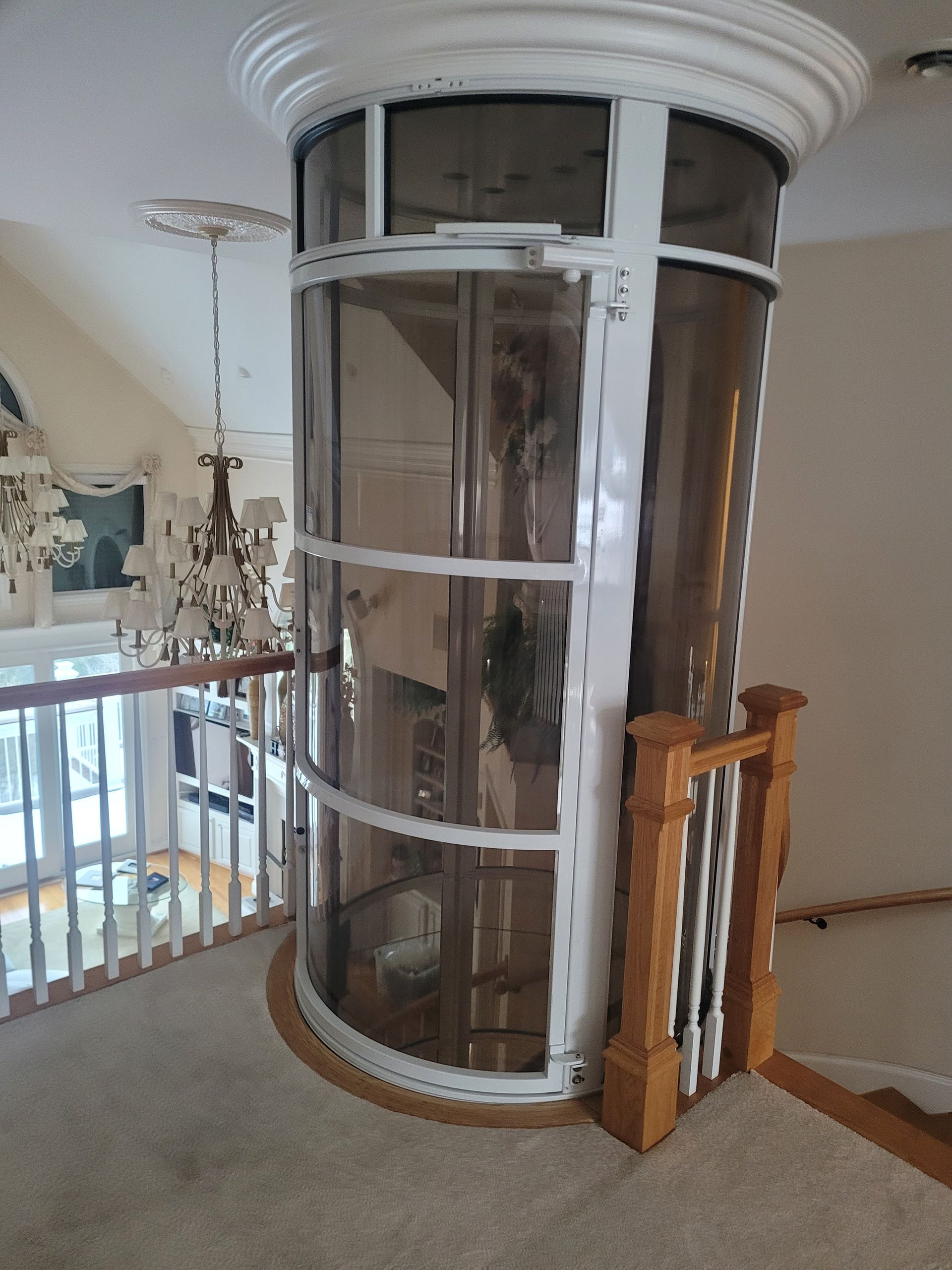

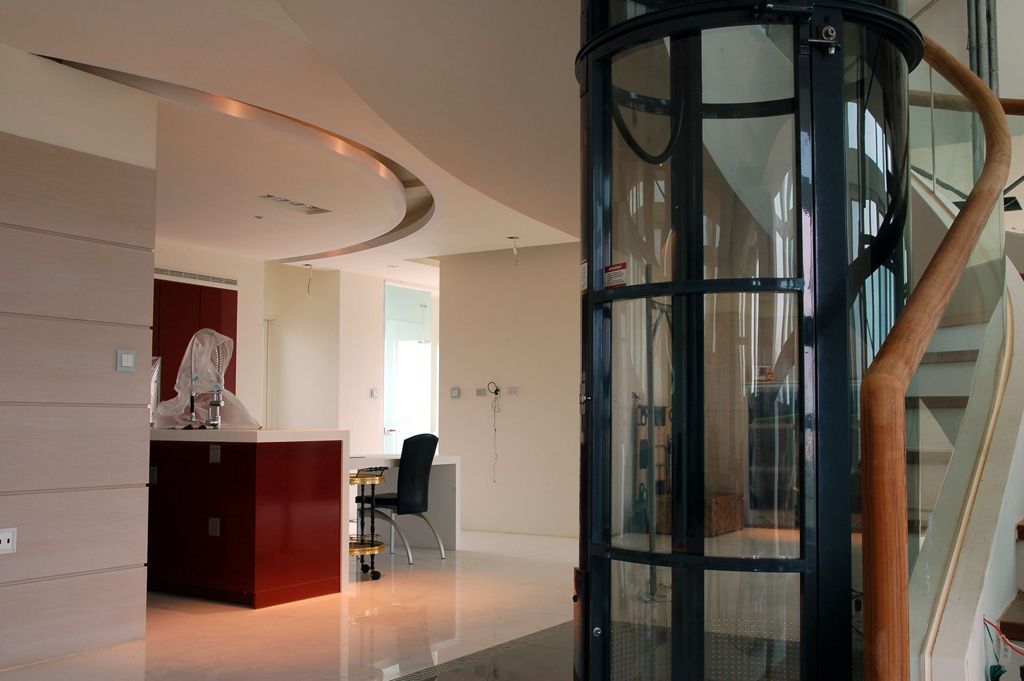

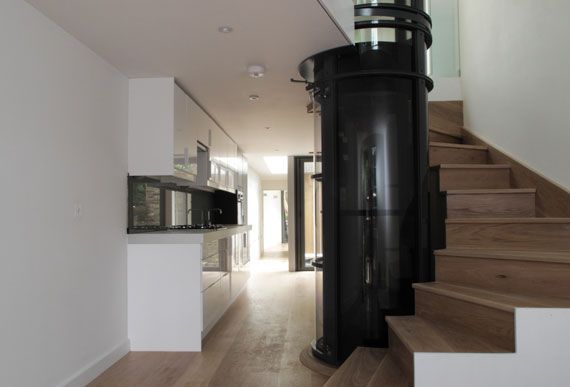

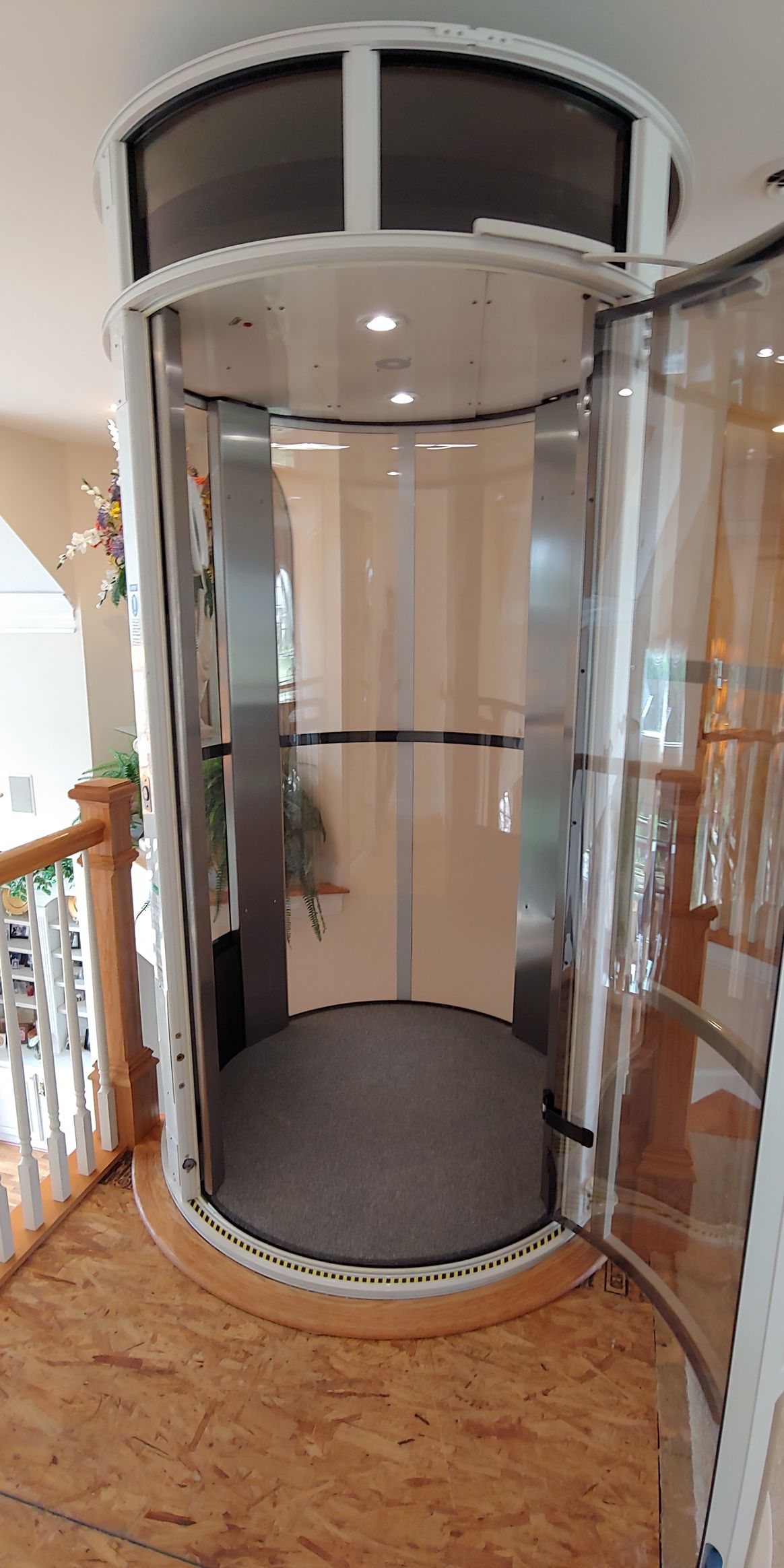

Product Gallery
