PVE37 - Two Person

By: Pneumatic Vacuum Elevators

Pneumatic Vacuum Elevators

PVE37 - Two Person

THE ORIGINAL VACUUM ELEVATOR

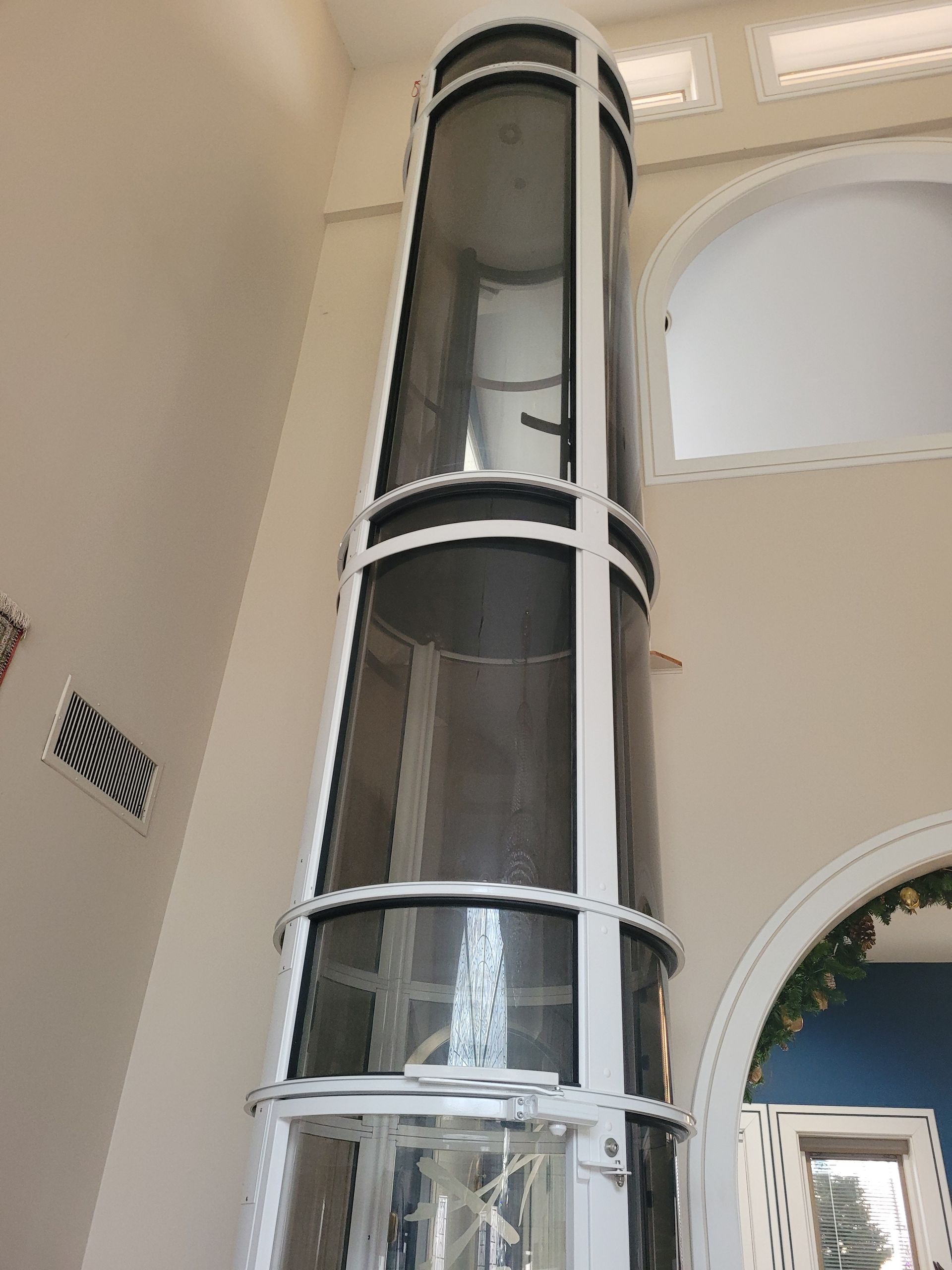

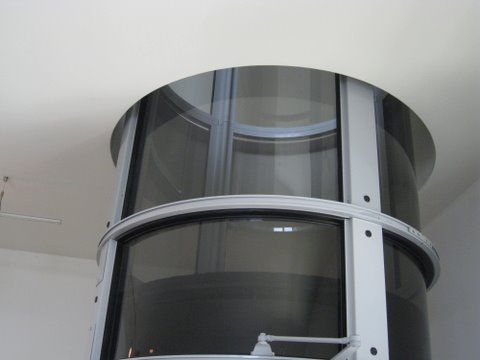

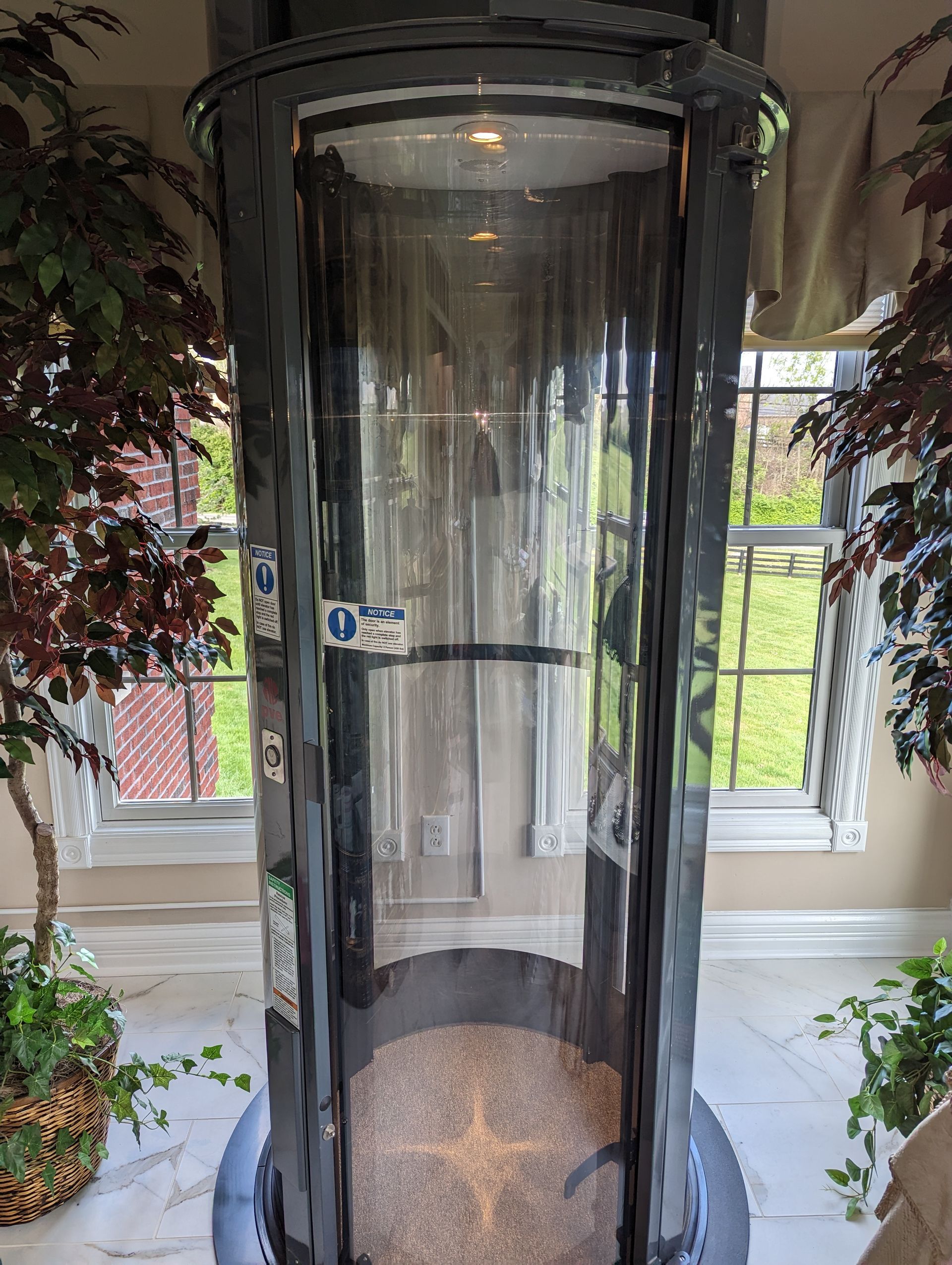

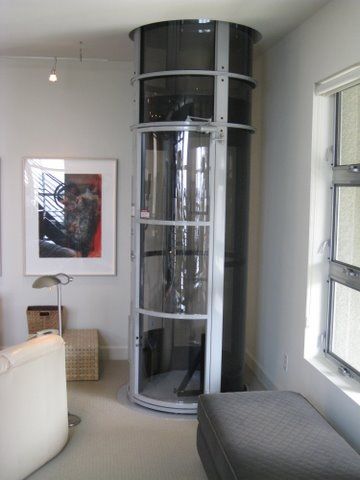

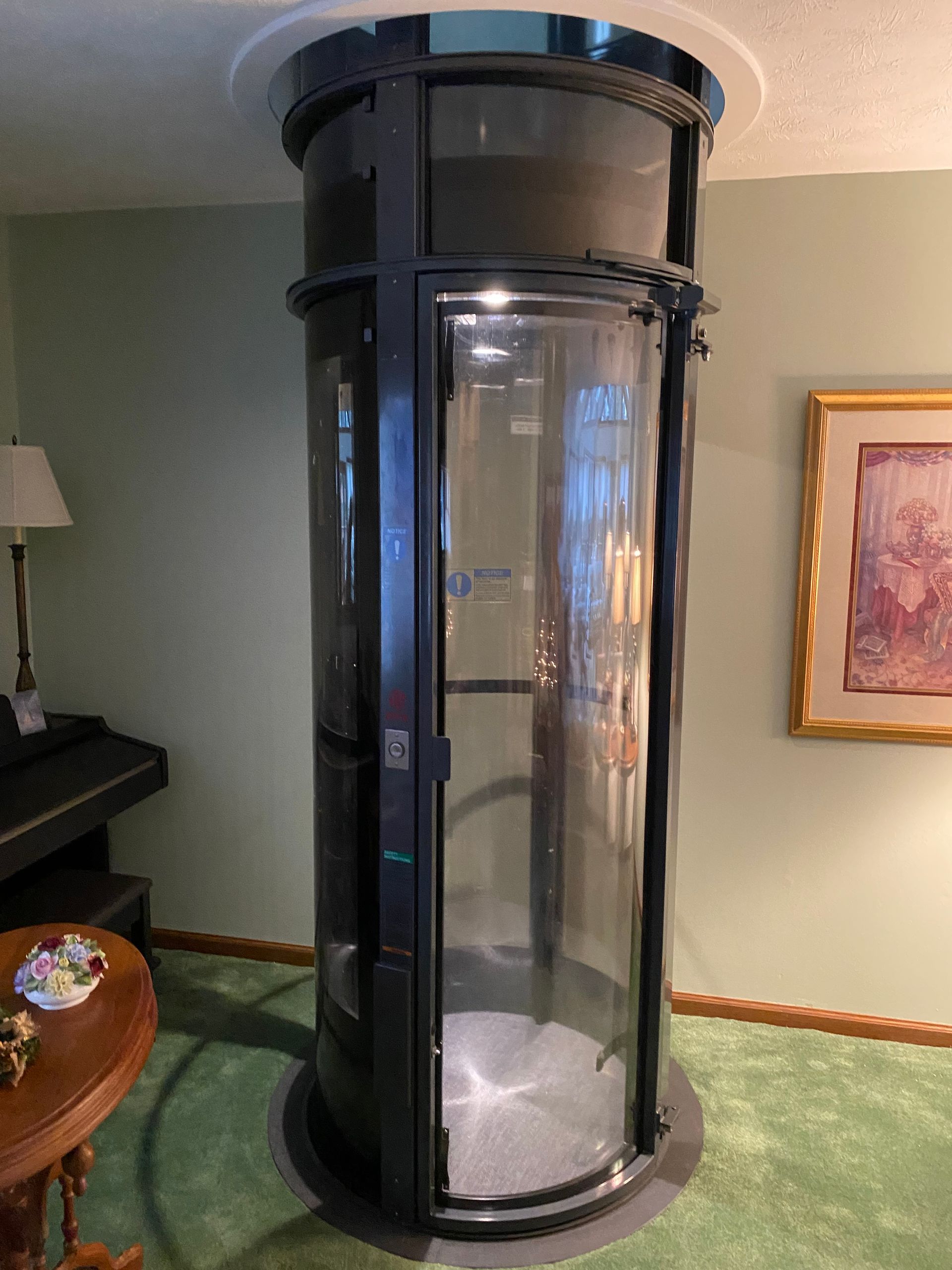

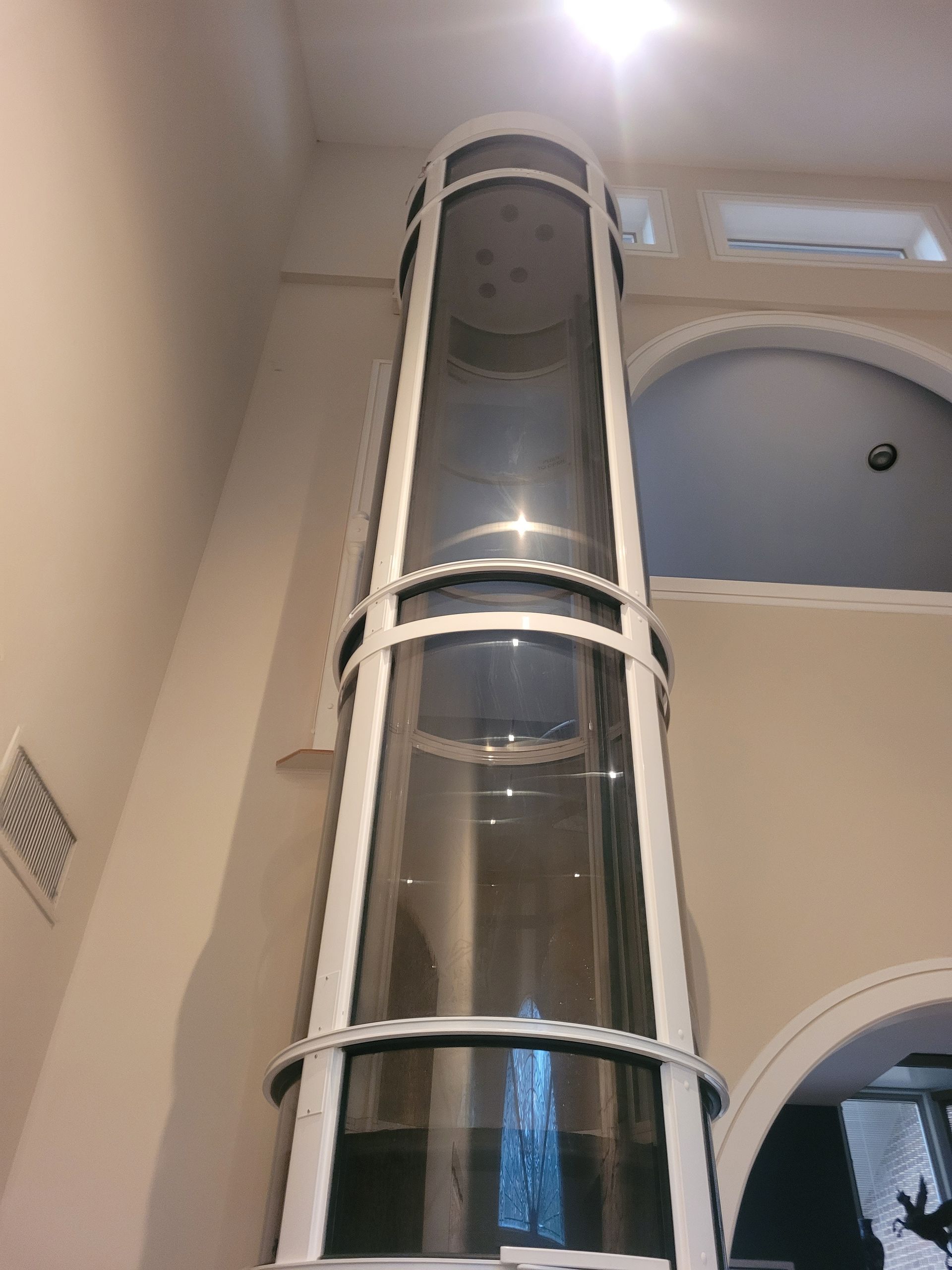

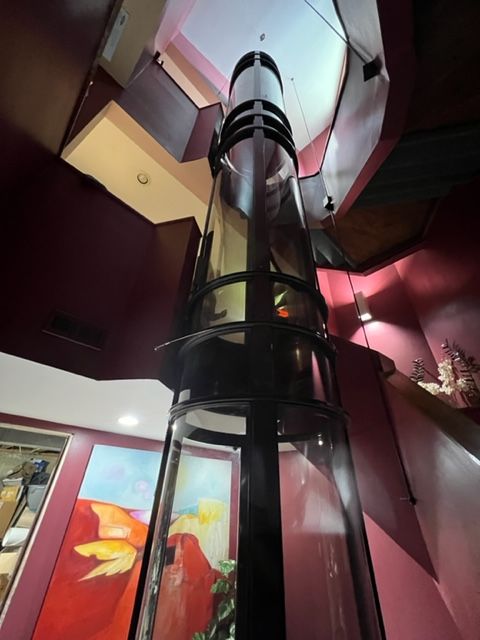

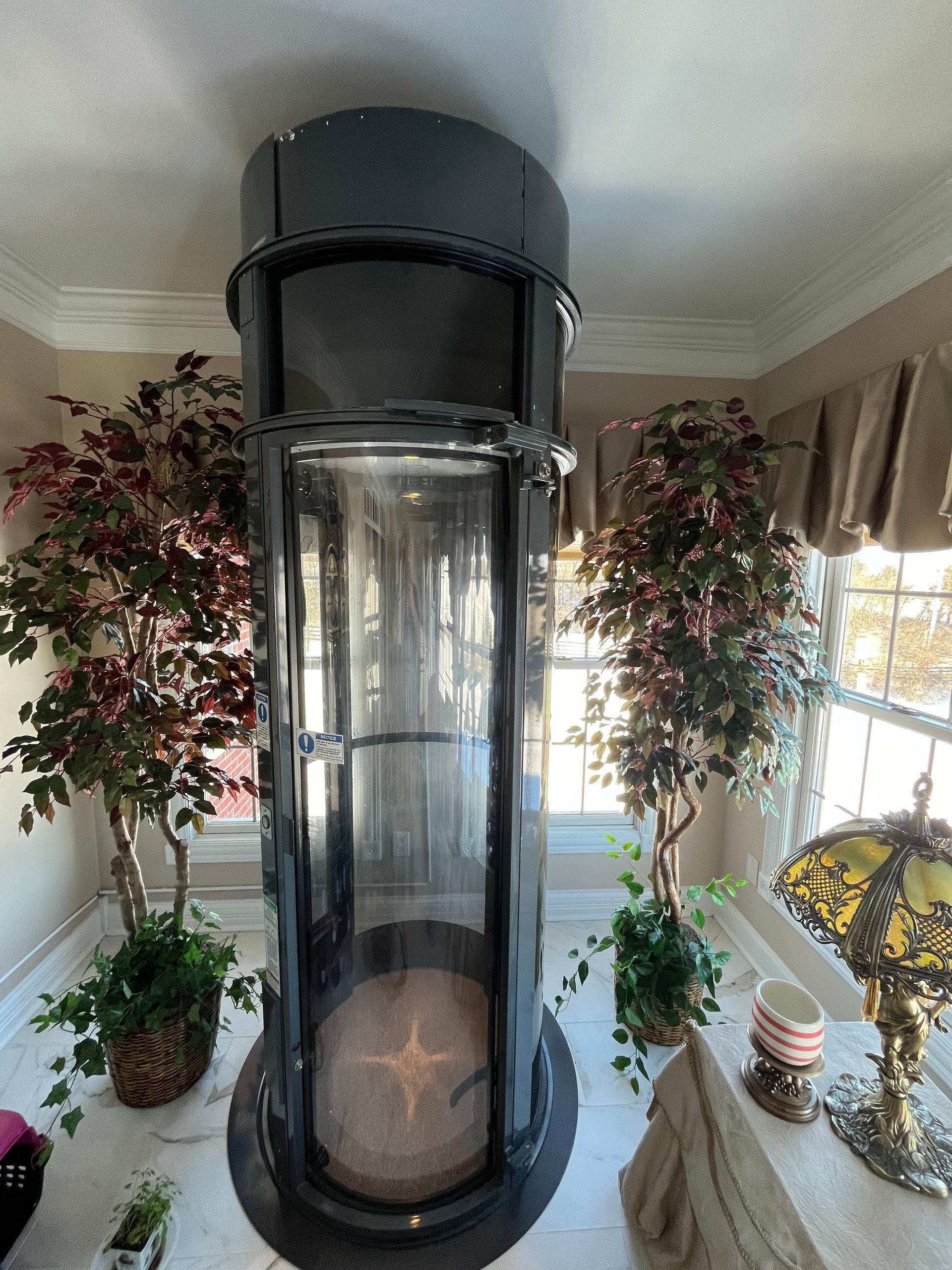

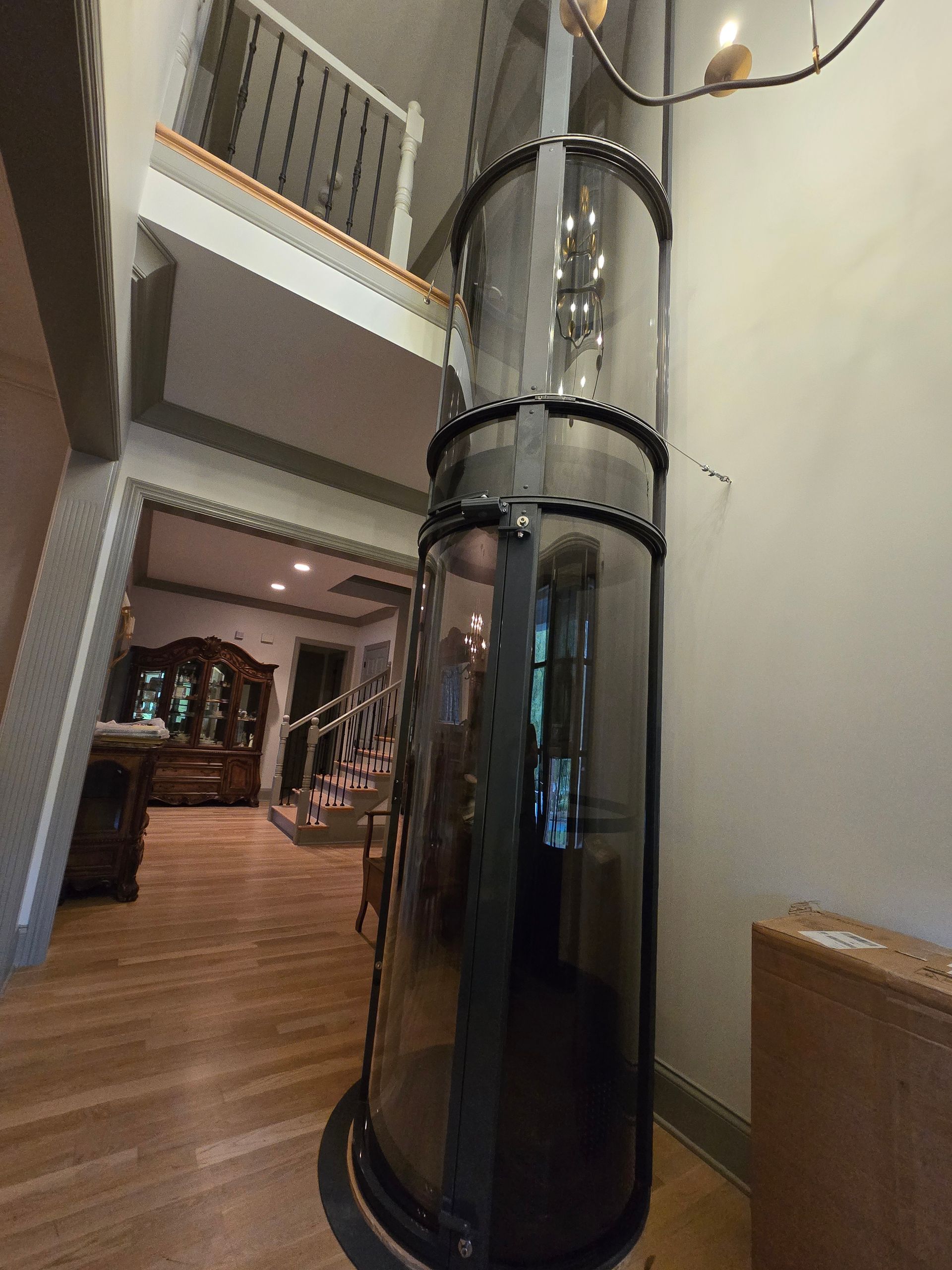

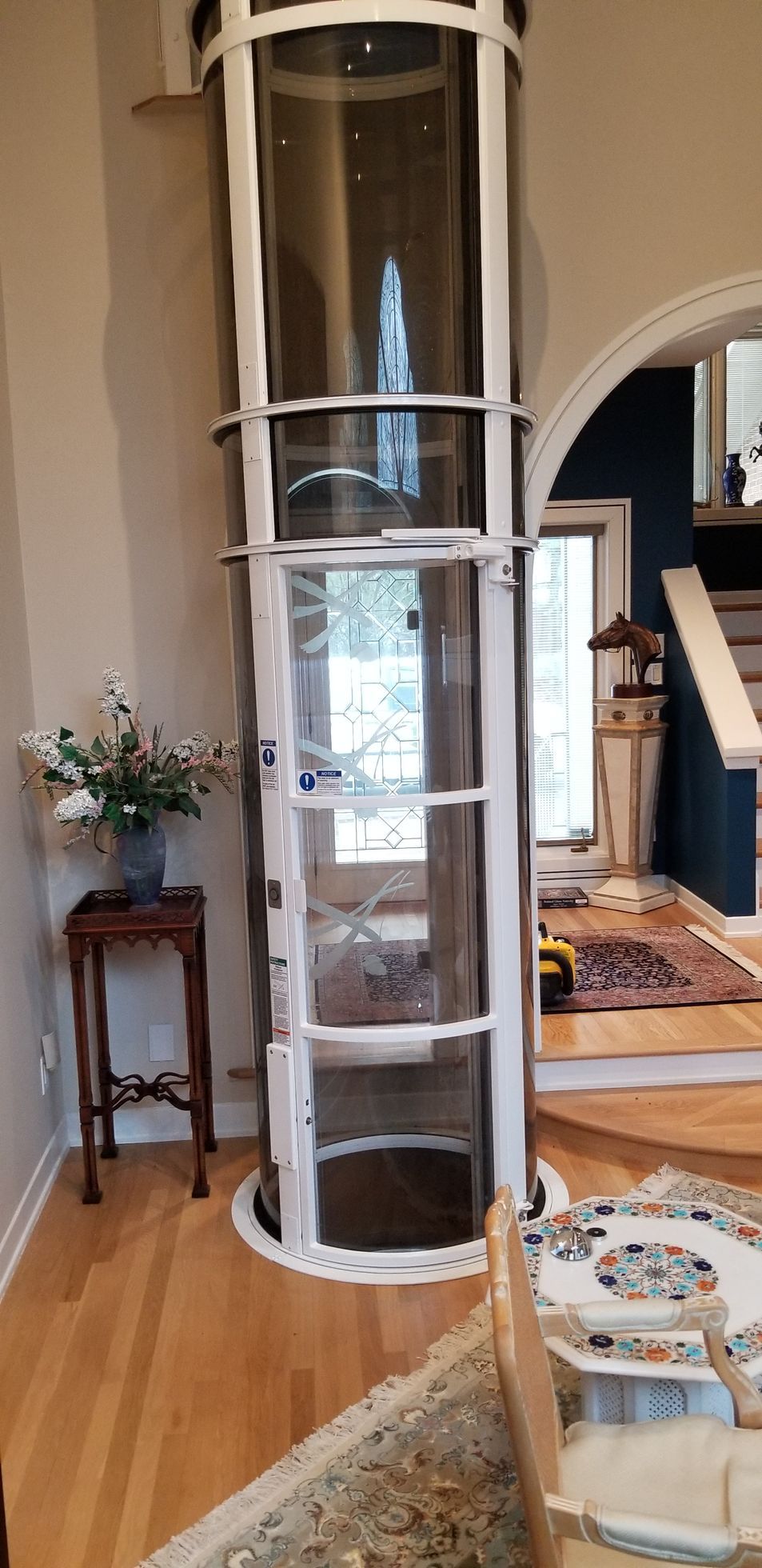

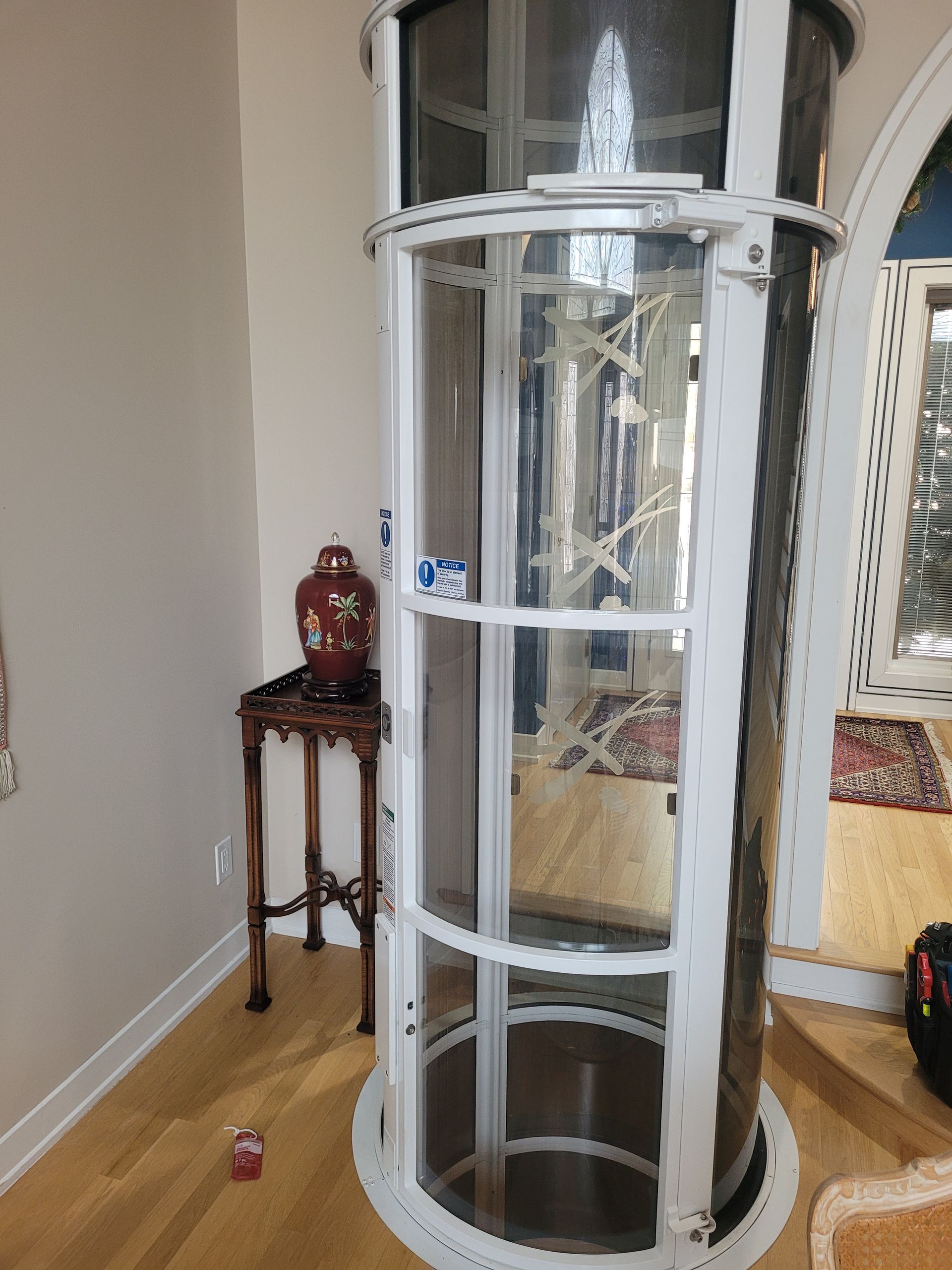

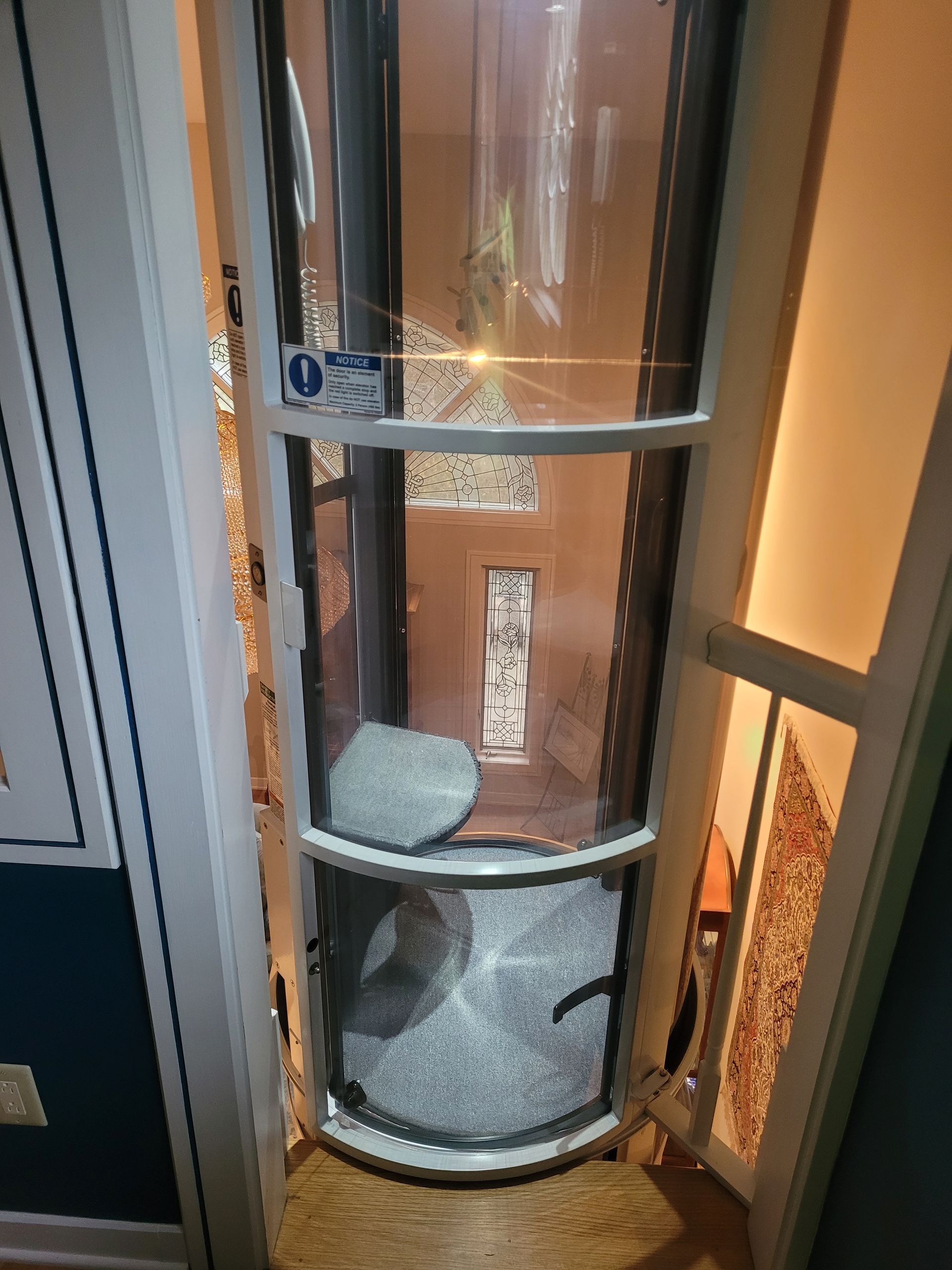

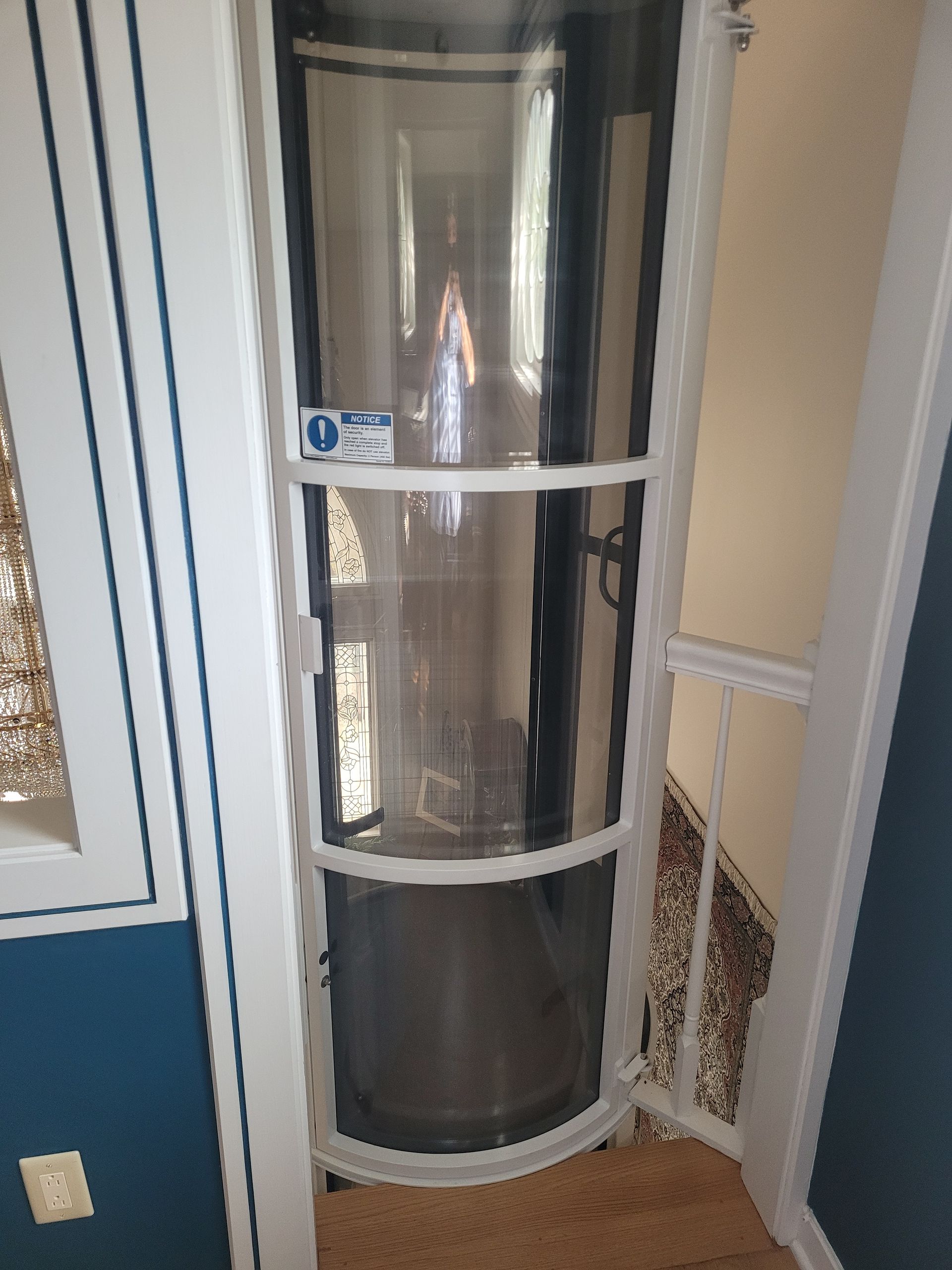

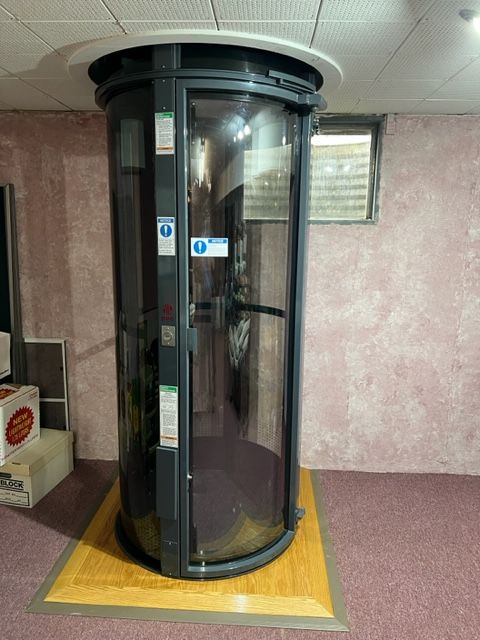

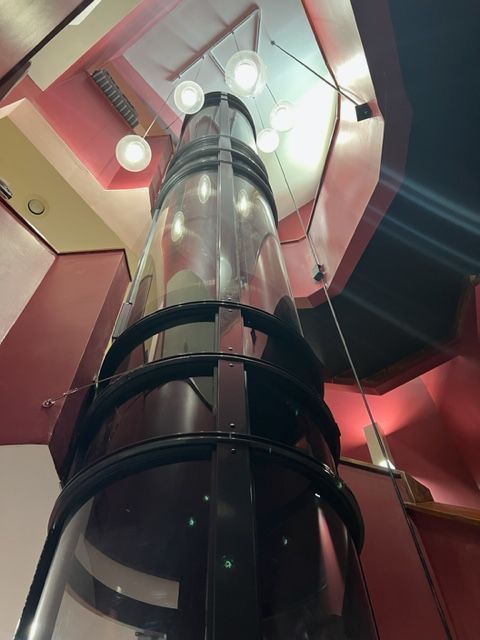

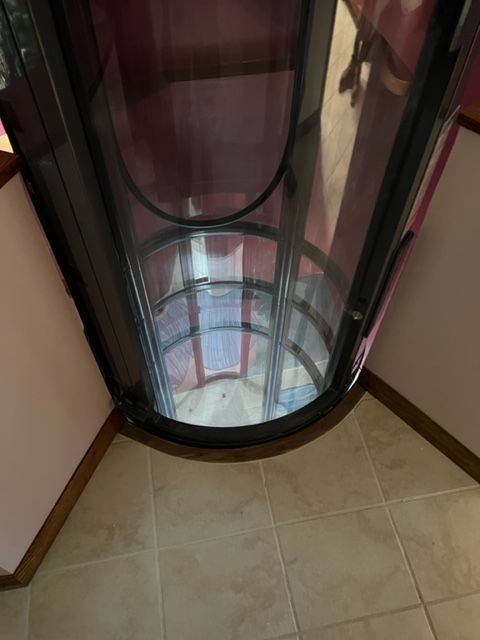

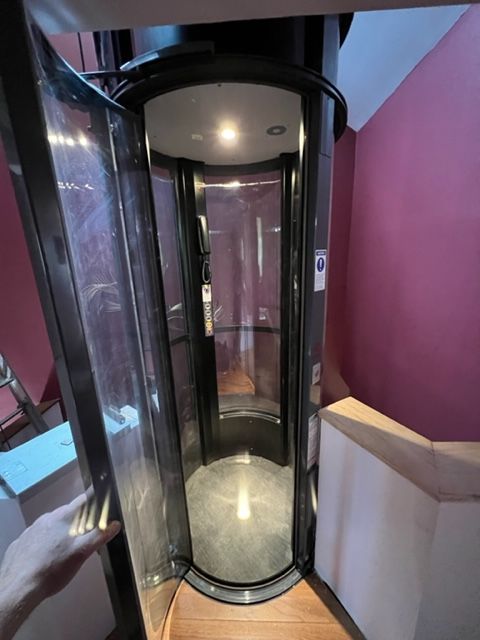

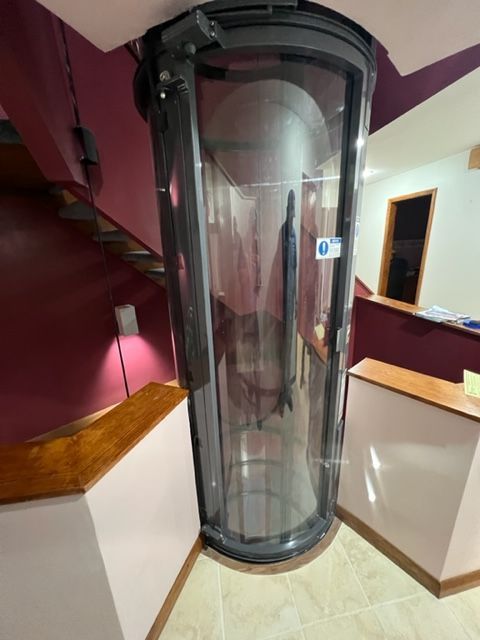

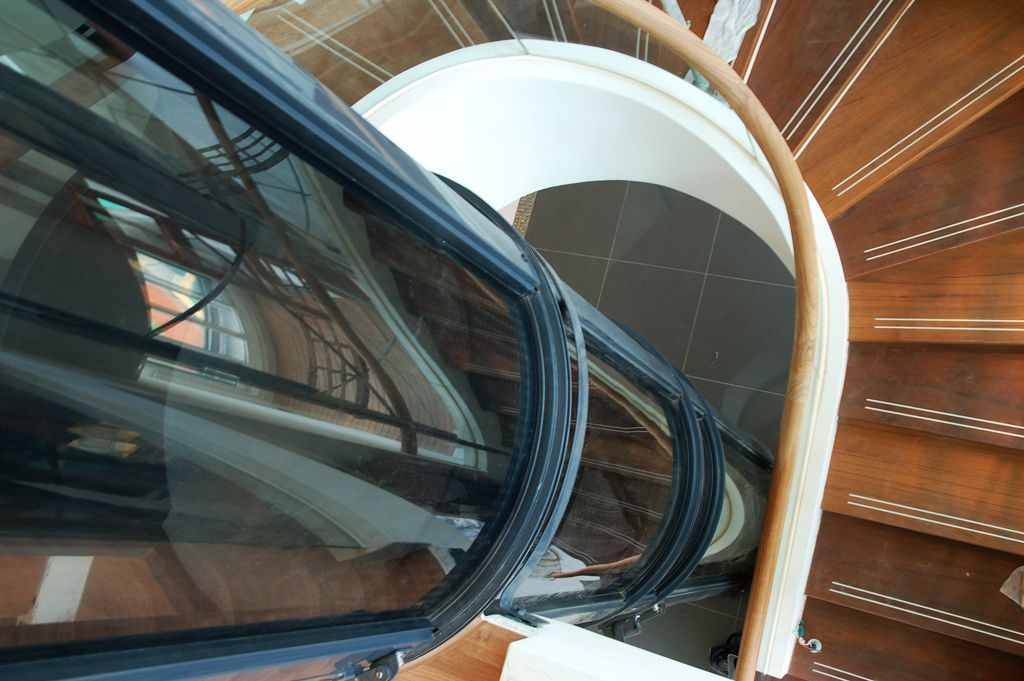

The pneumatic elevator PVE37 is compact, attractive, and helps save space within your home while making it more accessible. This home elevator has been on the market since 2002, with a high standard of reliability and quality.

Safety features include: Automatic descent to ground level in the event of power failure. Mechanical emergency brakes engage within two inches of freefall in vacuum loss or catastrophic failure.

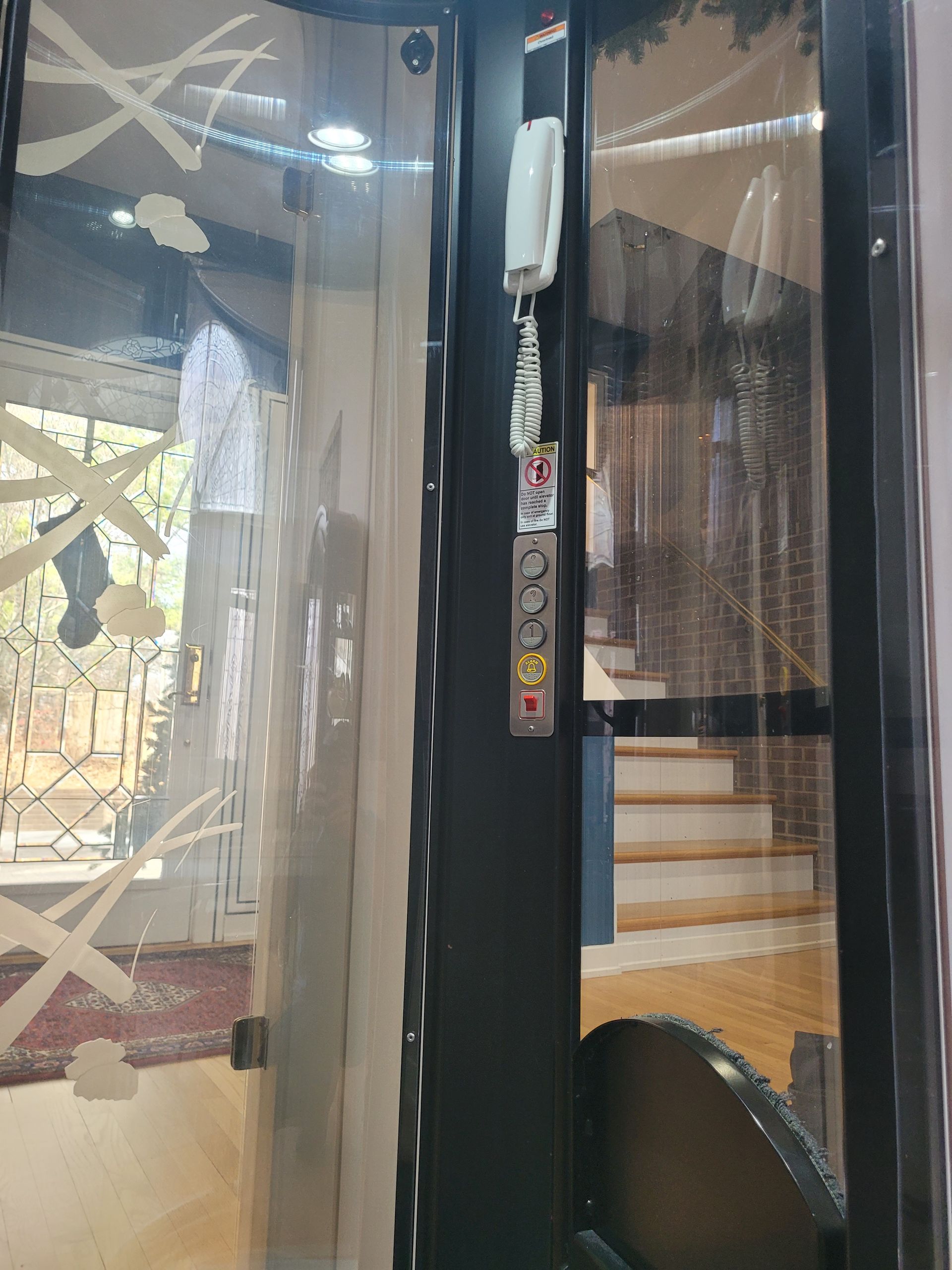

Electromechanical interlocks at each landing, alarm system & telephone

Standard Features:

Capacity - 450 lb.
Standard Color - Black
Travel Speed - 35 fpm
Travel Height - 50’ maximum travel between floors with up to 5 stops
Power Supply - 220-240V, single phase, 30 amp
5 Turbine motors located in the pump box using a total of 6 kW
External Cylinder Diameter - 37”
Internal Cabin - 32” Diameter x 79” H
Entrance Opening - 21”
Through-Floor Penetration Required -39”
Floor to Floor Clearance - 92” minimum
Floor to Ceiling Clearance - 81” minimum
Overhead Clearance:

-Standard Head Unit Machinery - 107”

-Split-Unit Remote Machinery - 97”

Automatic LED Lighting and Cabin Fan
Push Button Call Controls with Precise Leveling At Each Landing
Each Landing will only have one door.
All doors Same-Side (In-Line) and hinged on Top Left from Inside Cabin
Through Floor or Balcony Mount Landings

Options:

Split Unit
Flip up Seat
Door Openings - Opposite Side (Pass-Through), 90 degree Openings
Color Options - Dark Gray, White, Taupe, Silver, Light Gray
Custom Clear Panels, Custom Door Hinge,Smart Home Integration,Homing Feature,
Remote Control,Cabin Key Lock and more.

Installation

Professional Measure + Installation available in the following areas:

Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.
