PVE30 - One Person

By: Pneumatic Vacuum Elevators

Pneumatic Vacuum Elevators

PVE30 - One Person

CAN GO ANYWHERE WITH AIR

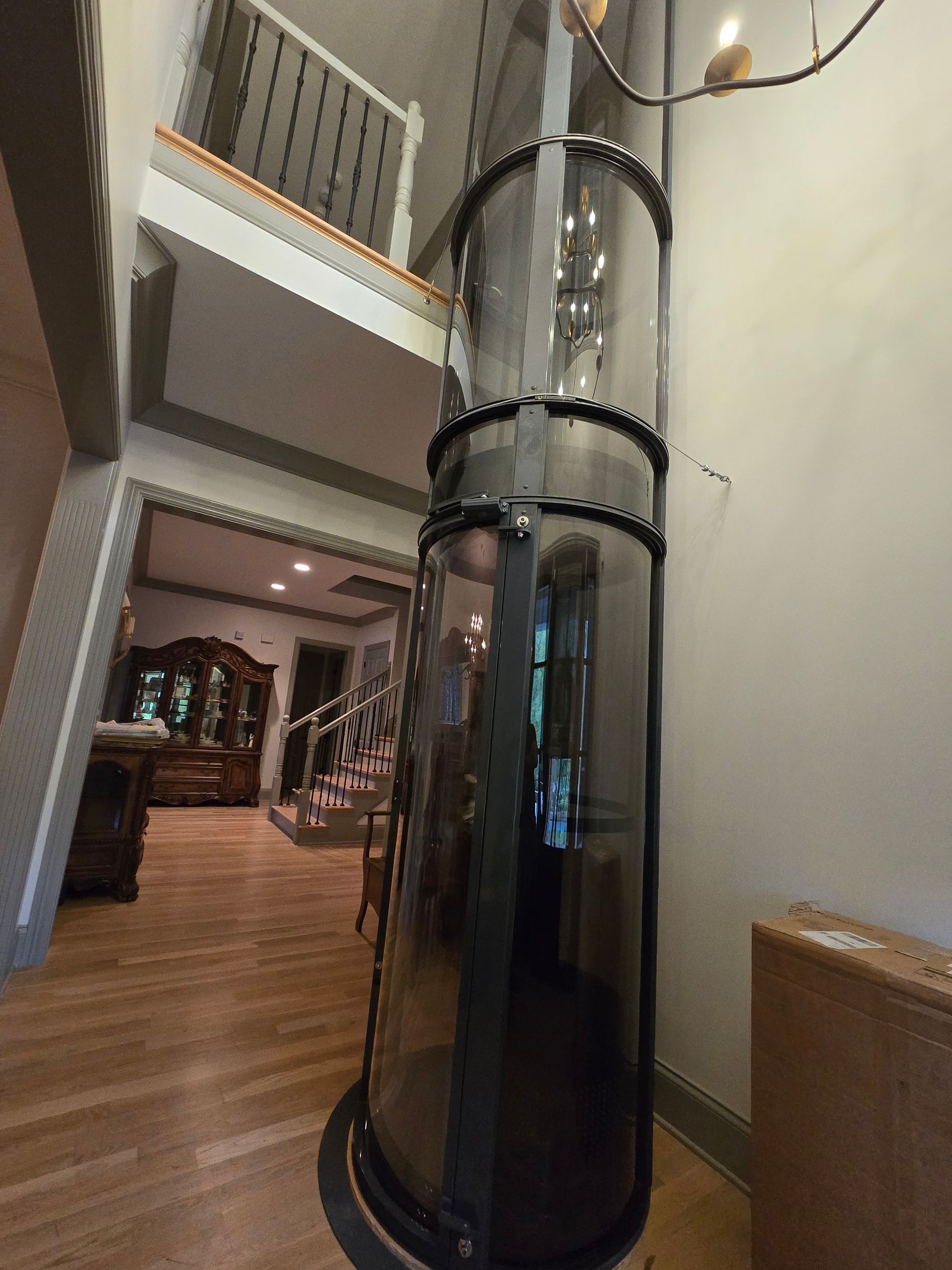

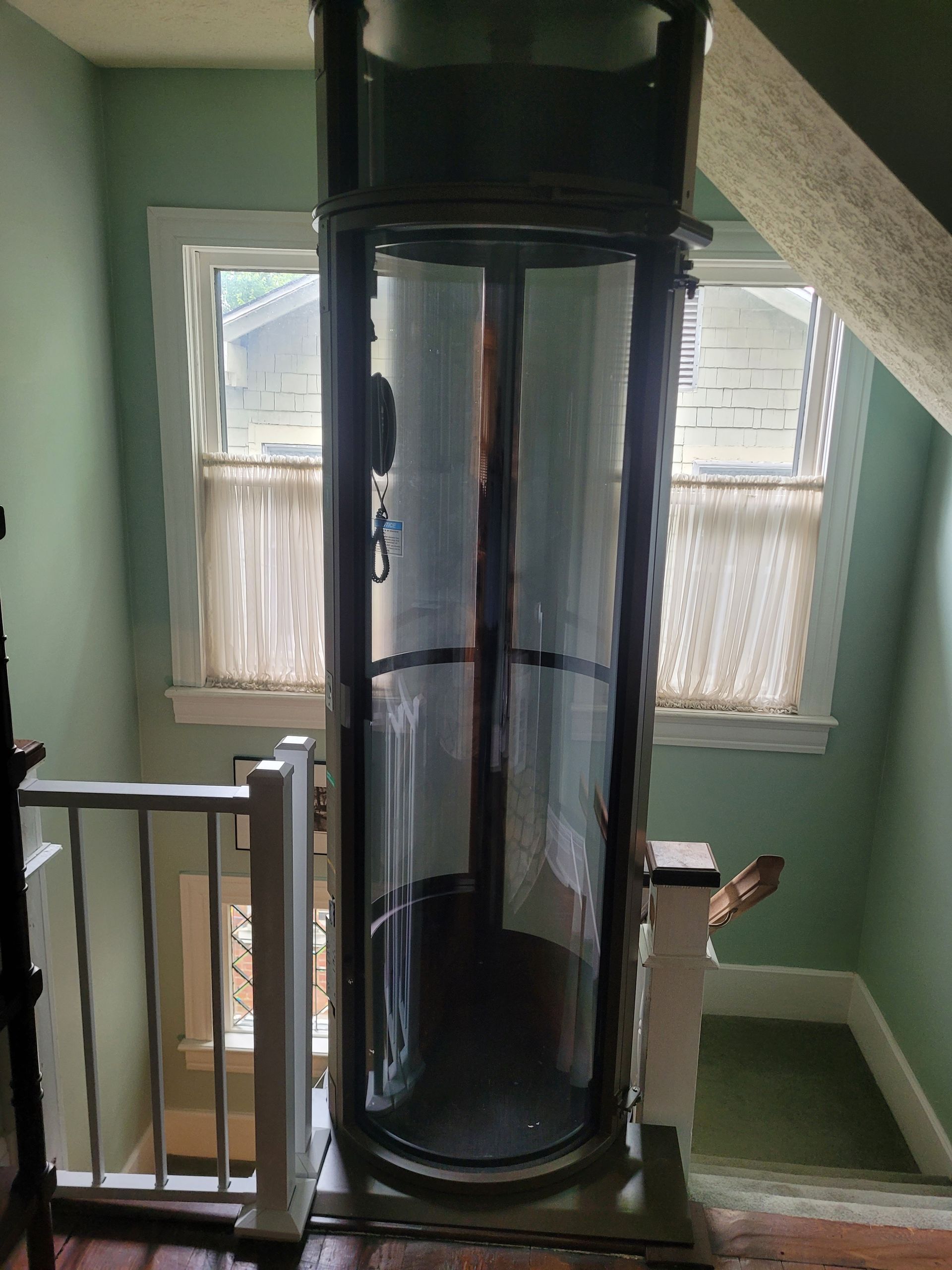

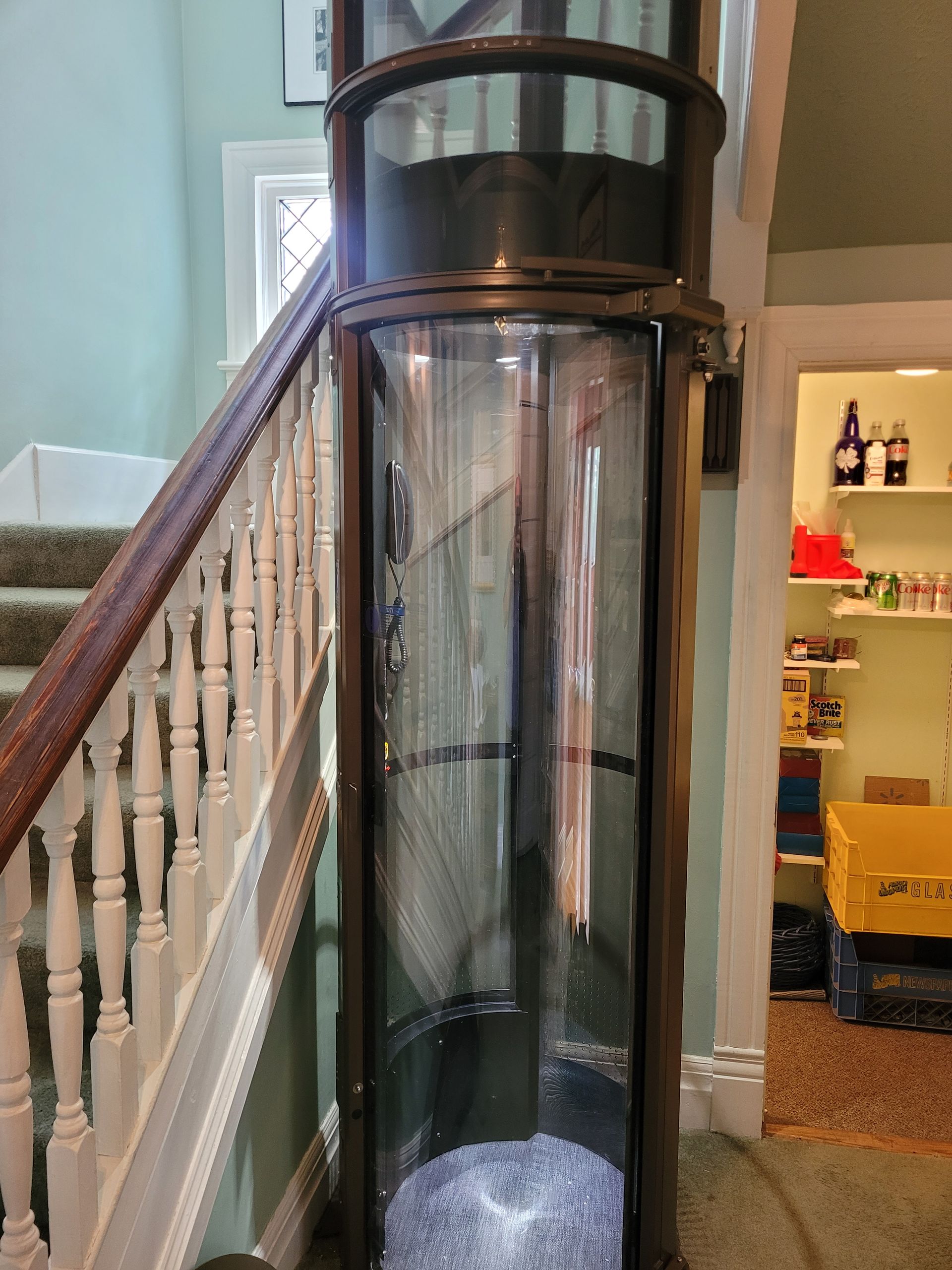

The unique design of the vacuum residential elevator is a perfect choice for any retrofit or new construction project and will enhance the value of your home without the larger footprint of a traditional home elevator. The PVE 30 is the smallest footprint of any home elevator!

Safety features include: Automatic descent to ground level in the event of power failure. Mechanical emergency brakes engage within two inches of freefall in vacuum loss or catastrophic failure.

Electromechanical interlocks at each landing, alarm system & telephone

Standard Features:

Capacity - 350 lb.
Standard Color - Black with tinted panels
Travel Speed 40 fpm
Travel Height - 50’ maximum travel between floors with up to 5 stops
Power Supply - 220-240V, single phase, 30 amp
3 Turbine motors located in the pump box using a total of 3.8 kW
External Cylinder Diameter - 30”

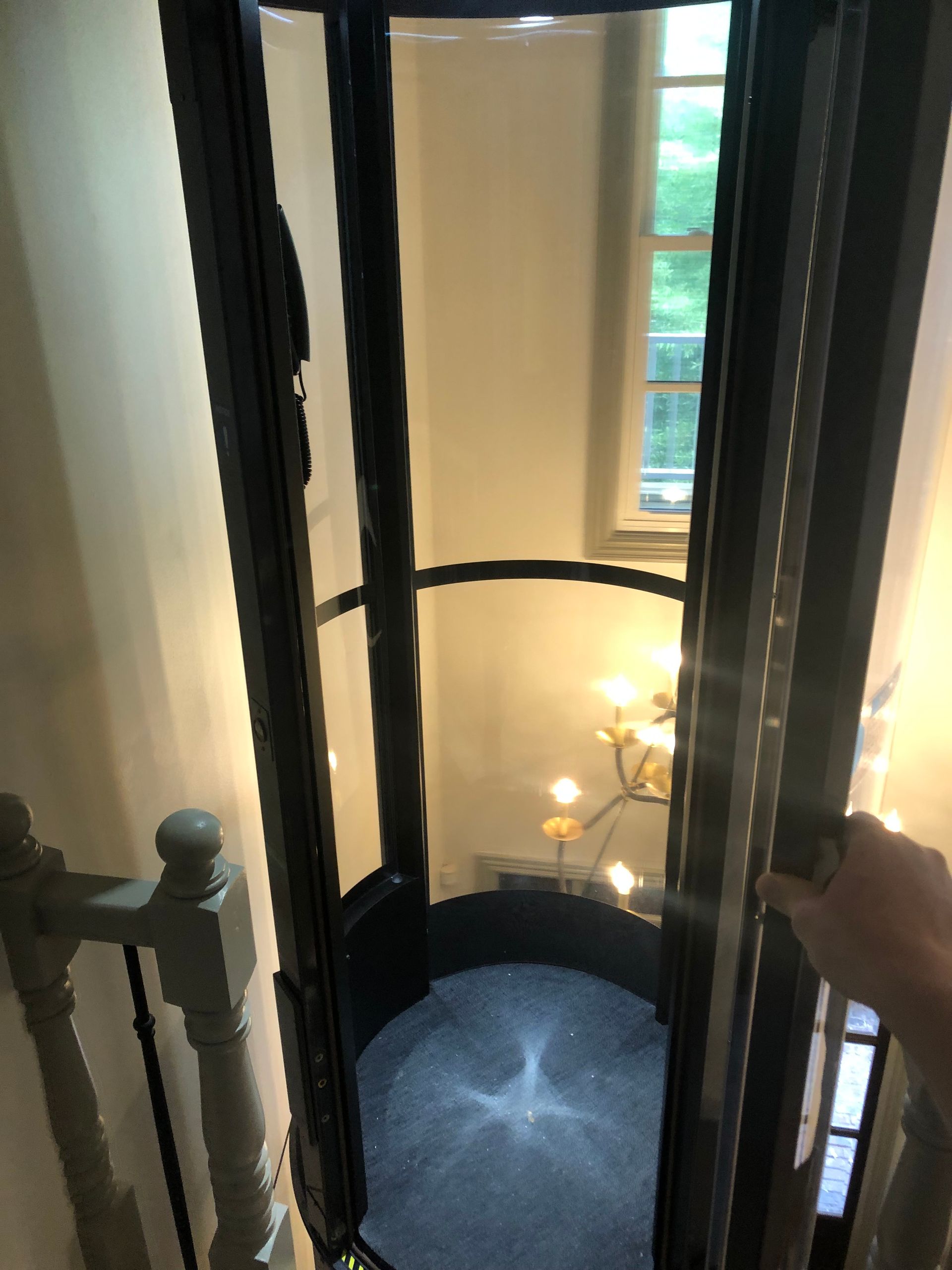

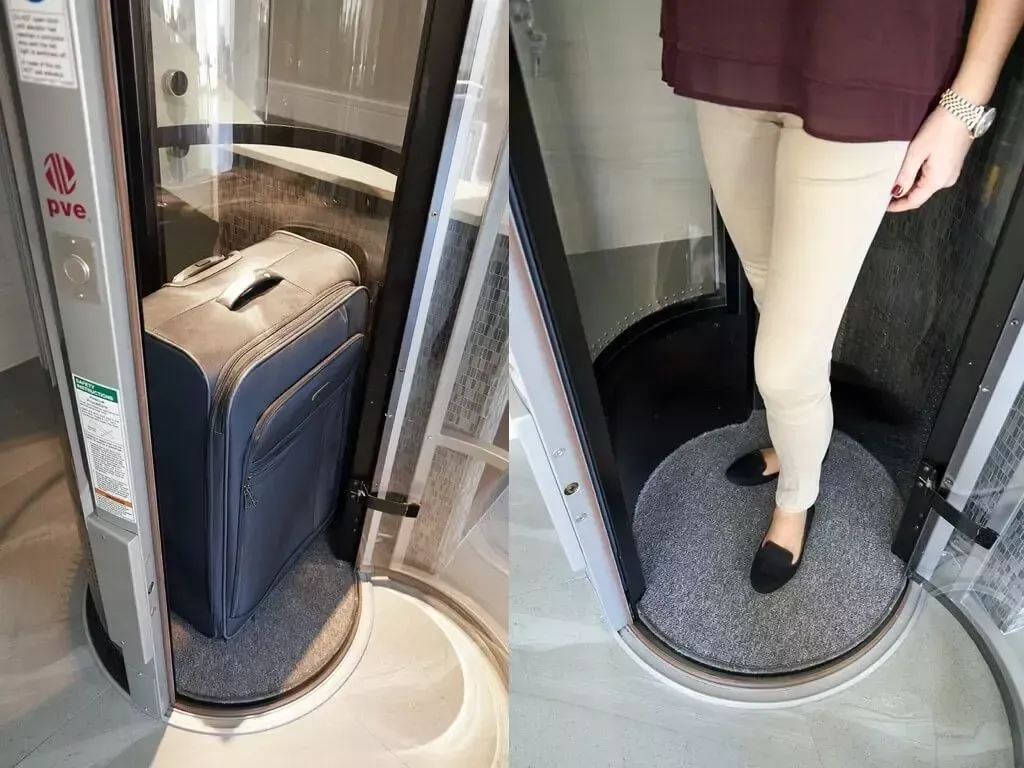

Internal Cabin - 29.5” Diameter x 79” H
Entrance Opening - 20”
Through-Floor Penetration Required -32”
Minimum Floor to Floor Clearance - 92”
Minimum Floor to Ceiling Clearance - 81”
Minimum Overhead Clearance:

-Standard Head Unit Machinery - 107”

-Split-Unit Remote Machinery - 97”

Automatic LED Lighting and Cabin Fan
Push Button Call Controls with Precise Leveling At Each Landing
Each Landing will only have one door.
All doors Same-Side (In-Line) and hinged on Top Left from Inside Cabin
Through Floor or Balcony Mount Landings

Options:

Split Unit
Flip up Seat

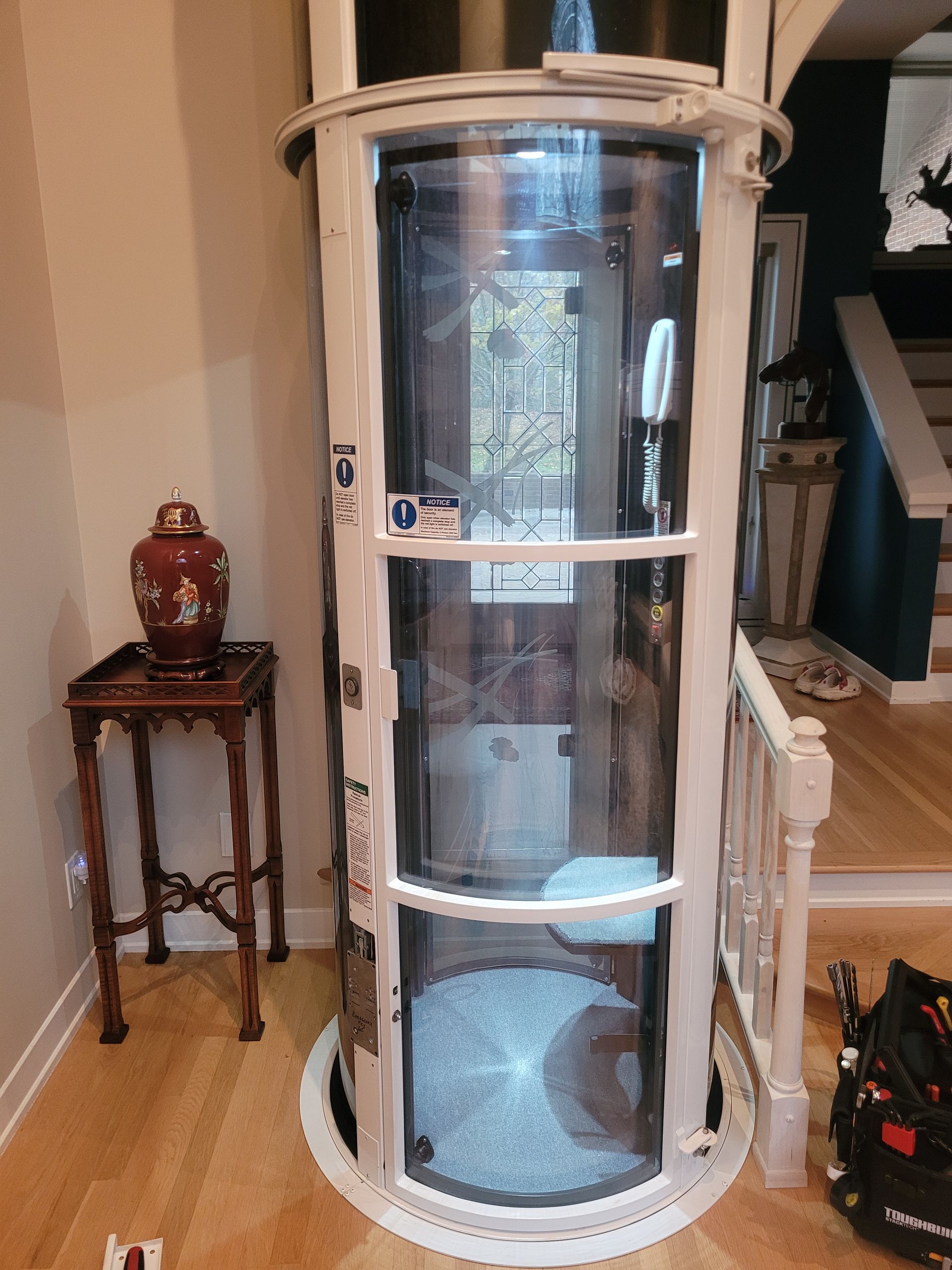

Color Options - Dark Gray, White, Taupe, Silver, Light Gray
Custom Clear Panels, Custom Door Hinge,Smart Home Integration,Homing Feature,
Remote Control,Cabin Key Lock and more.

Installation

Professional Measure + Installation available in the following areas:

Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.
