Winding Drum Luma Lift

By: Savaria

Savaria

Winding Drum Luma Lift

VERSATILE HOME MOBILITY

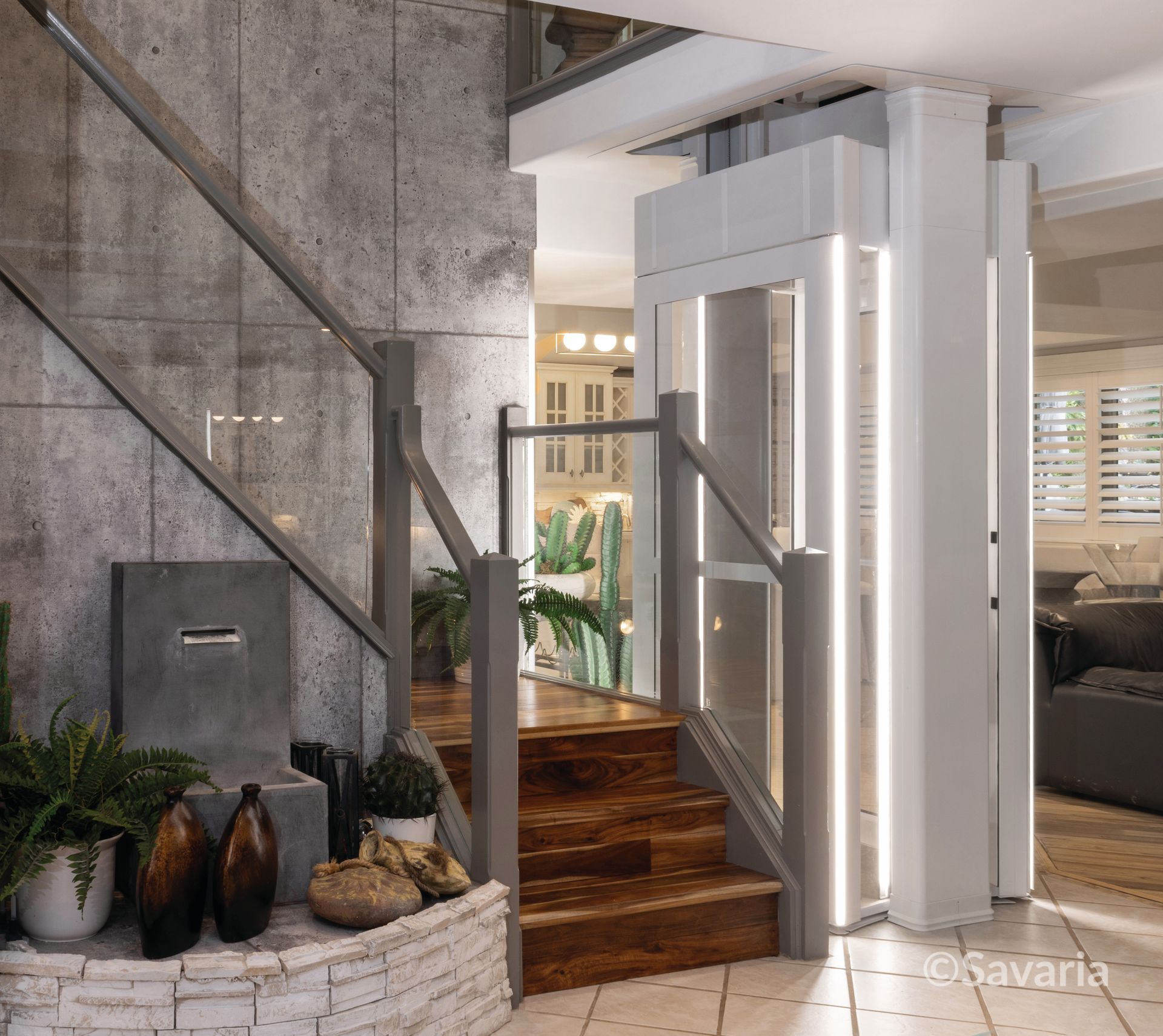

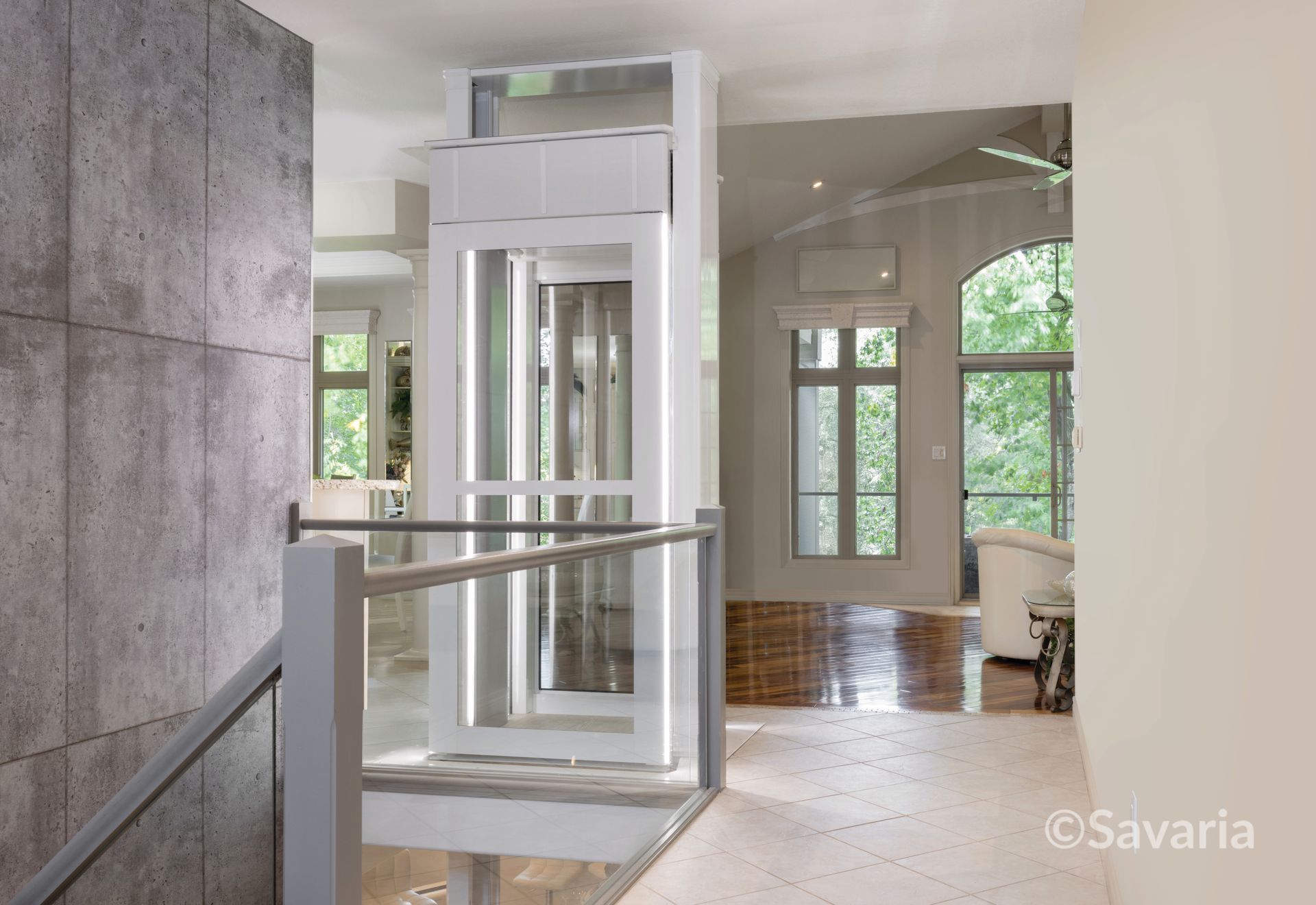

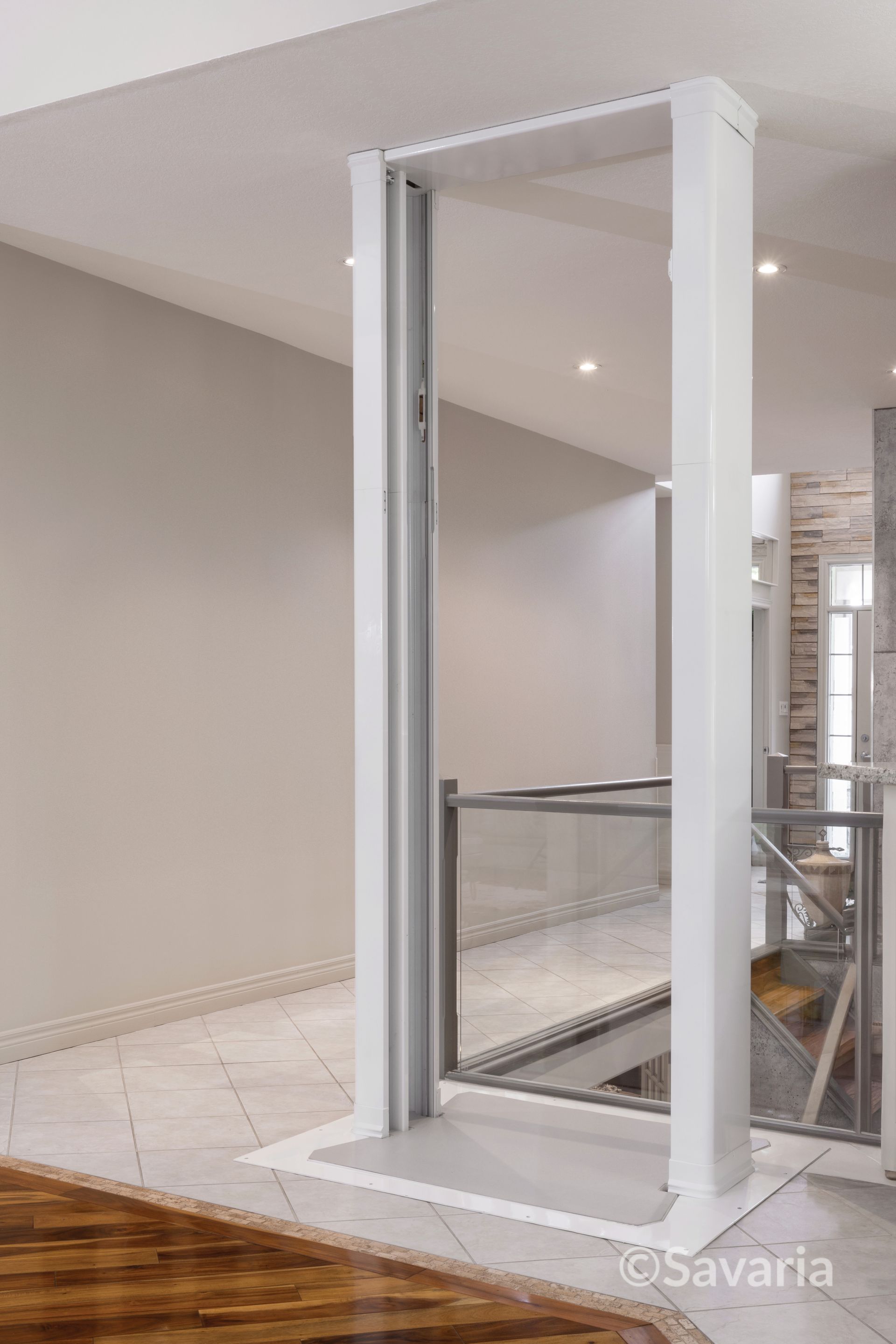

The Luma lift provides easy two-level access in your home.  This home elevator is finished with a luxury feel and panoramic views with a modern simple design.  This lift has a compact footprint and self-supported rail system that requires minimal construction. With a fully enclosed cabin you will feel safe and comfortable travelling from one floor to the other. Luma features a full size door and a second door can be added for straight-through access.  Fully battery powered and will continue to travel in both directions up to five times during a power outage.

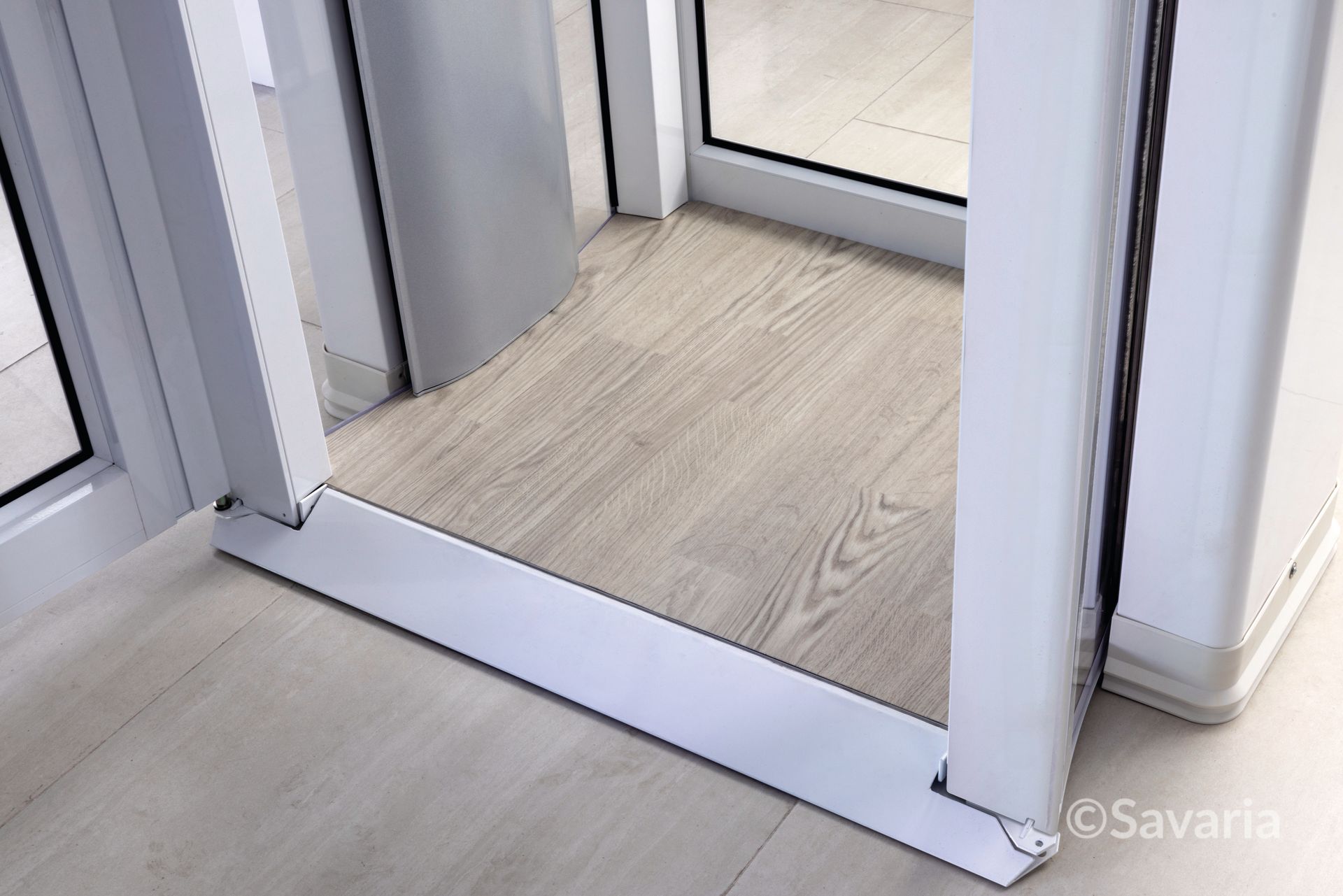

Safety features include interior lighting, emergency stop and alarm buttons, telephone, non skid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, full door with interlock, illuminated button and lift status panel.


Standard Features:

Capacity - 400 lb.

Travel speed 13 fpm - Constant pressure controls with keyed or keyless access

Travel height - up to 13.75’

Battery Operated - operates up and down for as many as 5 trips during power outage

Power Supply Single phase 110 VAC, 5A

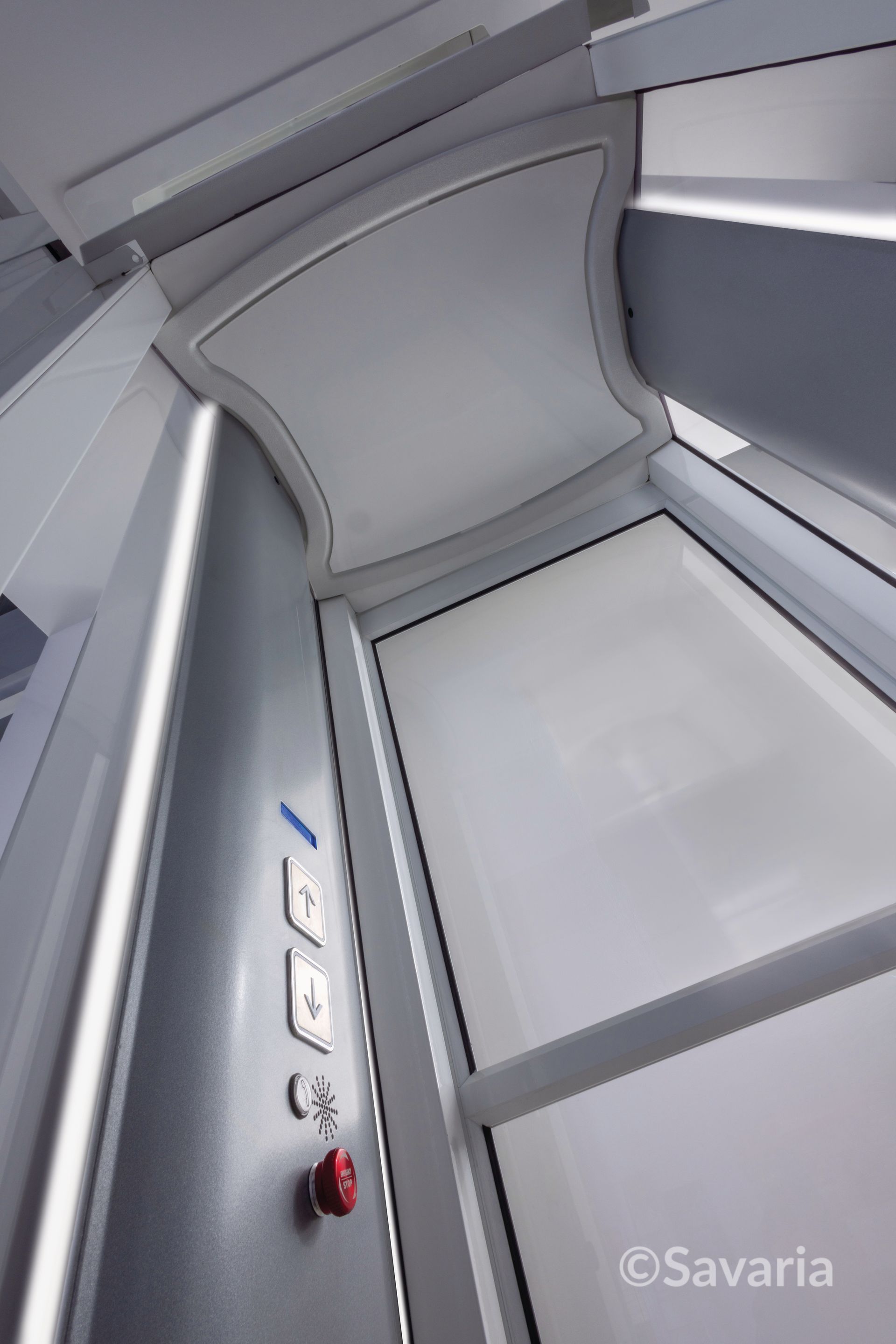

Cabin size - 29”W x 27.75”L x 78.75”H

Manual Door

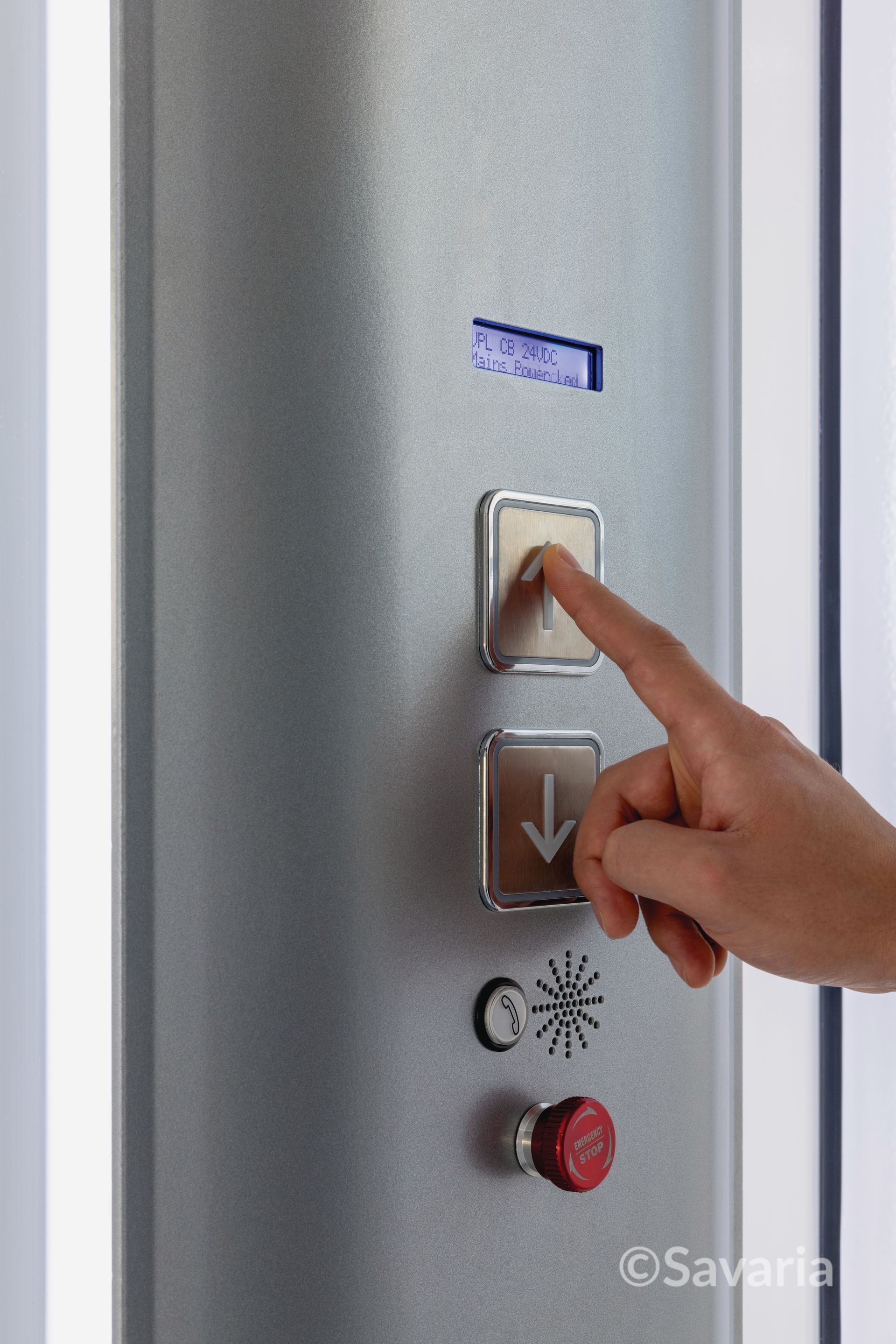

Car Operating Panel - Up/down buttons, emergency stop and alarm.

Slimline Phone

Landing controls - Flush or Surface mount with up/down buttons

36 months limited manufacturer parts warranty. 12 months limited manufacturer service warranty.


Options:

Installation

Professional Measure + Installation available in the following areas:

Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.
