Robust 875 lb. Hydraulic Home Lift
By: Savaria
Savaria
Robust 875 lb. Hydraulic Home Lift
HIGH CAPACITY SHAFTLESS ELEVATOR
The Telecab17 model is a 845 pound high-capacity home lift, ideal for heavier mobility equipment. No hoist way or pit required. It has a fully enclosed drive tower designed for safety and aesthetics. It requires a less invasive construction project than a traditional home elevator, with only a support wall and floor cutout needed. The aluminum frame is powder-coated (white) with clear acrylic window panels.
Safety features include interior lighting, emergency stop and alarm buttons, battery lowering in case of power failure as well as manual emergency lowering, telephone, non skid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, pressure relief valve to prevent platform overload, door interlock, and slack chain safety device.
Standard Features:
- Capacity - 845 lb.
- Travel speed 20 fpm - Constant pressure controls with keyed or keyless access
- Travel height - up to 23’
- Power Supply Single phase 110 VAC, 30A, 60Hz
- Battery back-up and manual lowering in case of power outage
- Cabin sizes:
-30” W x 46” D x 78” H
-36" W x 54" D x 78” H
- Manual Door - Front Opening side only
- Car Operating Panel - Up/down buttons, emergency stop and alarm.
- Landing controls - Flush or Surface mount with up/down buttons
- Stylish modern cab with full height acrylic panels and one-door access; full height flush door, interior lighting inside 80" height cab, with handrail.
Options:
- Battery Power backup for up/down up to 5 trips
- Automatic Door Opener
Installation
Professional Measure + Installation available in the following areas:
Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.

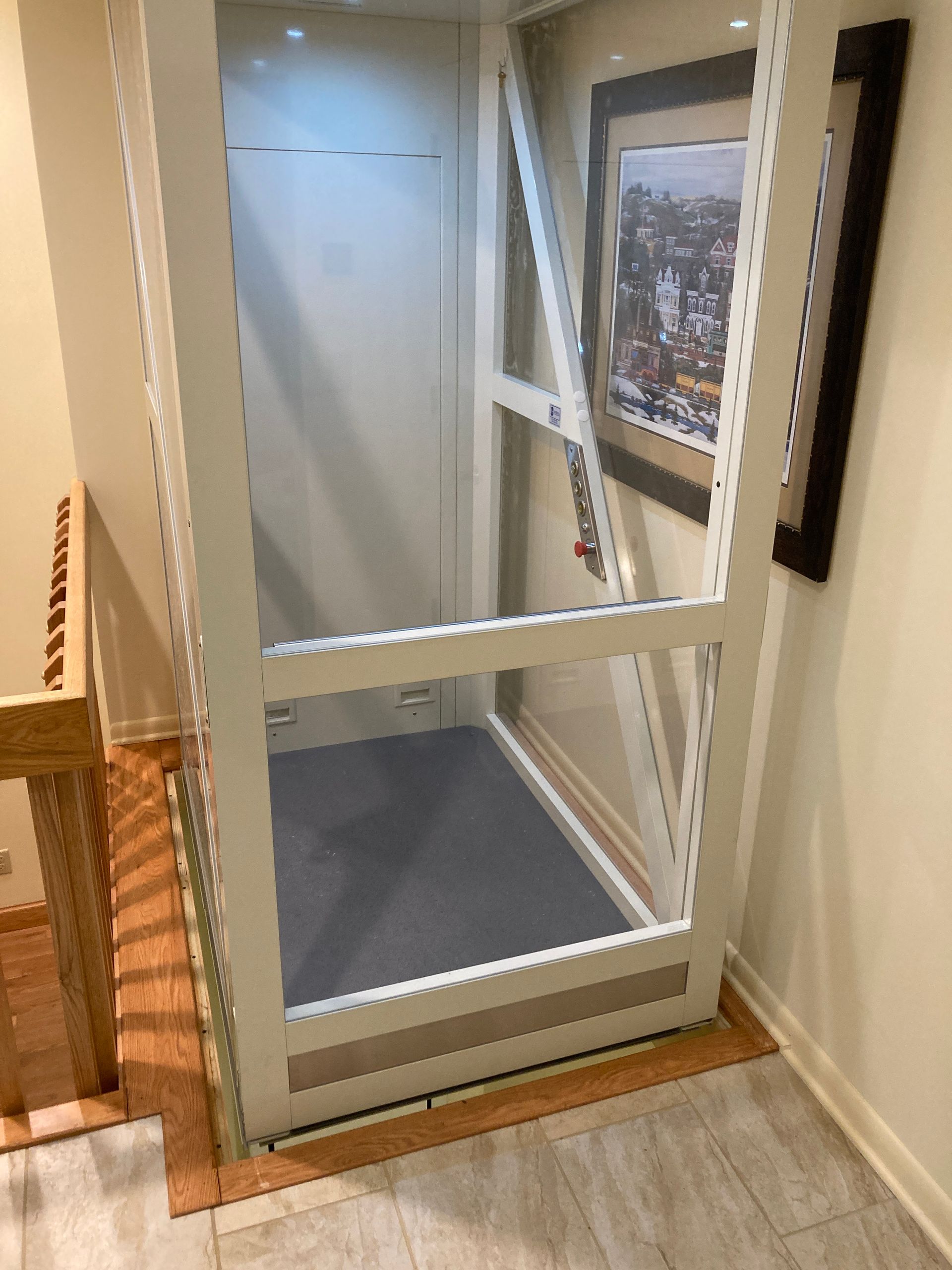

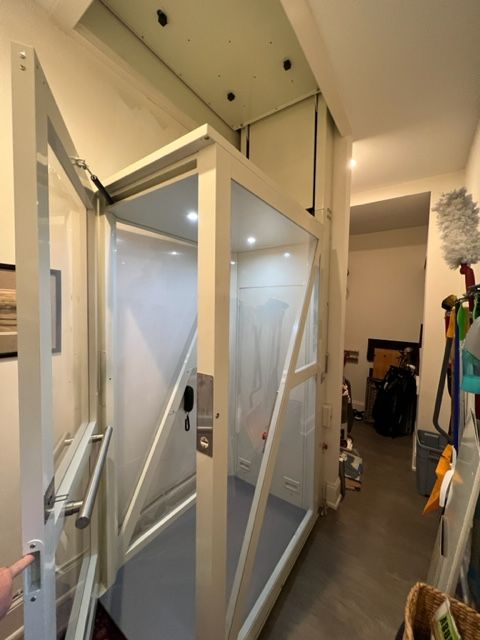

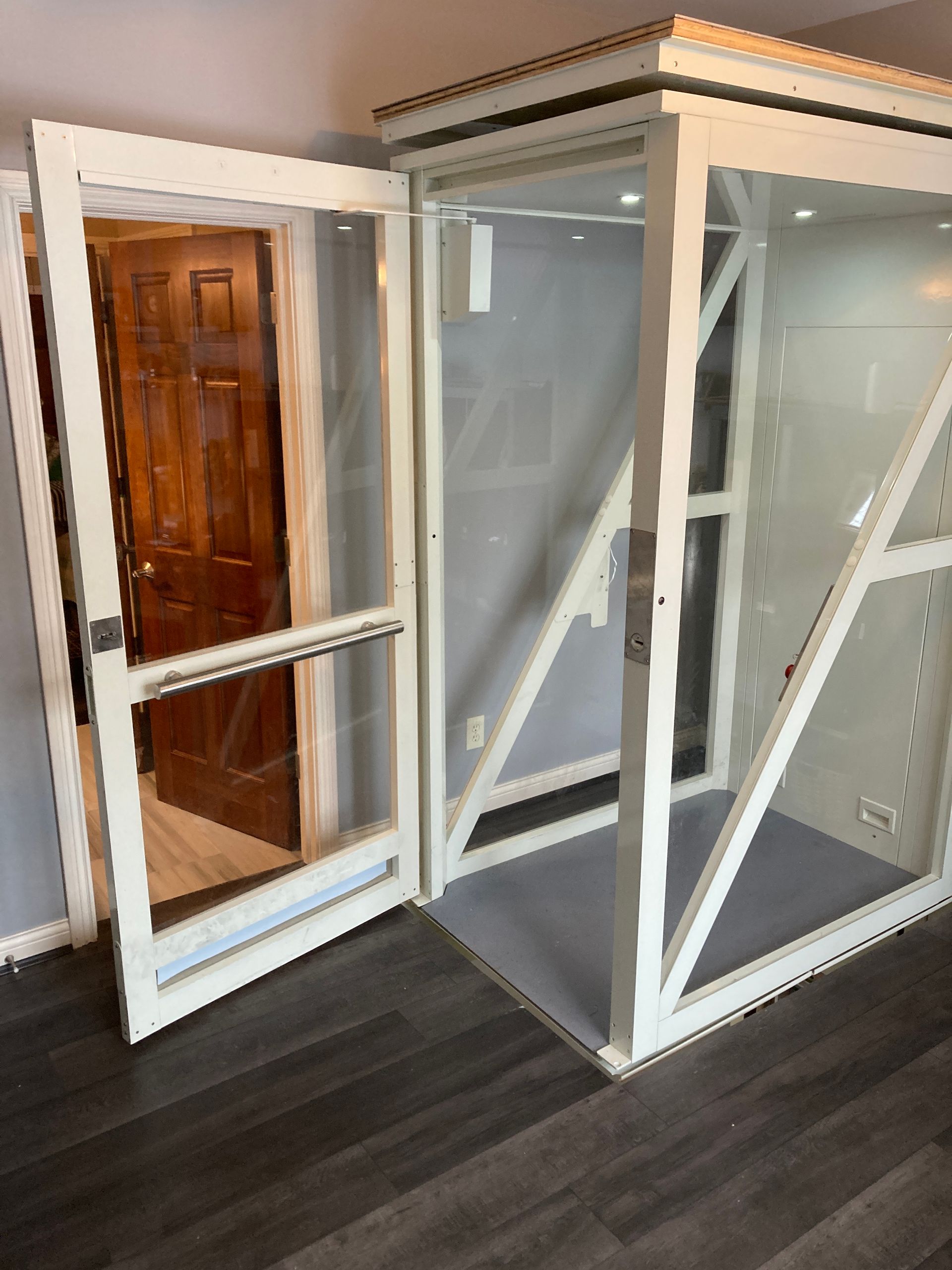

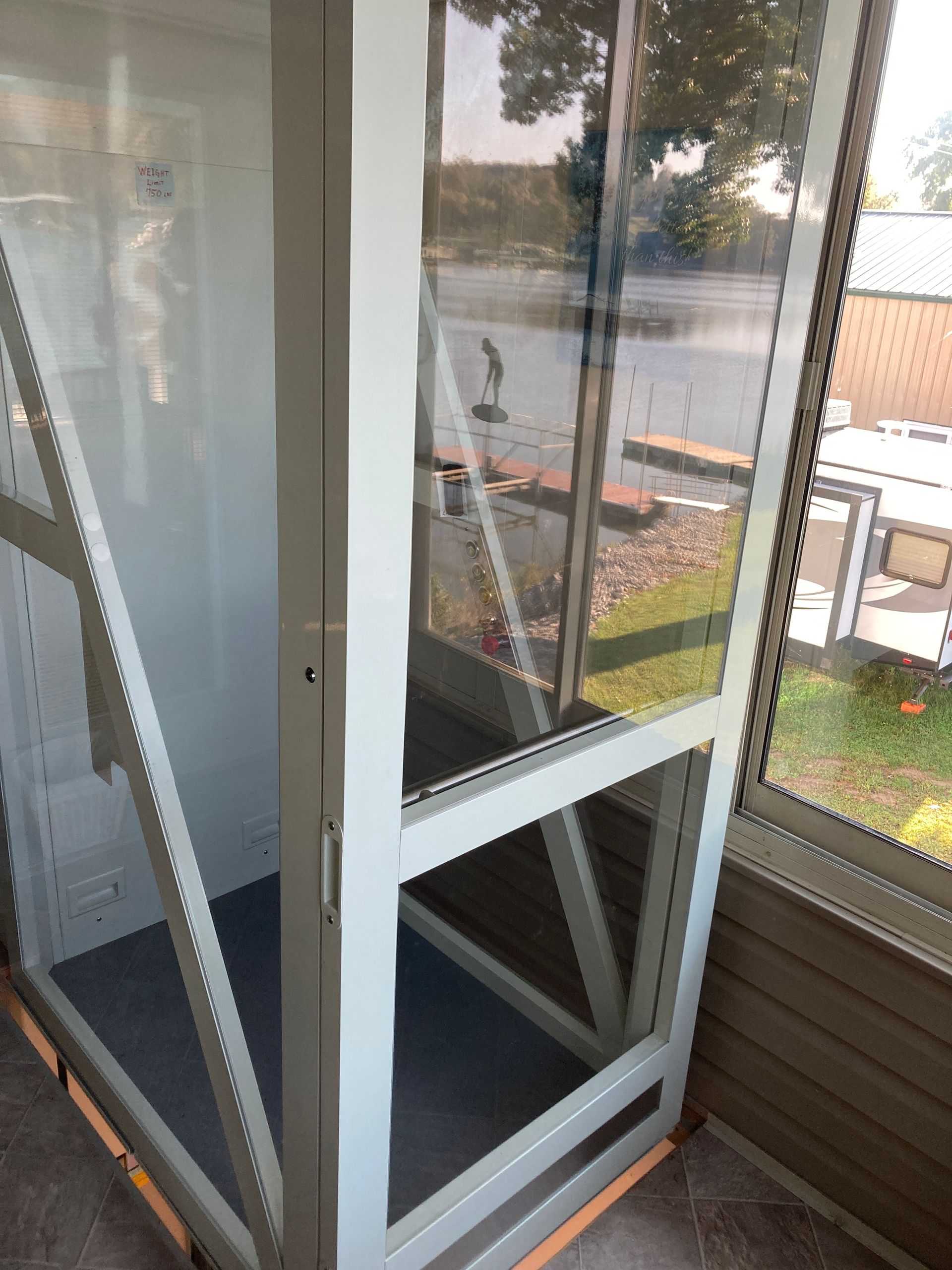

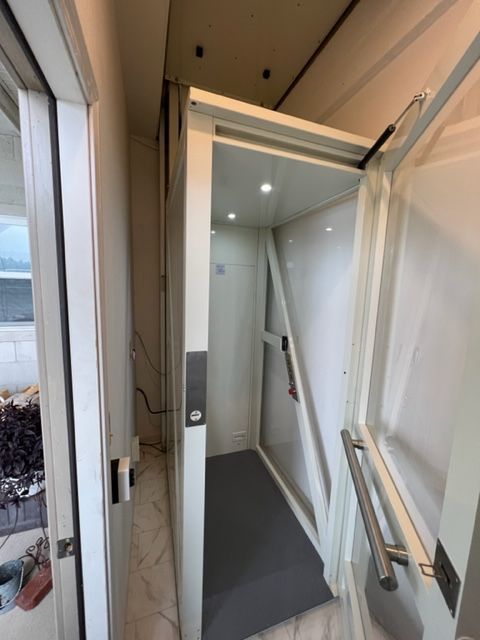

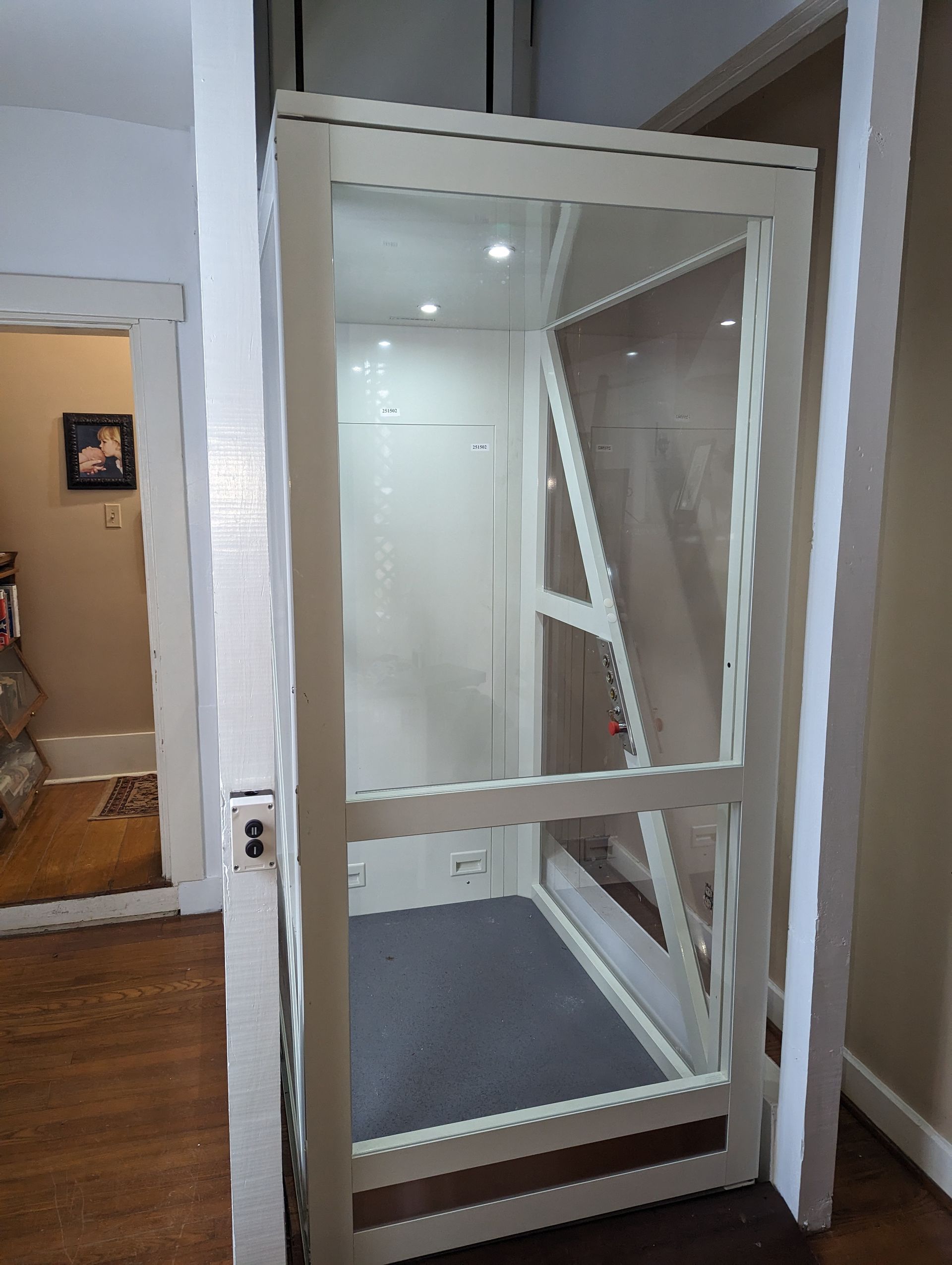

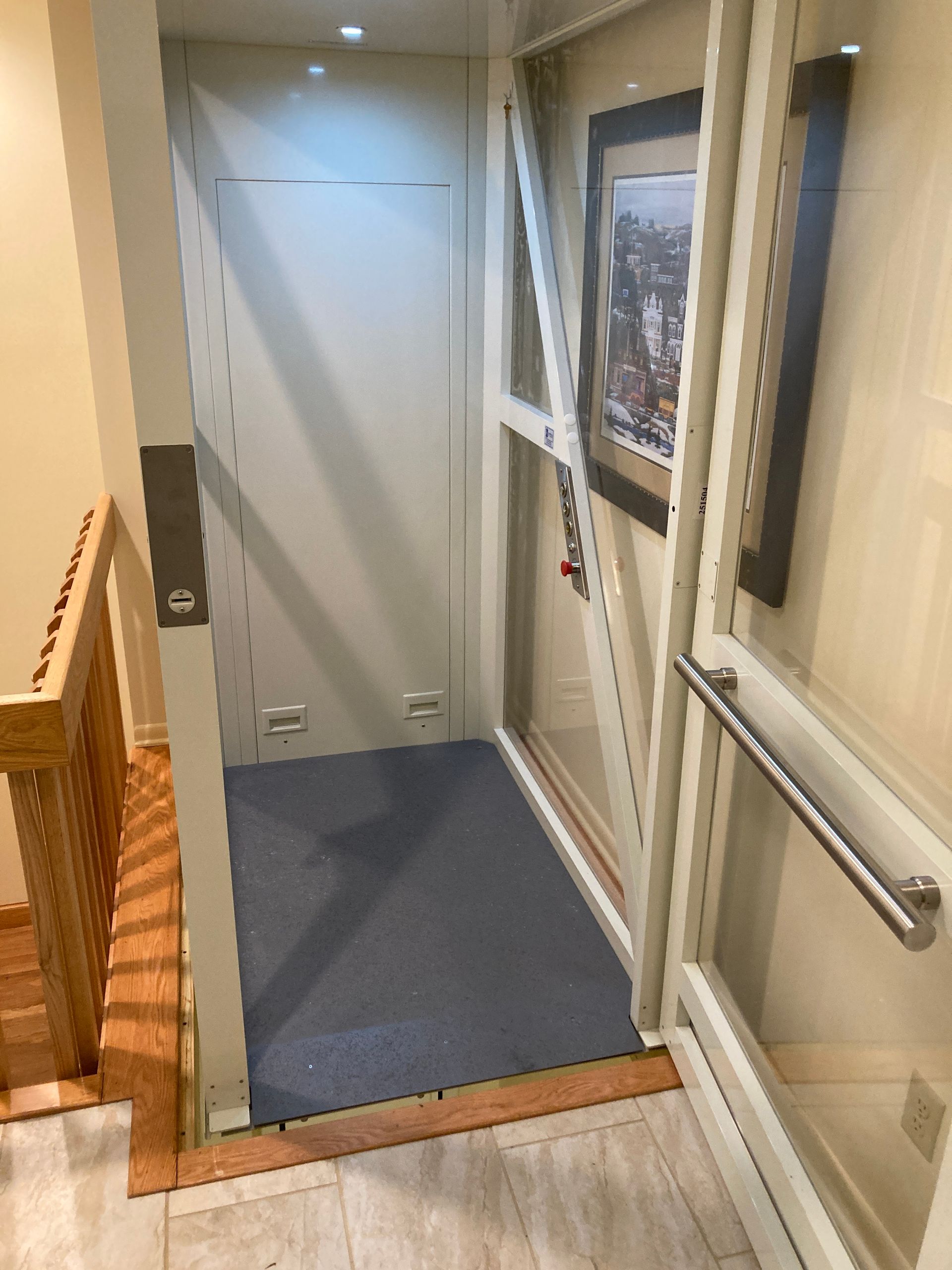

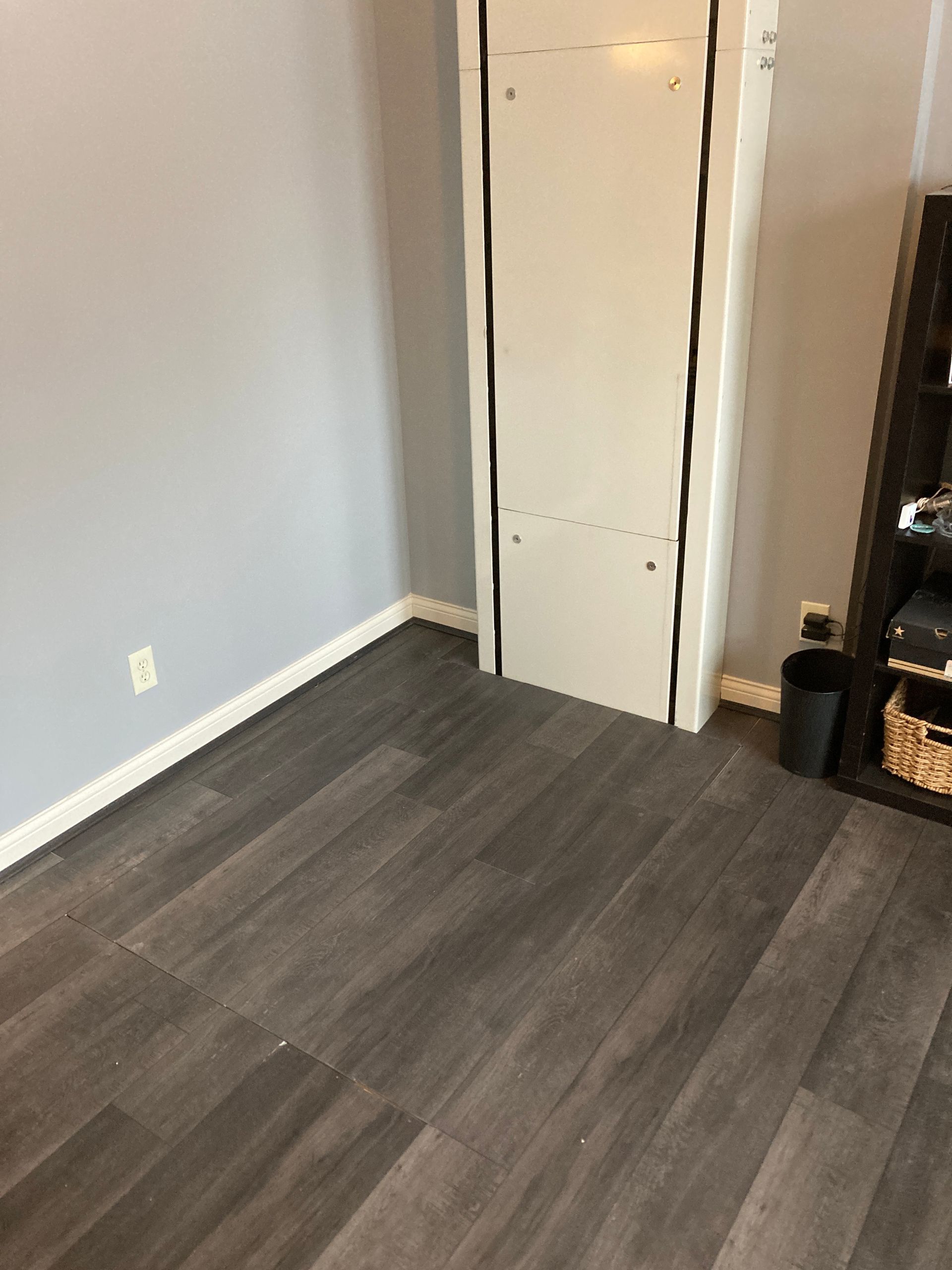

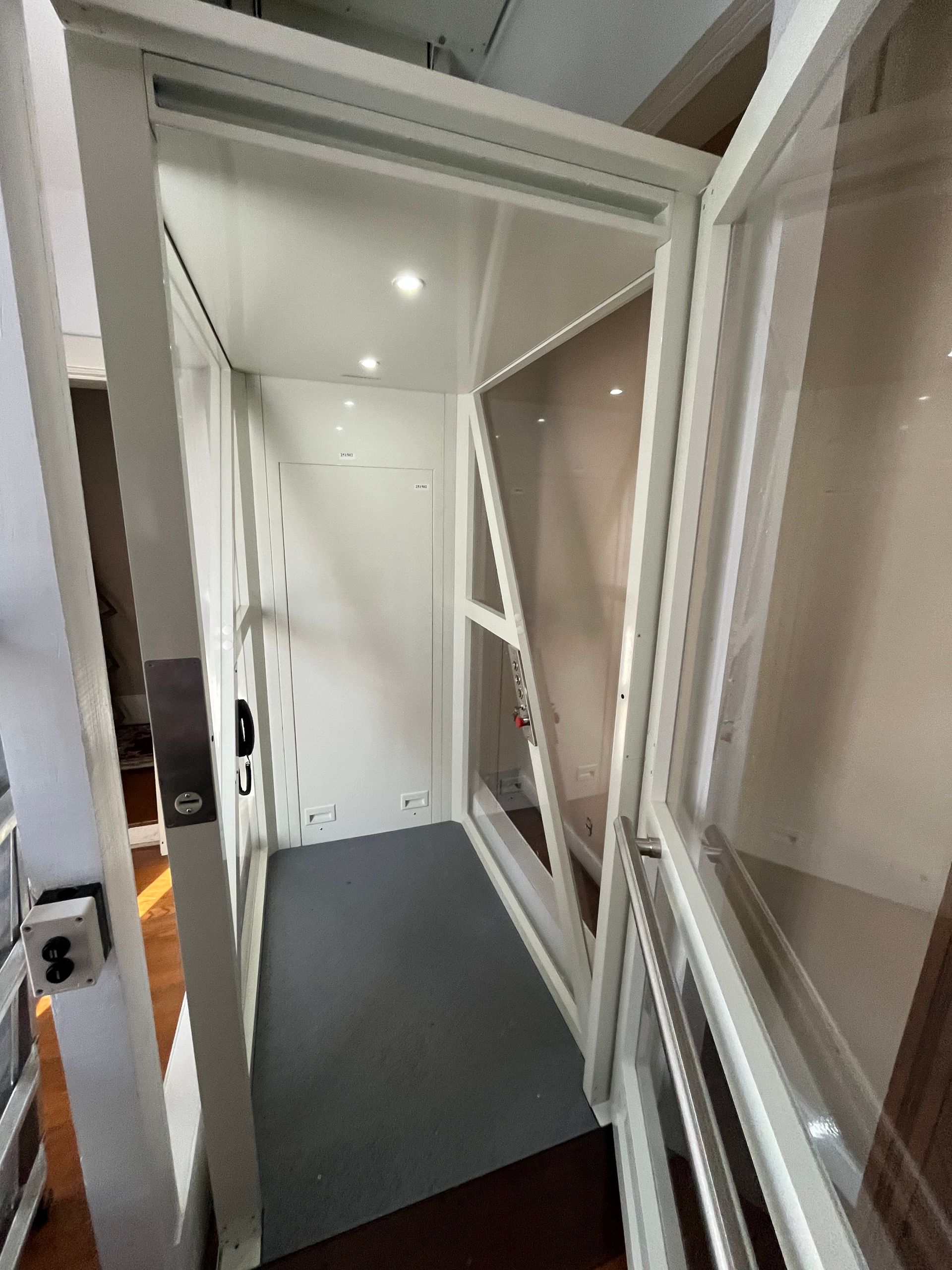

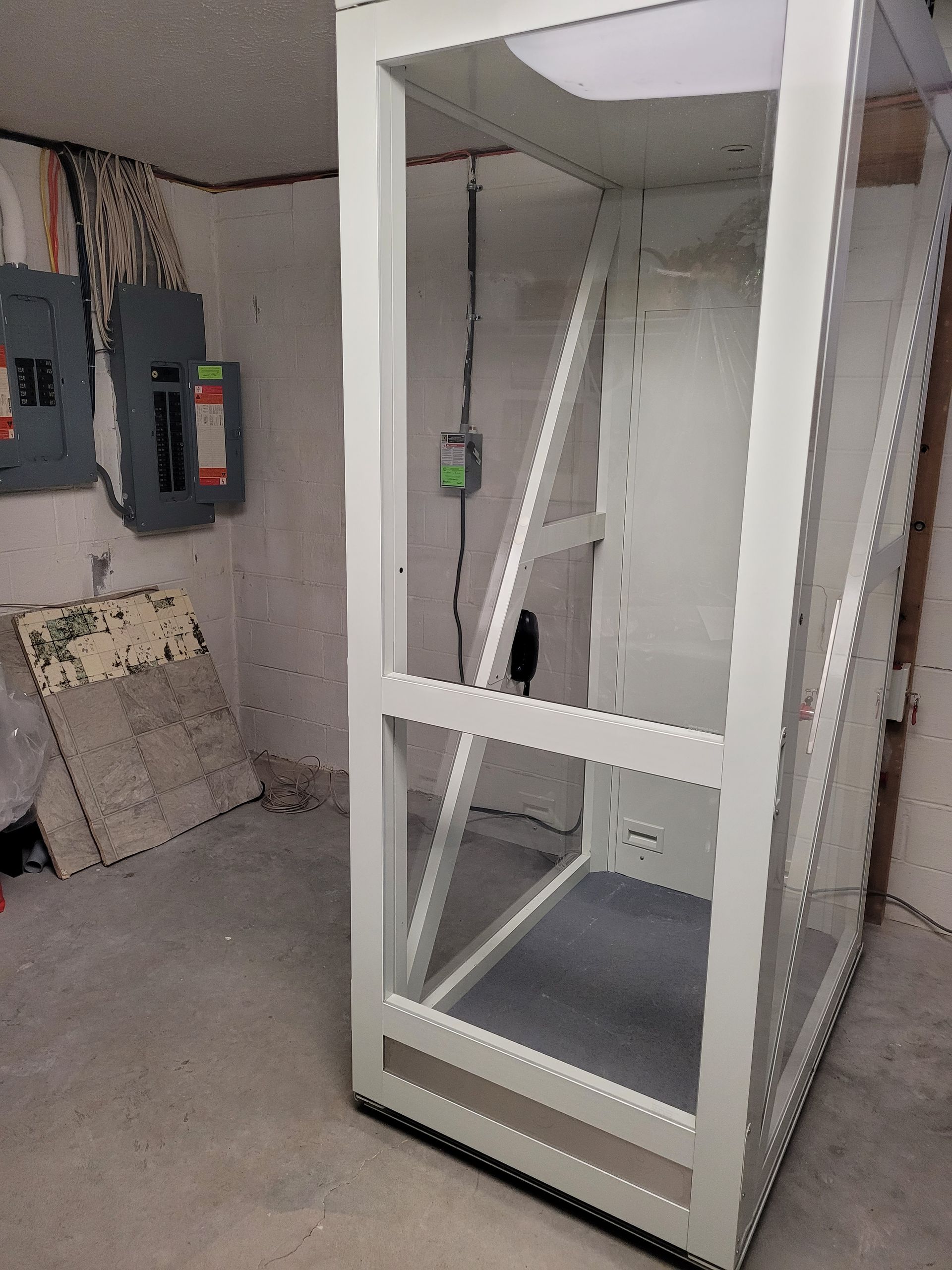

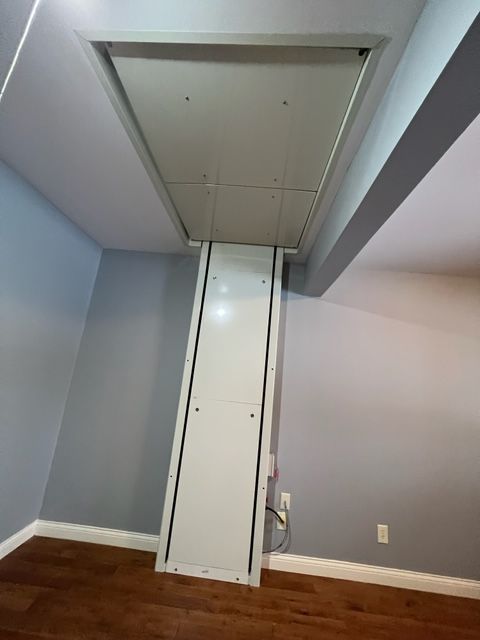

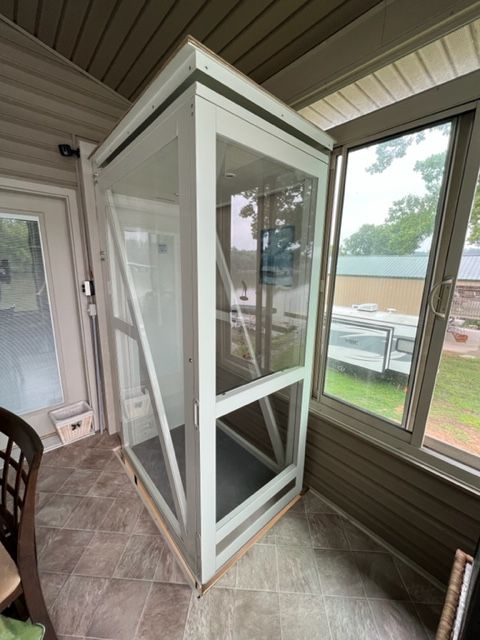

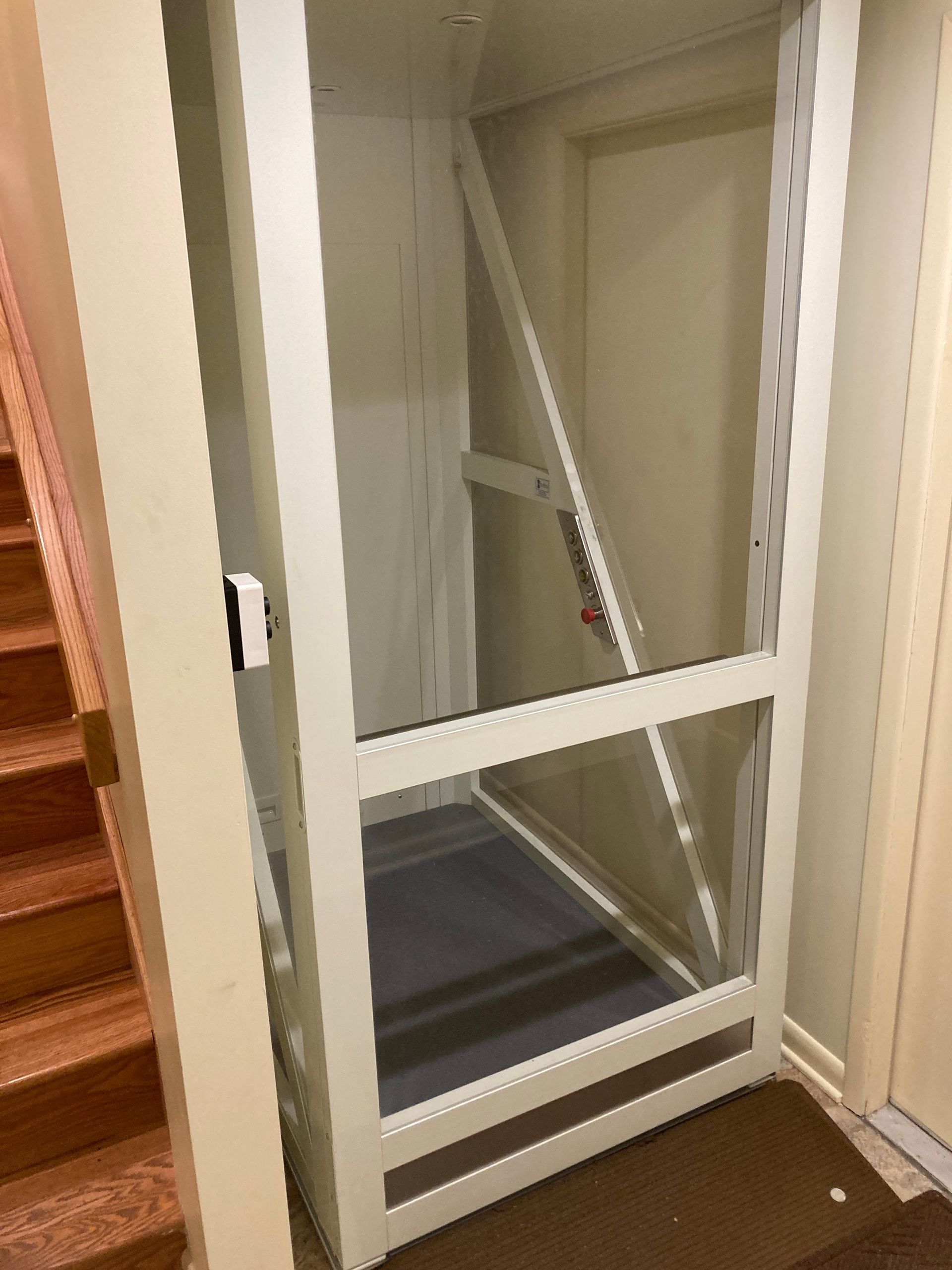

Product Gallery
