In Line Geared Drive - Pitless + Machine Roomless

FITS WHERE OTHERS WON'T

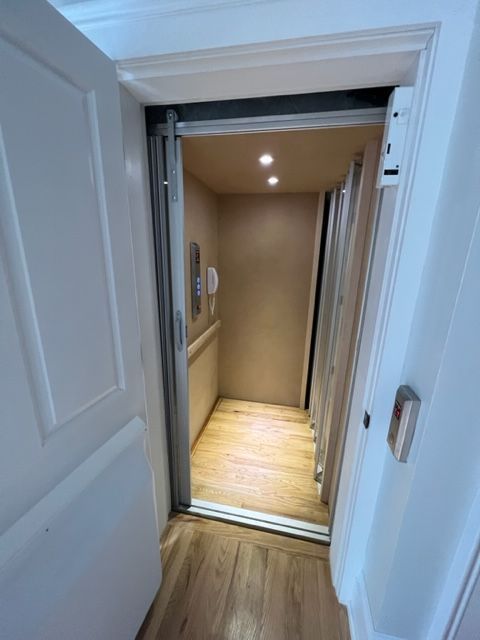

The Symmetry Inline Gear Drive home elevator does not require a machine room and has an option for no pit. This residential elevator is designed for hoistways in an existing home that will not allow for a pit due to site conditions. The pitless elevator is only available with the front same side opening cab.


Cibes Symmetry has more standard features available than any other residential elevator on the market. This machine room-less elevator system runs at a speed of 40 fpm, can serve two to six stops, has a rated capacity of 1,000 lbs and features standard ‘exclusive’ additions, including emergency battery-operated lowering, COP, and hall stations digital position indicators, custom wood sills and energy-efficient LED lighting. The endless options for customization make this home elevator a great choice.


Standard Features:

  • Capacity -  1,000 lb.
  • Pit - 6” or Pitless  Option (front opening cab only)
  • Travel Speed - 40 fpm
  • Travel Height - up to 50’-0”
  • Overhead for standard height cab - 8’-0”
  • Power Supply - 240V, 60hZ, single phase, 20 amp and 120V, 15 amp single phase

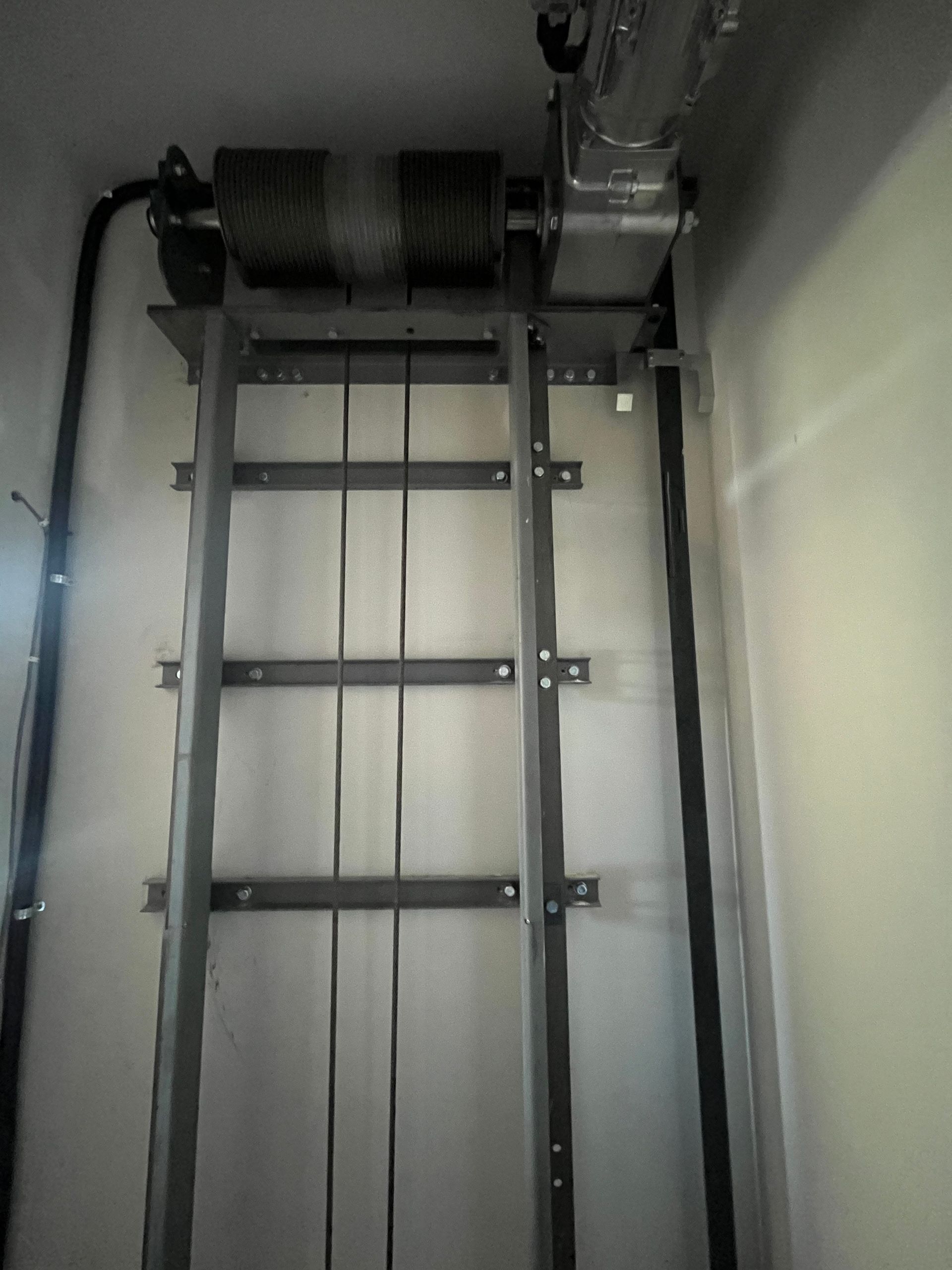

  • Drive - Inline Gear Drive with Counterweight and 2 HP motor
  • Cab Walls - Unfinished Birch or Red Oak flat veneer with matching ceiling
  • Handrail - Flat Wood to match
  • Floor - Unfinished plywood for finish by others
  • Two (2) Lights - Recessed LED
  • Gate - Accordion - Light Oak, Birch or White Panel Options
  • Slimline Phone

Options:

  • Shaker or Recessed Panel Cab with Flat Ceiling
  • Shaker or Recessed or Raised Panel Cab with Matching Ceiling
  • Custom Wood Interiors
  • Factory Finished Cab
  • Automatic Doors & Gates - 2 Speed & 3 Speed Panels
  • Accordion Gate - Dozens of Customizable Panel Options
  • Automatic Gate - 3 Panel Cab Door
  • Automatic Gate Operator - Accordion Gates Only
  • Enterprise Collapsible Gates
  • Phone Box
  • Car Operating Panel with Integrated Phone

Installation

Professional Measure + Installation available in the following areas:


Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.

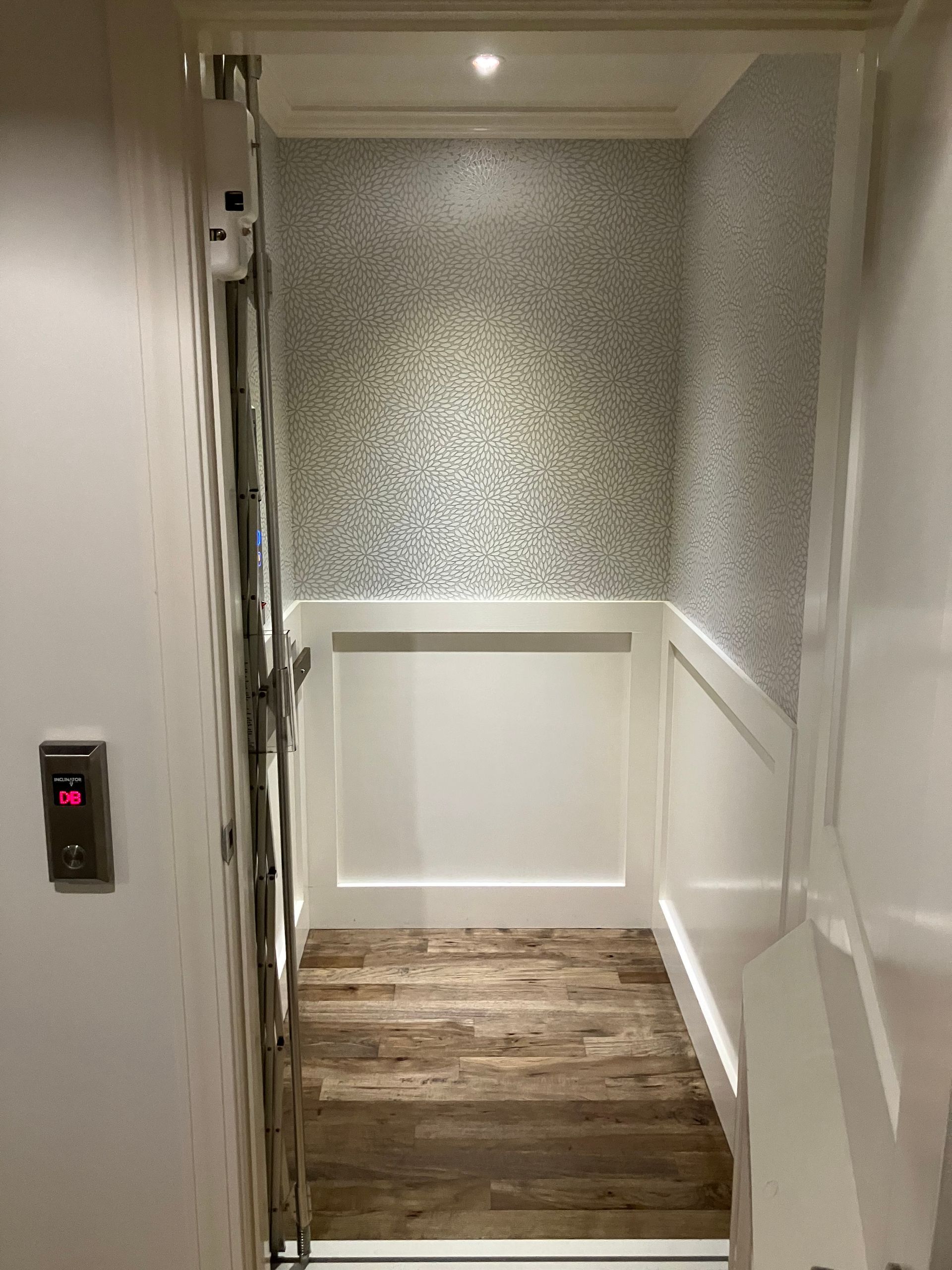

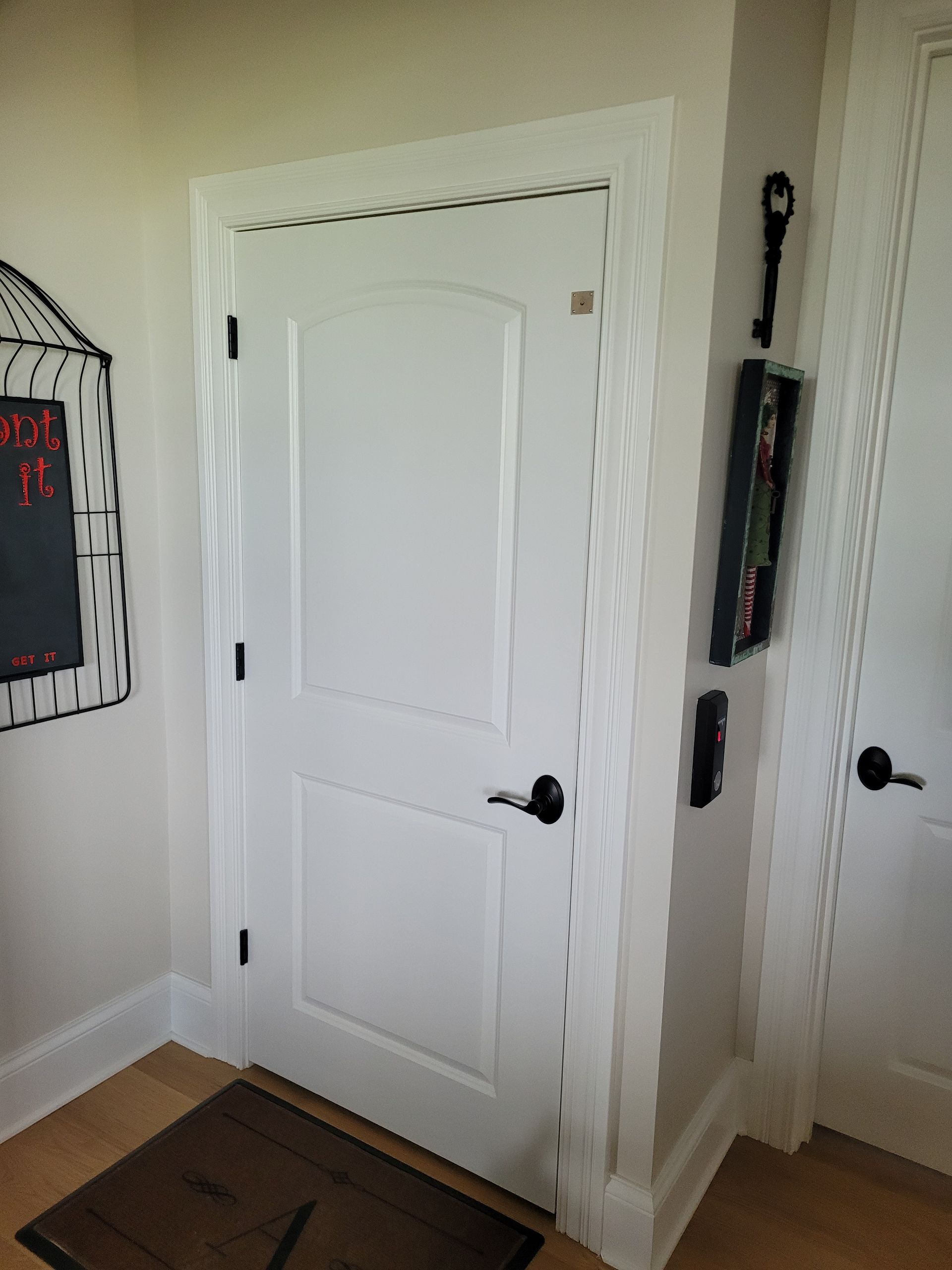

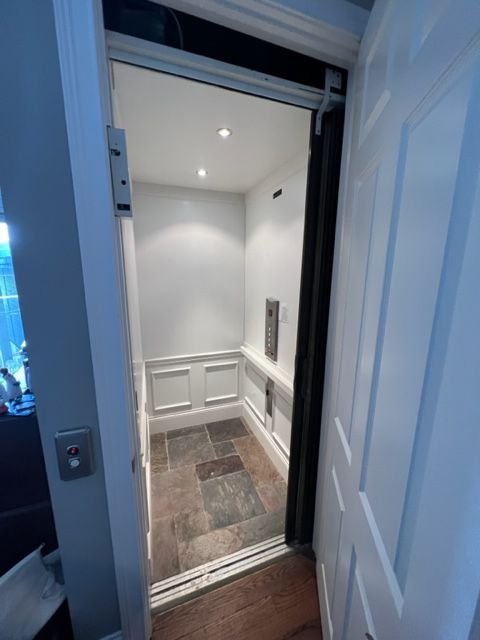

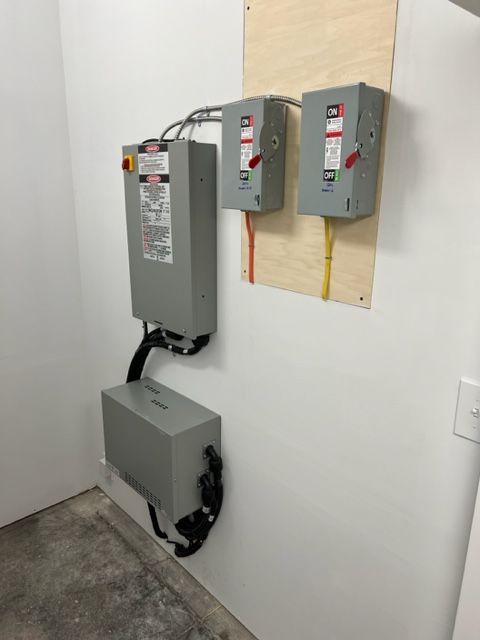

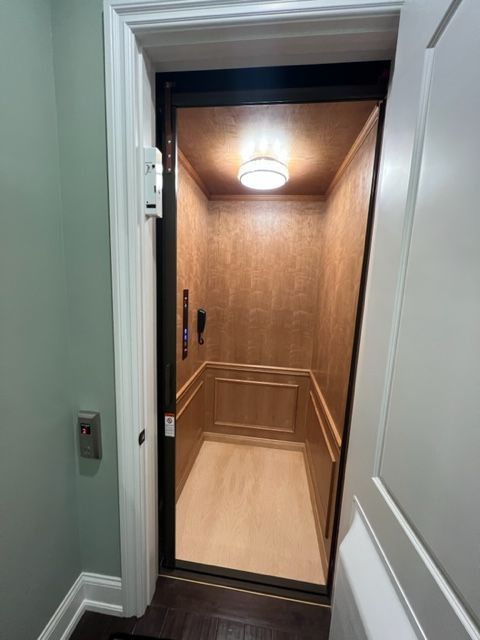

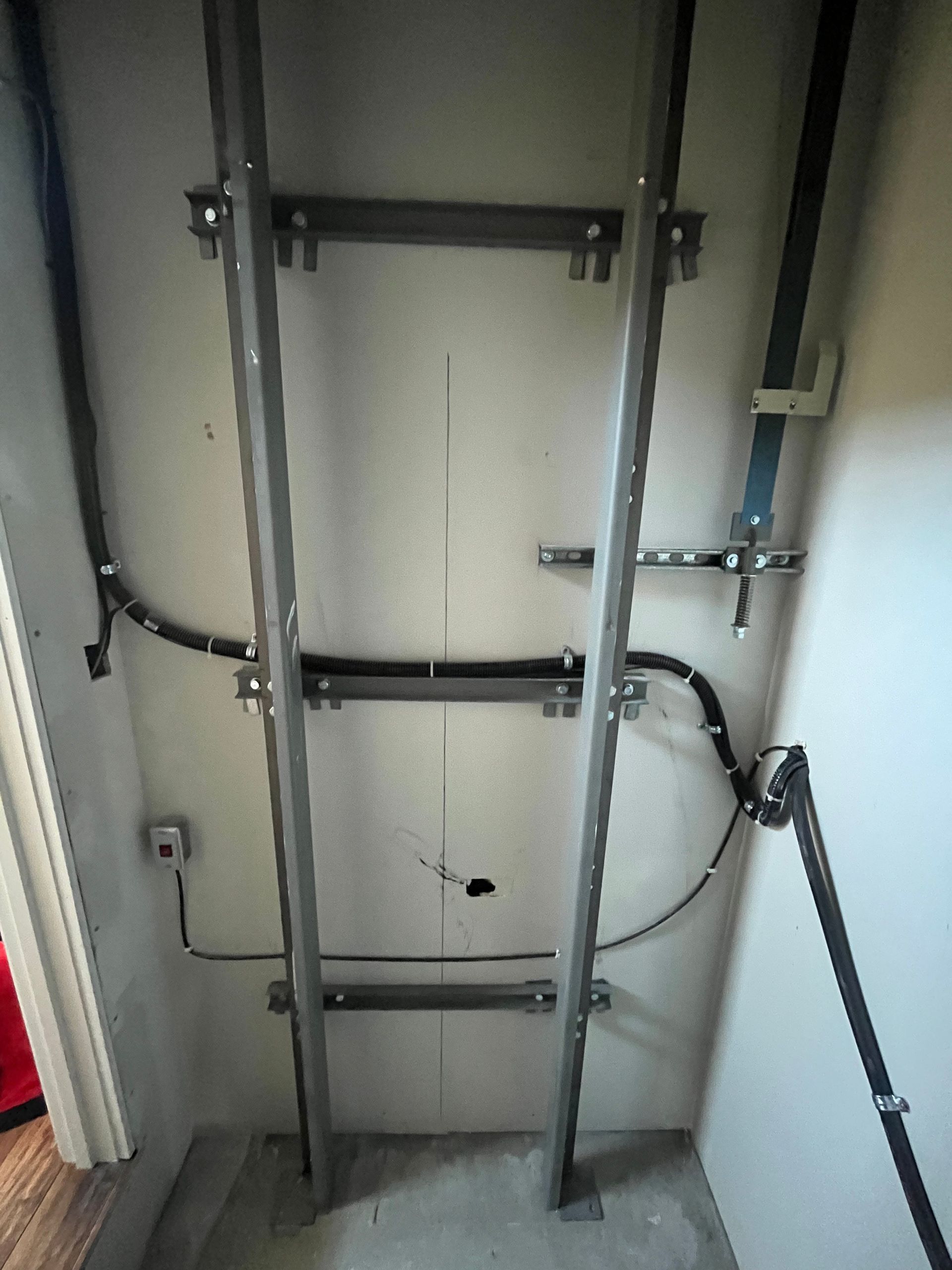

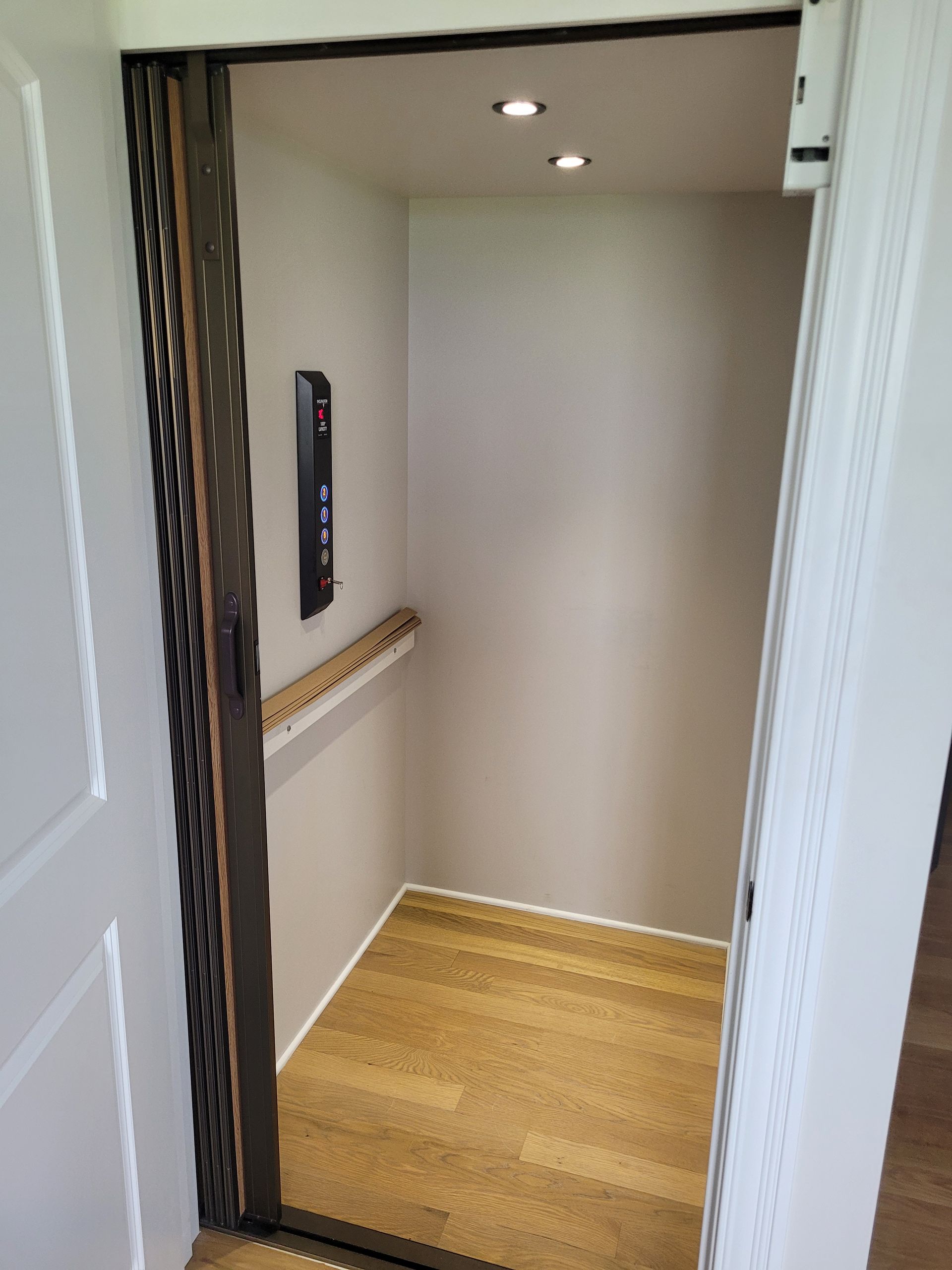

Product Gallery
