For a new construction home or a home that can accommodate adding a pit, this elevator is ideal. Typically, we will install the machine room in your attic or basement. A winding drum elevator is durable to last many years and will improve your home’s value. This option typically has the lowest maintenance required over the life of the elevator.

Elevette® Cable Drum

​This elevator is perfect for new construction or existing where adding a pit is not an issue.  The typical Machine Room in the basement or attic,  Winding drums typically have a very long life and can be a great value while delivering an exceptional ride quality.



Standard Features:
  • 1,000-lb. (453 kg) capacity with up to 18 sq. ft. (1.67 sq. meters) cab size – where allowed by code
  • 500-lb. (226 kg) capacity with up to 15 sq. ft. (1.39 sq. meters) cab size – where allowed by code
  • Up to 40 ft. (12.19 meters) per minute travel speed
  • Travel up to 50 ft. (15.24 meters)
  • Can accommodate up to 6 landings
  • Emergency battery lowering
  • Cab gate & door safety devices
  • Two Type A safety devices
  • Overrun switch
  • Slack cable disconnect
Installation Information:

Professional Measure + Installation available in the following areas: Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Central Kentucky, Eastern and Southern Ky.

Options:

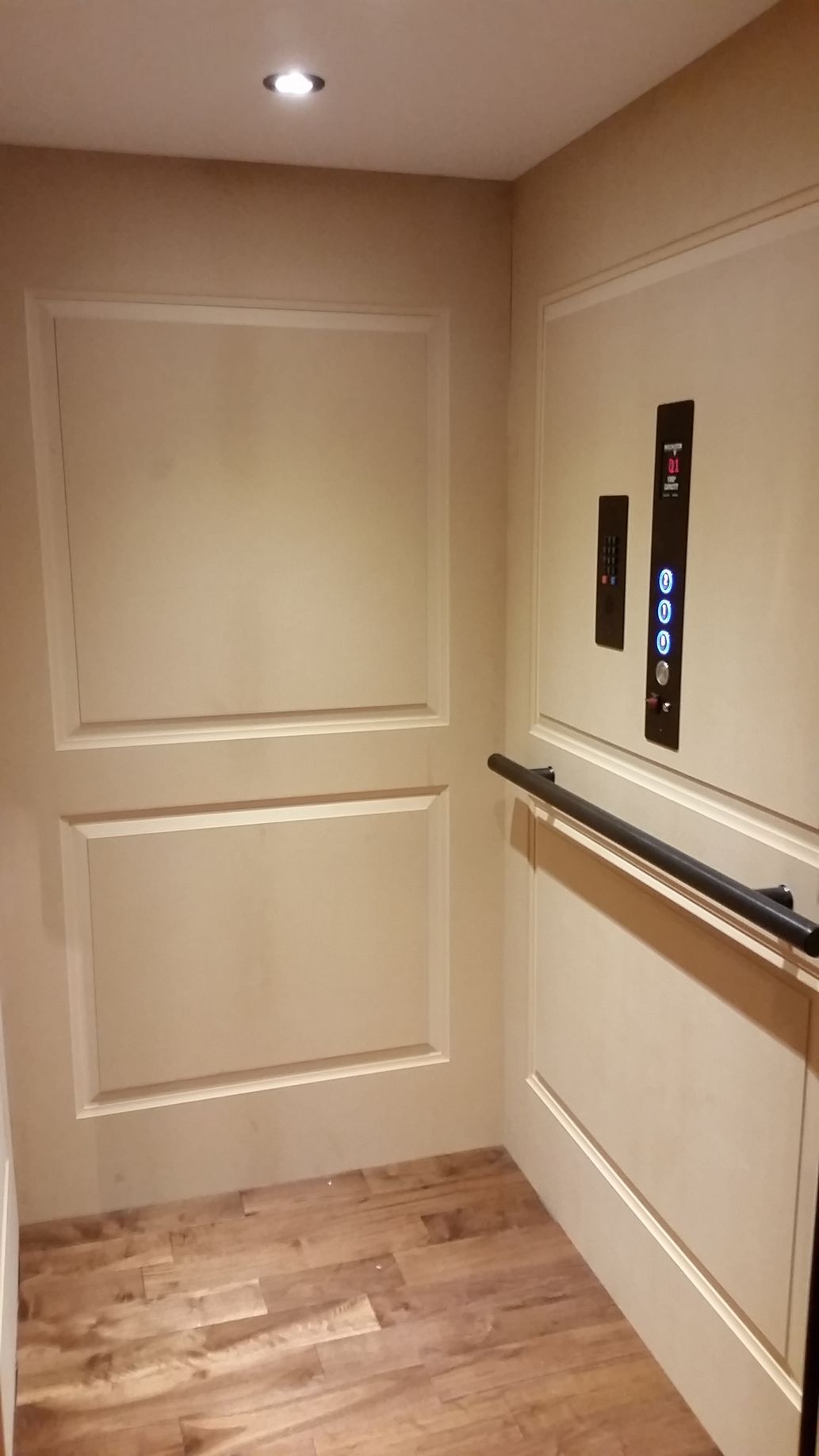

  • Walls - Just about any wood species available can be used for 400, 300 and 200 Cabs. The majority of cabs are made using hardwoods and veneers in one of our popular woods – available in semi-gloss coat or satin finish. Other premium, exotic woods can be used. Most cabs are finished in the factory, but they can remain unfinished for on-site, custom finishing.
  • Floors - Inclinator elevators include commercial-grade laminate flooring with simulated wood grain finish and plank design. Unfinished oak veneer flooring is available to accommodate on-site flooring.
  • Ceiling - Elevator ceiling can be white laminate or any of the wall veneers or hardwoods. 100 Cab in white laminate.
  • Handrails - One flat wood handrail, finished to match walls, is standard. Optional round metal handrail, in one of these finishes is available.
  • Lights - Elevator comes with two LED ceiling lights in one of two acrylic finishes shown. Lights illuminate when door opens and elevator is running.

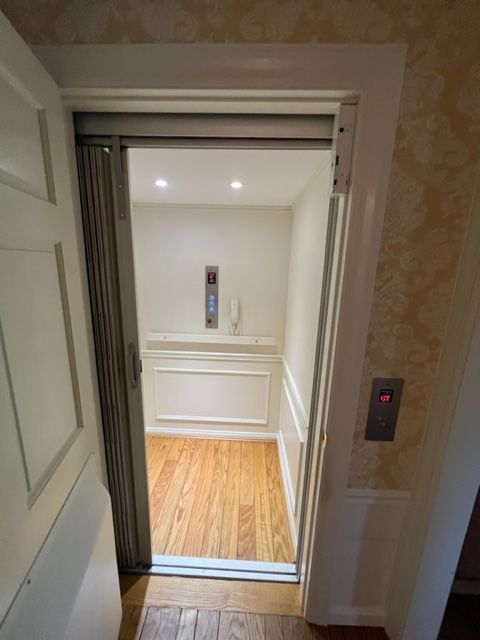

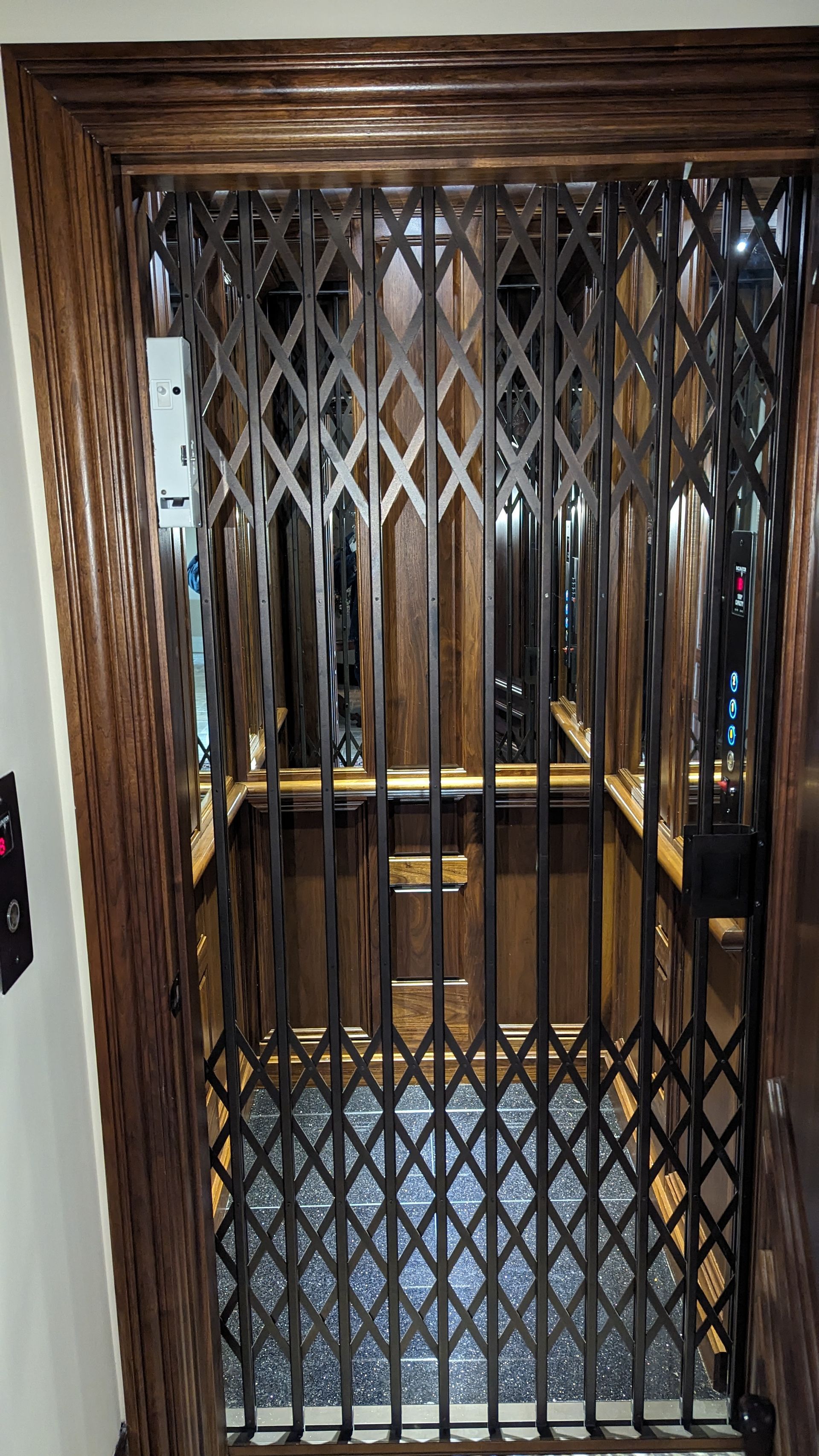

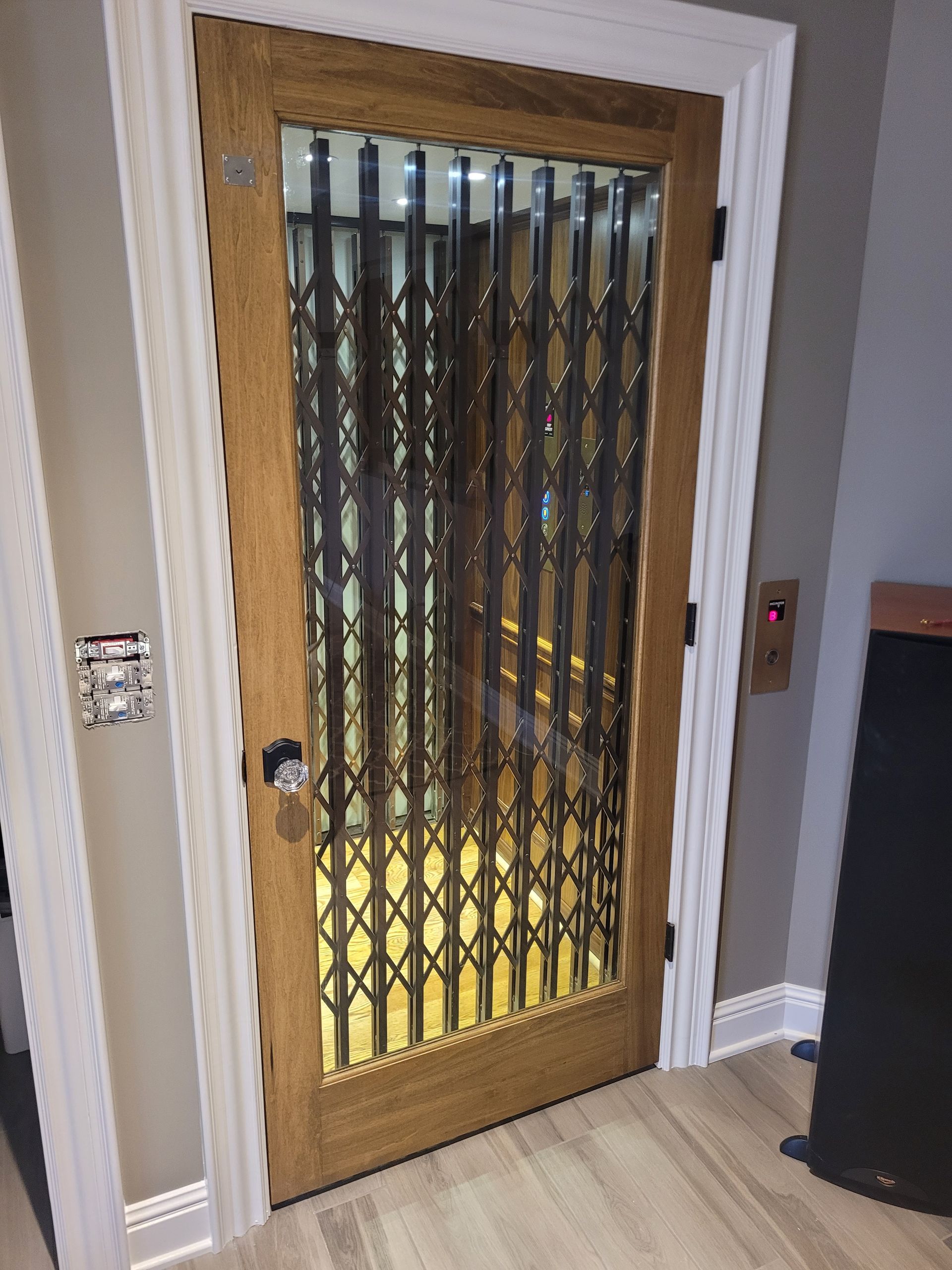

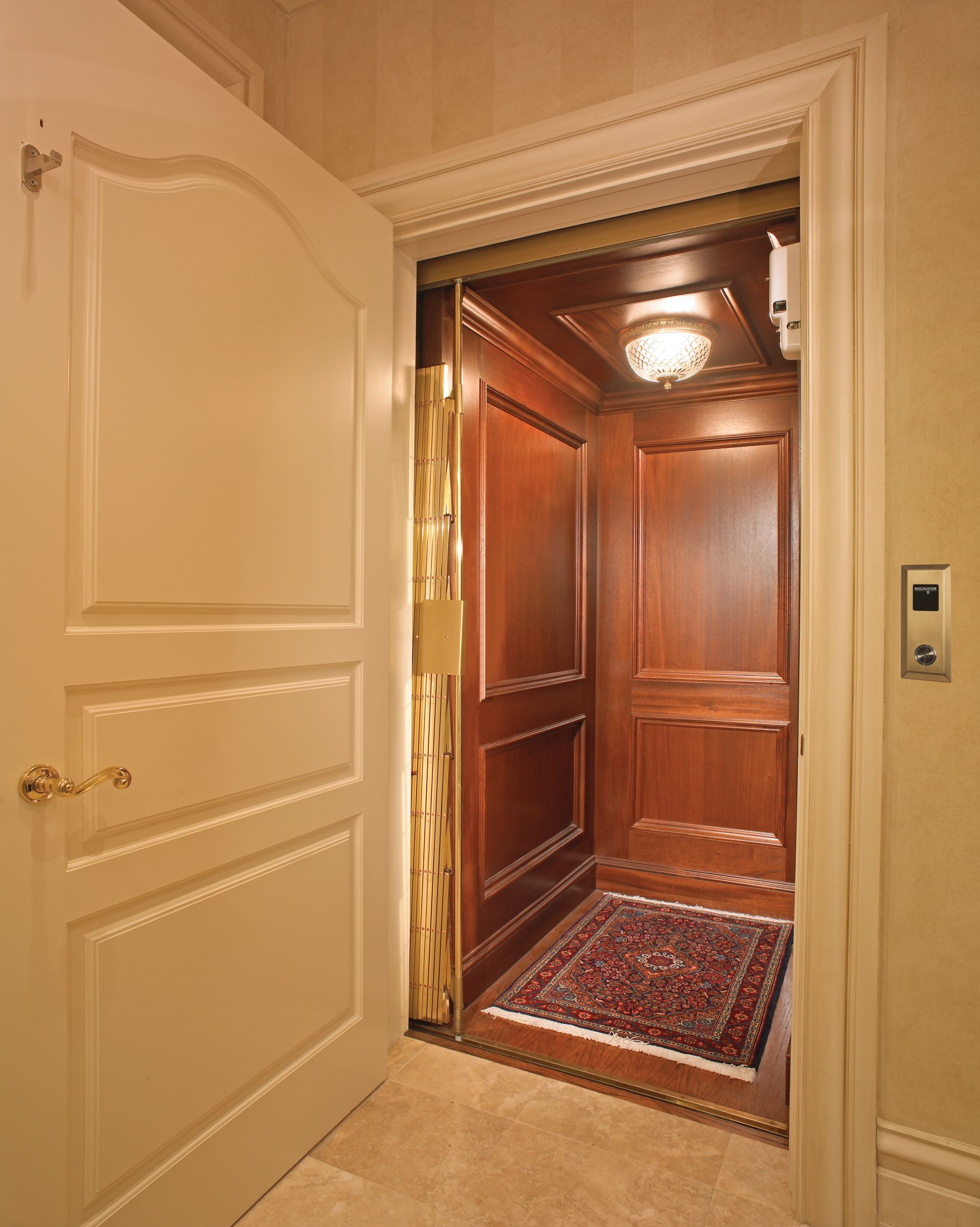

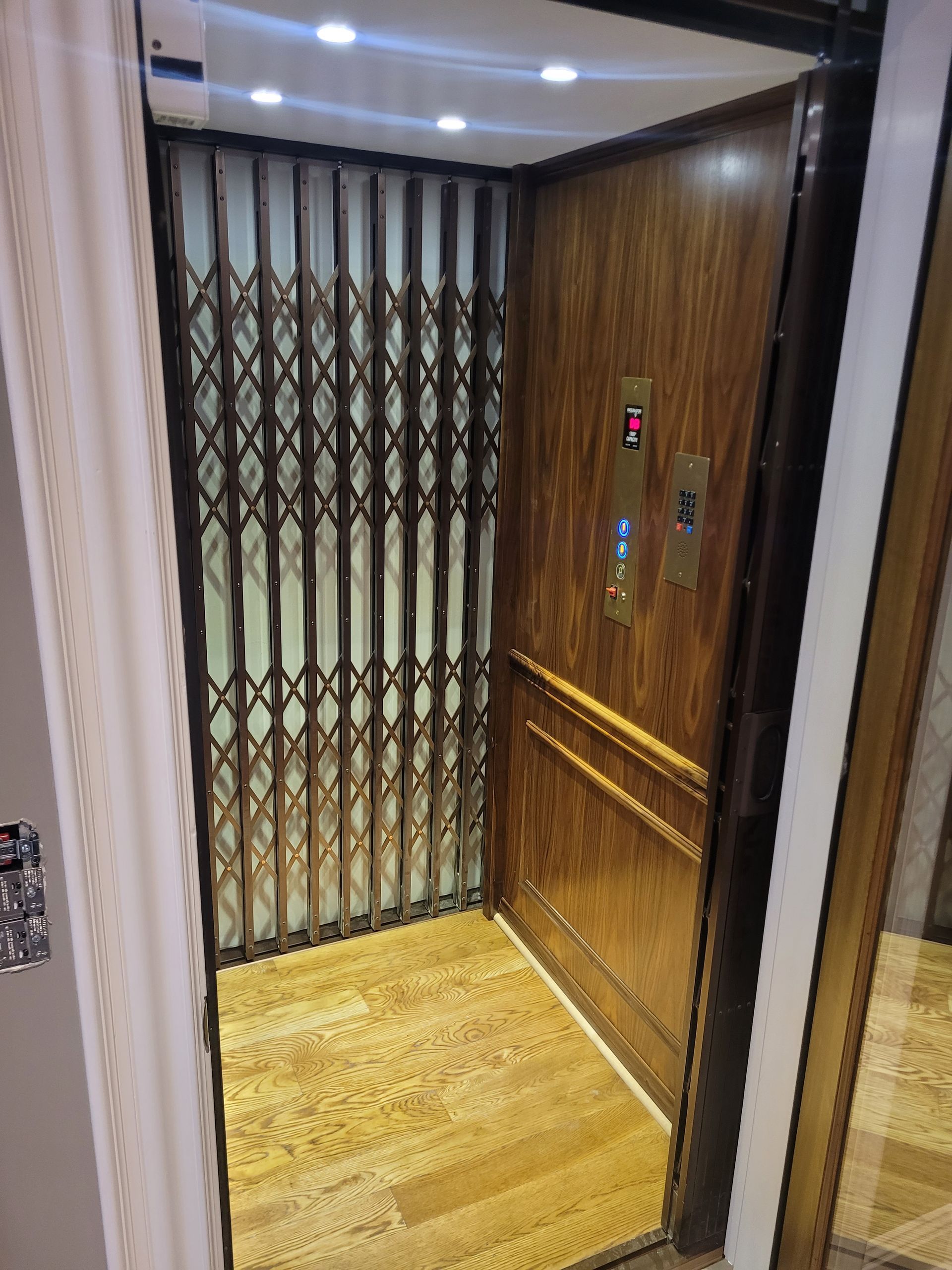

  • Gates - Elevator comes with a collapsible or accordion fold gate. Vinyl laminate panels are standard for accordion fold gate. Hardwood and acrylic panels are available. Automatic gate operator is available (accordion fold gate required). Extruded gate track matches metal finish on either gate option.

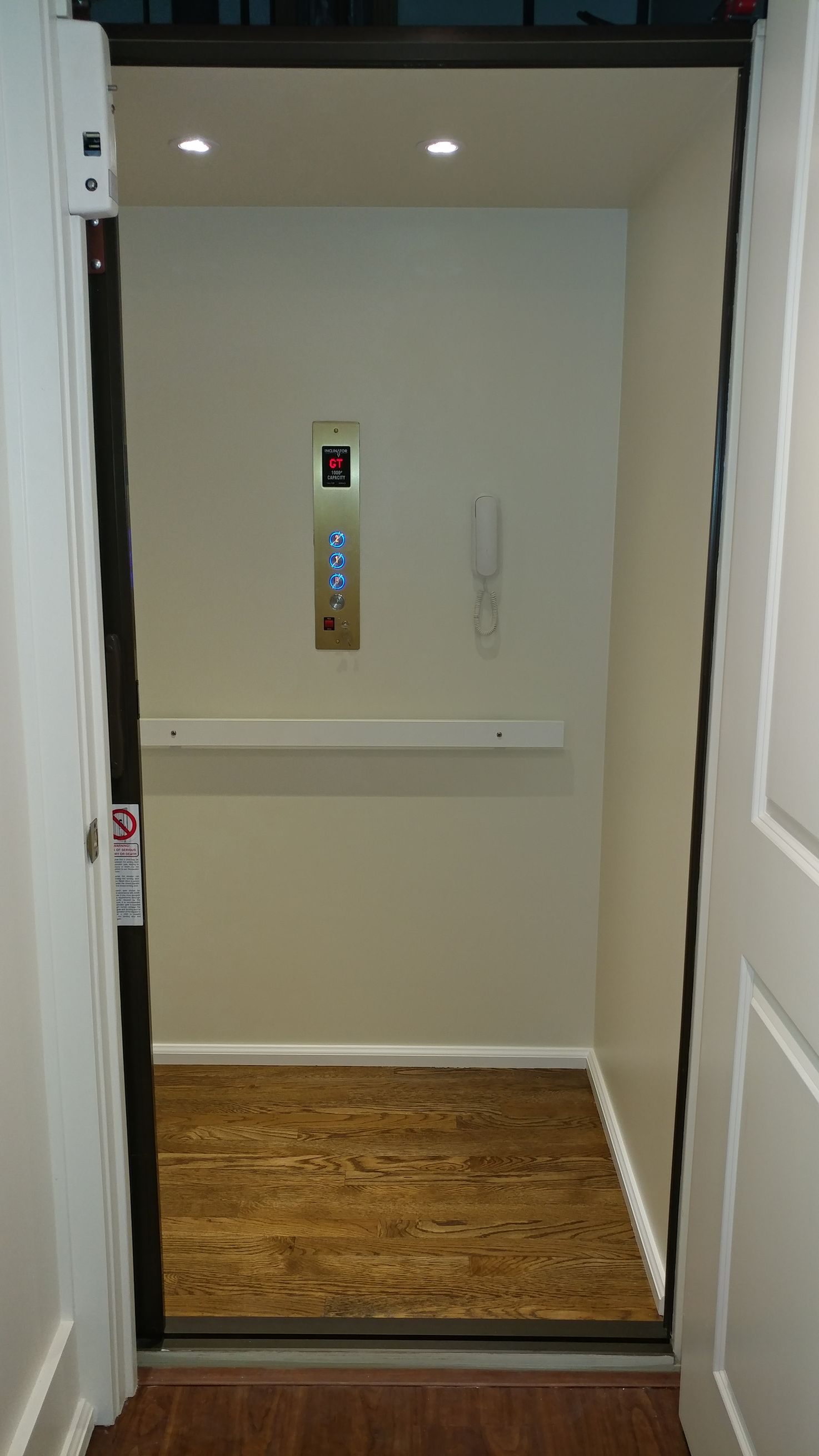

  • Cab Operating Systems - Each elevator includes a Cab Operating Panel. The faceplate will vary depending on the number of elevator landings. Emergency light and bell are standard. A Hall Station is placed on each landing by the elevator door. All are available in one of three finishes.
