Elevette Cable Drum - Machine Room

RELIABLE  QUALITY THAT LASTS

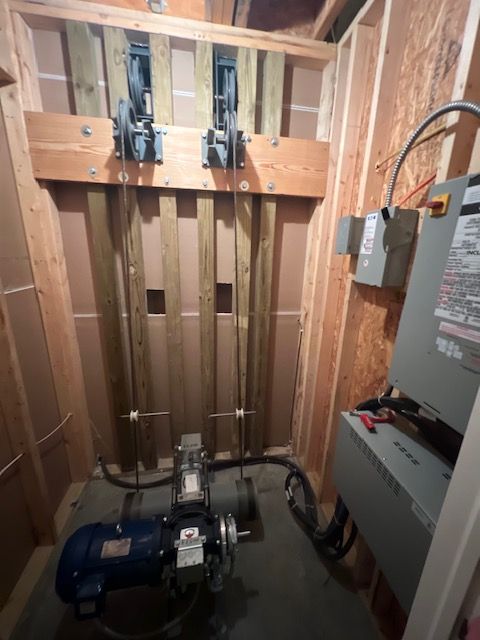

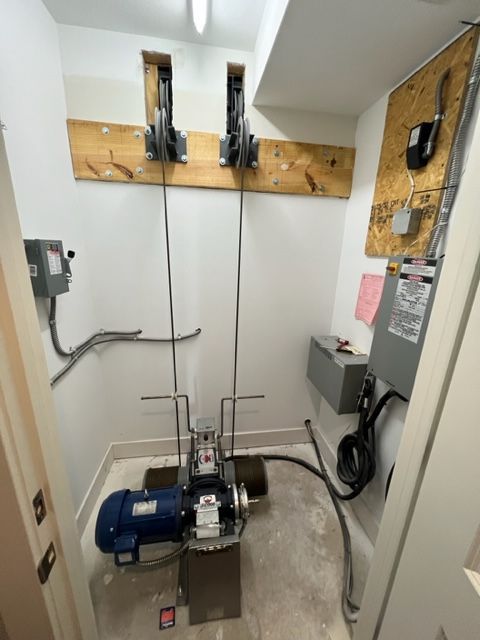

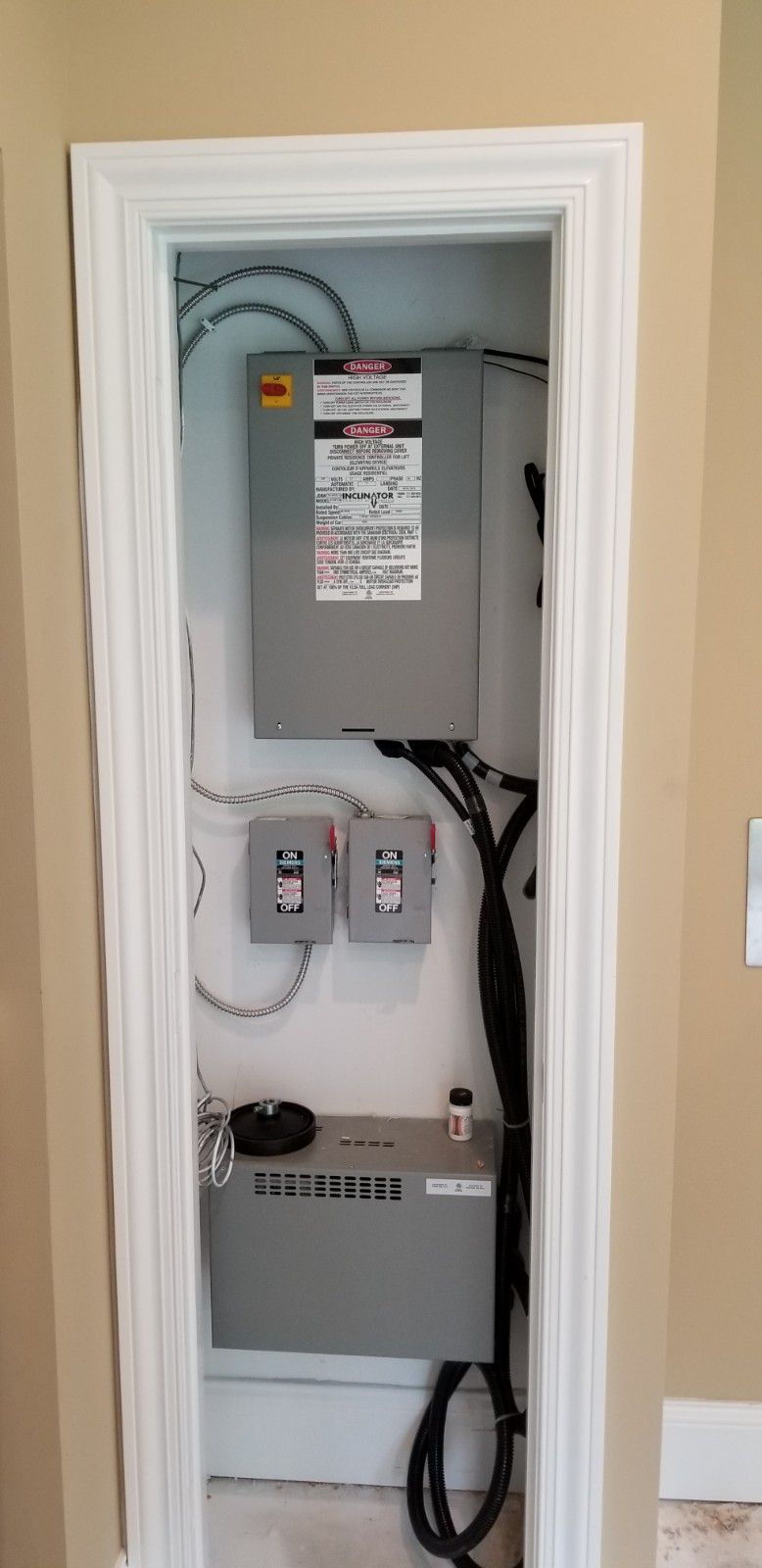

Inclinator designed the first home elevator in 1928, and named it “Elevette”. The Elevette residential elevator is skillfully hand-made and finished one-at-a-time, making customization possible.  While this elevator does require a machine room for the mechanicals, there are multiple location options near the hoistway at any level including the attic. The winding drum system is low maintenance and will last a lifetime with regular maintenance. Homeowners appreciate the Inclinator Elevette’s beauty and reliable performance while architects, builders and designers love the design possibilities for new construction and existing home additions or remodeling projects!


Safety Features included:  Emergency light, alarm, battery lowering and manual lowering, upper and lower final limits, slack rope switch, pit switch, automatic cab lights, doors and gates electrically and mechanically interlocked.


Standard Features:

  • Capacity - 1,000 lb

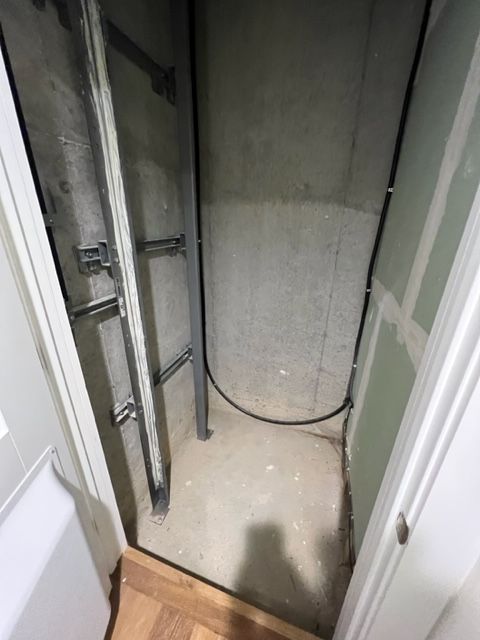

  • Pit - 10”
  • Travel Speed - 40 fpm
  • Travel Height - up to 50’-0”
  • Overhead for a standard (80”H) cab - 8'
  • Power Supply - 208- 240V, 60hZ, single phase, 20 amp and 120V, 15 amp single phase

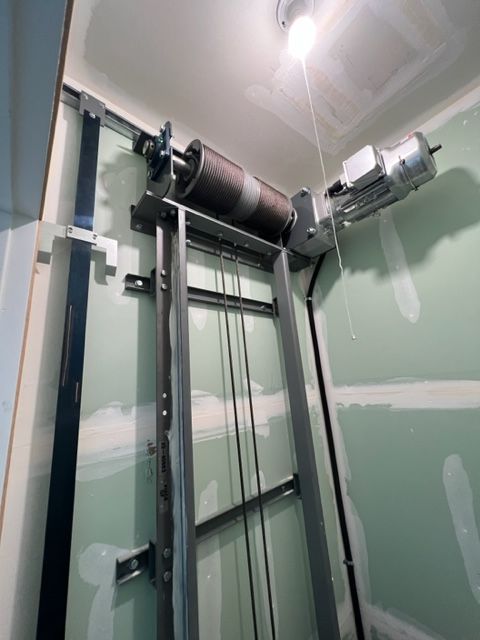

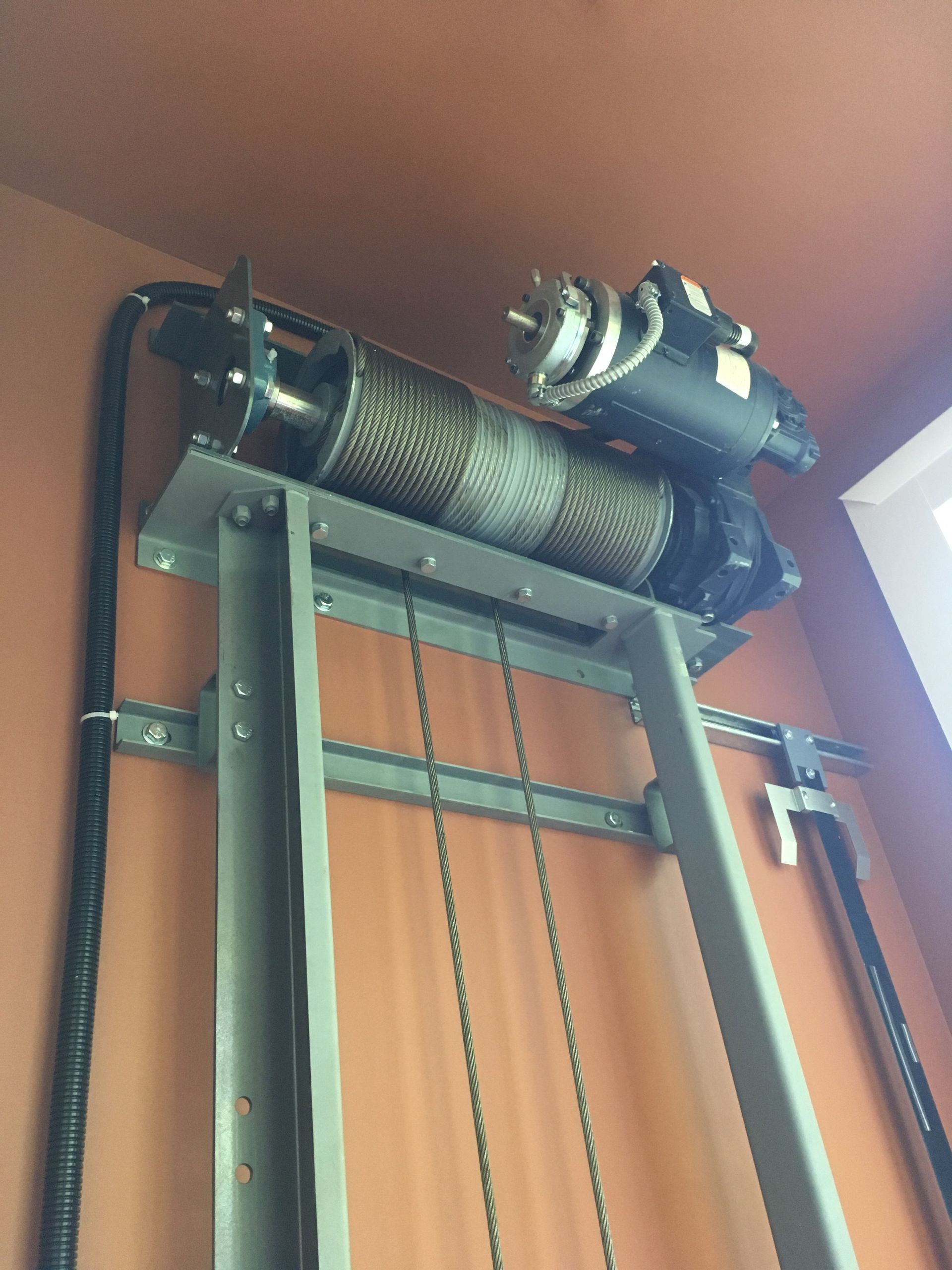

  • Drive - Cable Drum - 3 HP motor

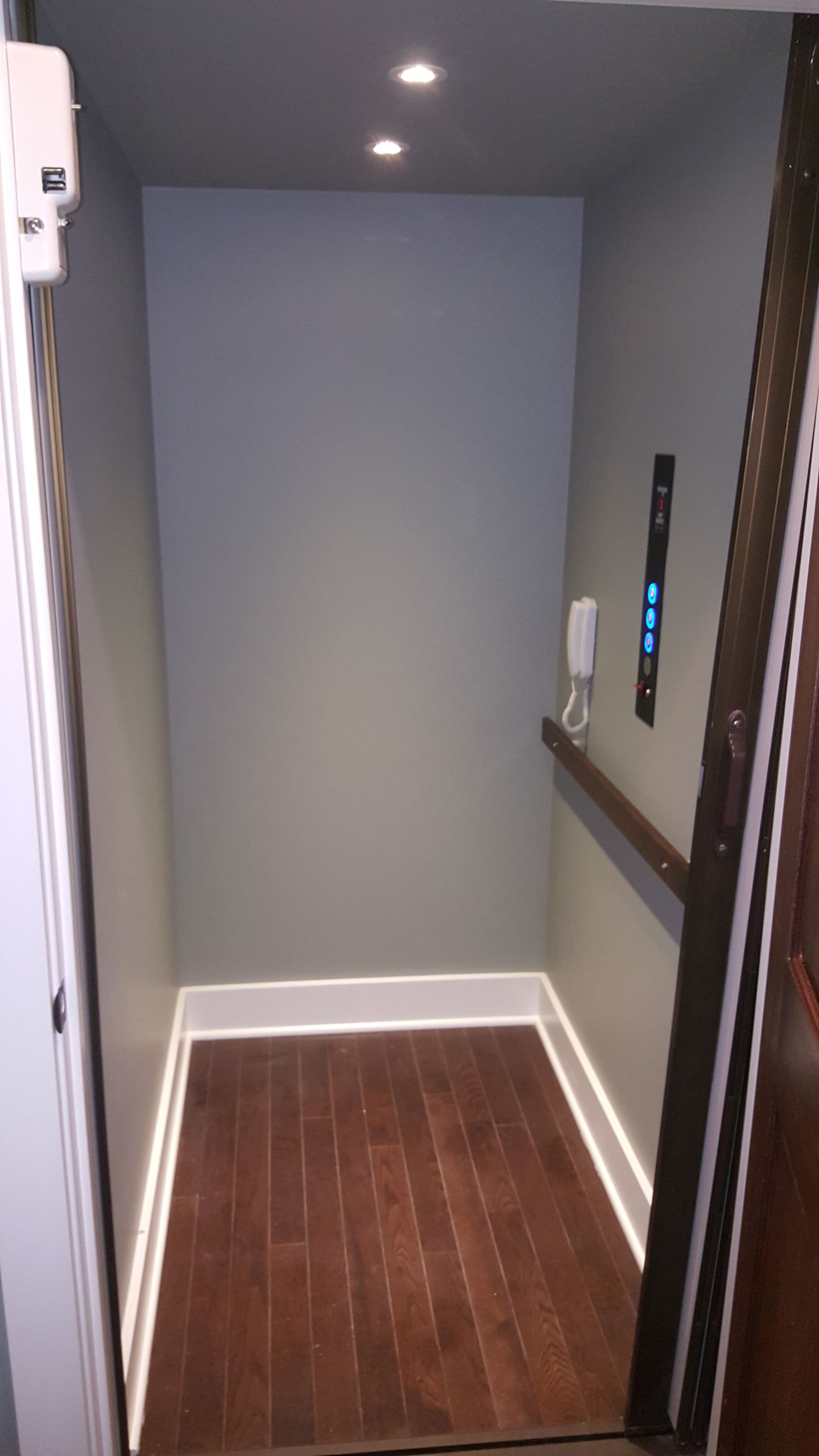

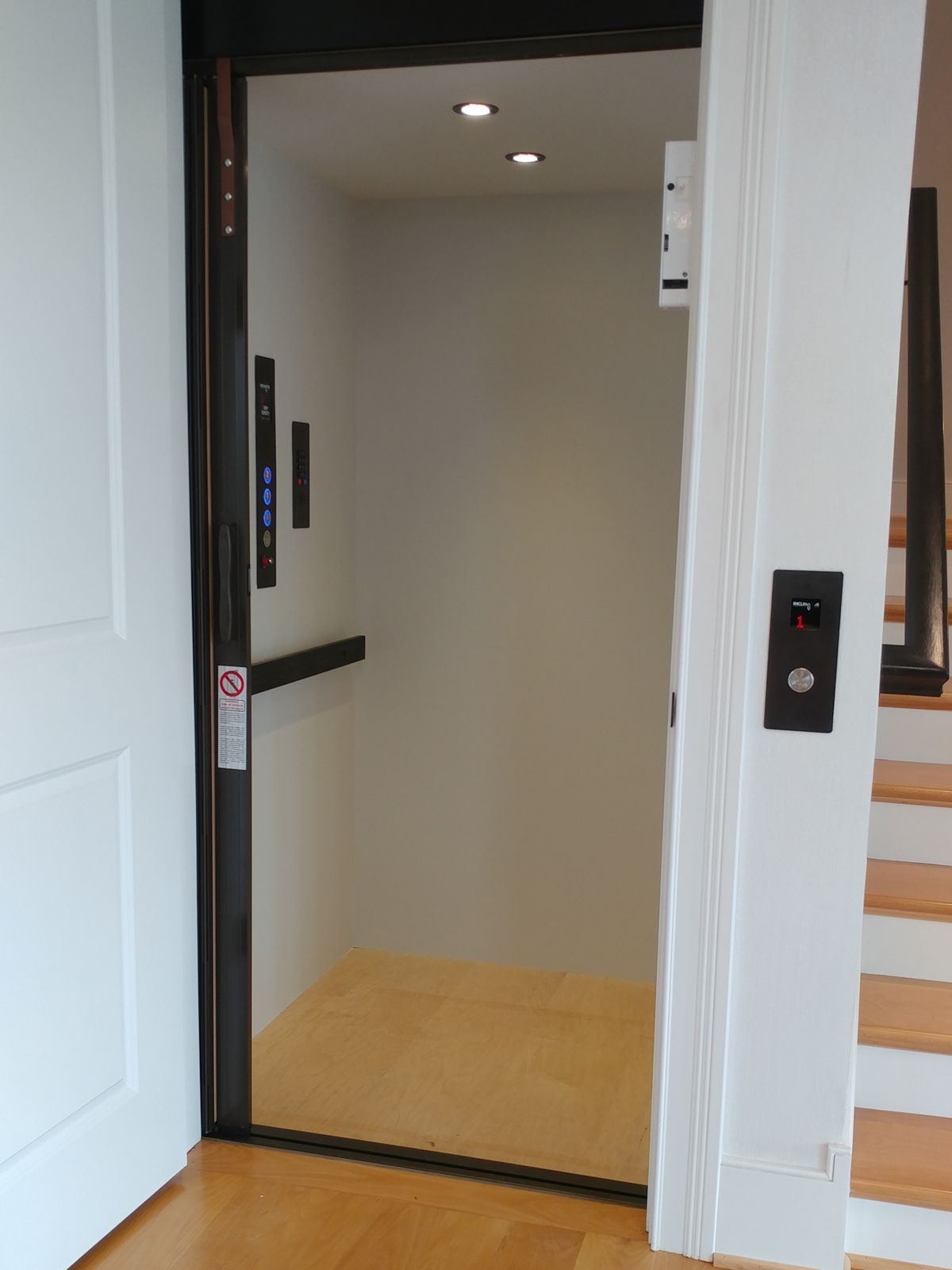

  • Cab - Custom Size - max 15 sq ft. / min  28”W x 28”D
  • Cab Walls - Paintable MDF (100 Series Cab)
  • Handrail - Flat Wood
  • Floor - Unfinished Maple Wood Veneer for finish by others
  • Two (2) Lights - Recessed LED

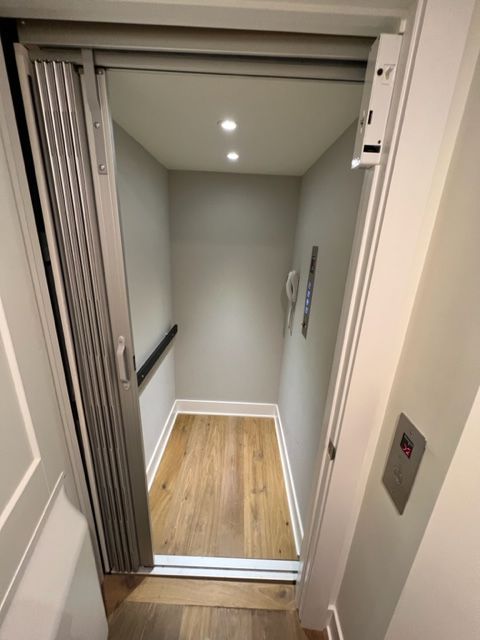

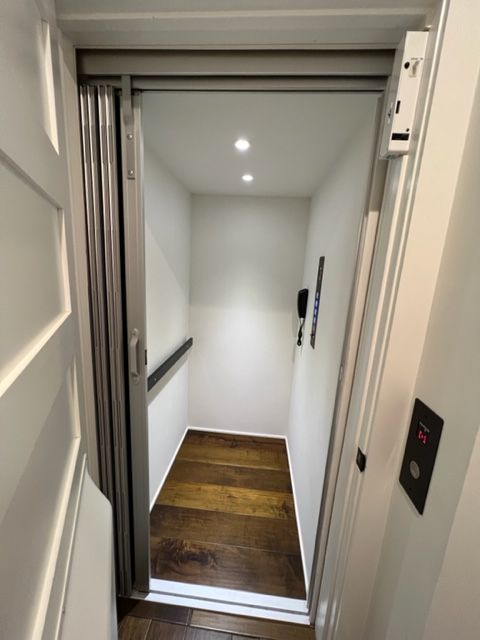

  • Gate - Accordion - Multiple panel options
  • Slimline Phone
  • Homing Device
  • Proprietary Control System with Dumbwaiter Feature
  • “Smart”  - COP and Hall Call Stations with Floor, Door, Gate indicators.

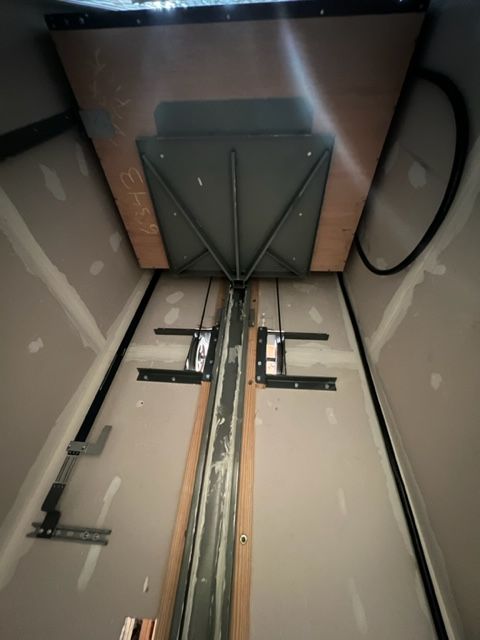

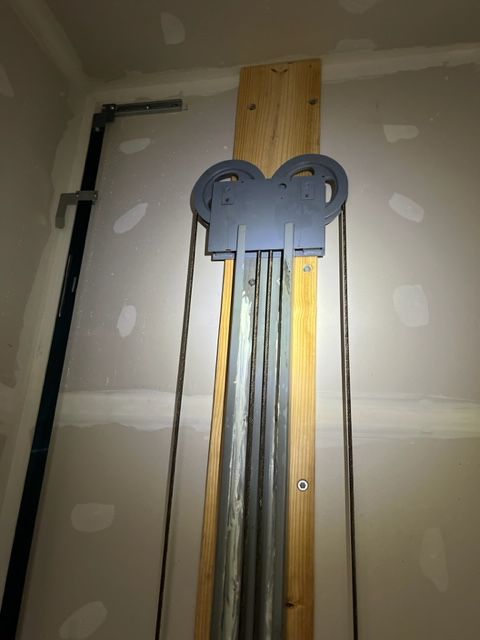

  • Auxiliary Guide and Rail and Rollers for Superior Cab Stability

Options:

  • Capacity - 500 lb. with a min 6” Pit
  • 200 Series Cab - Unfinished Wood Veneer
  • 250 Series Cab - Unfinished Wood Veneer - Shaker Style
  • 300 Series Cab - Unfinished Wood Veneer with Moldings

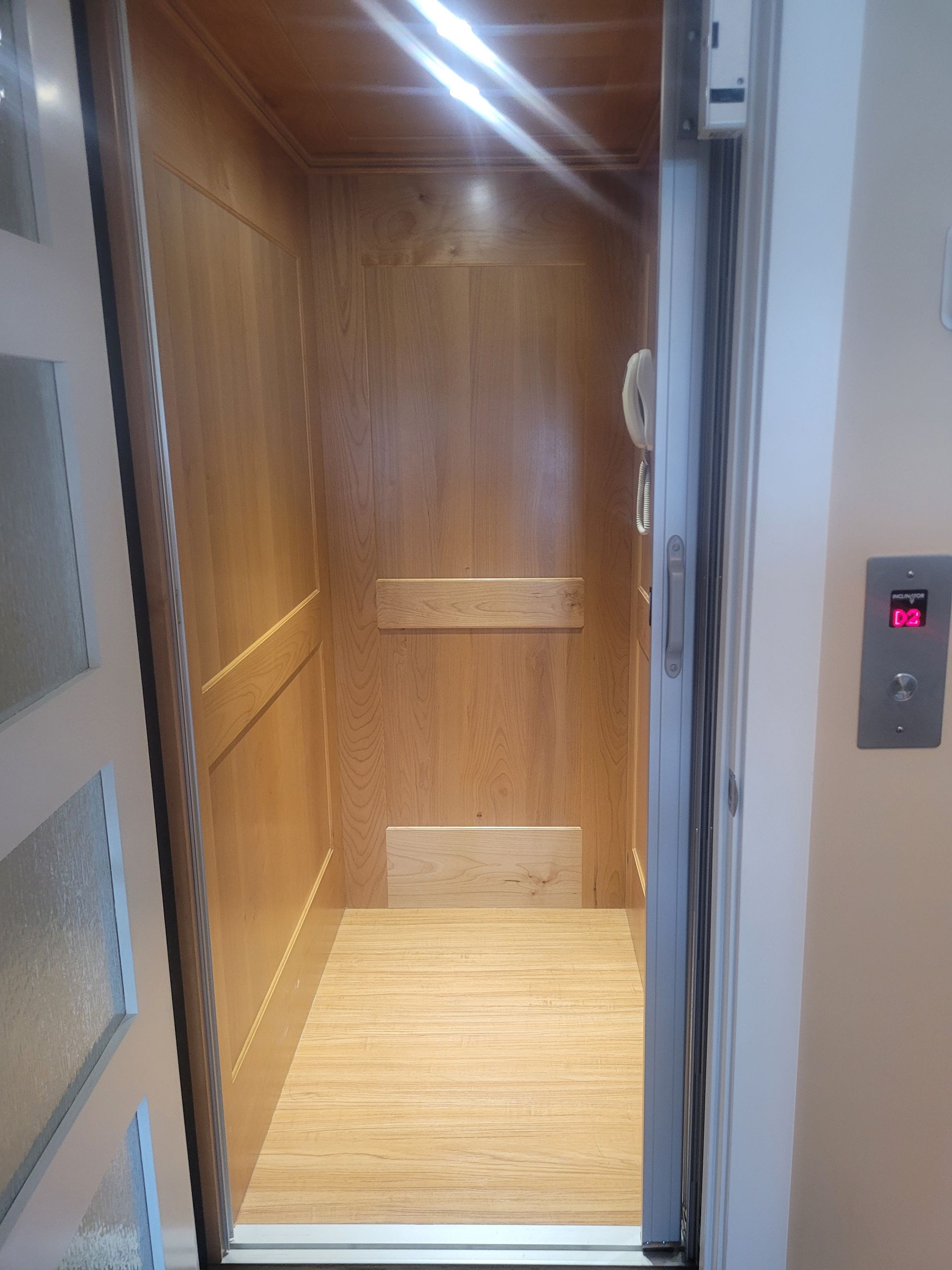

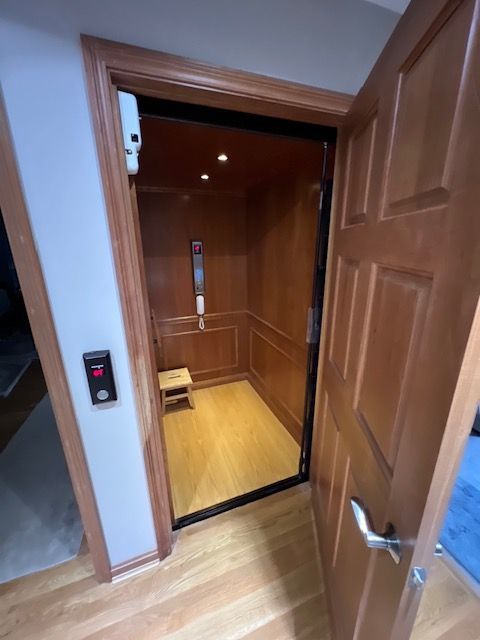

  • 400 Series Cab - Solid Hardwood - Recessed or Raised Panels
  • 500 Series Cab - Aluminum Frame with Acrylic Windows
  • Factory Finished Cab
  • Automatic Doors & Gates - 2 Speed & 3 Speed Panels

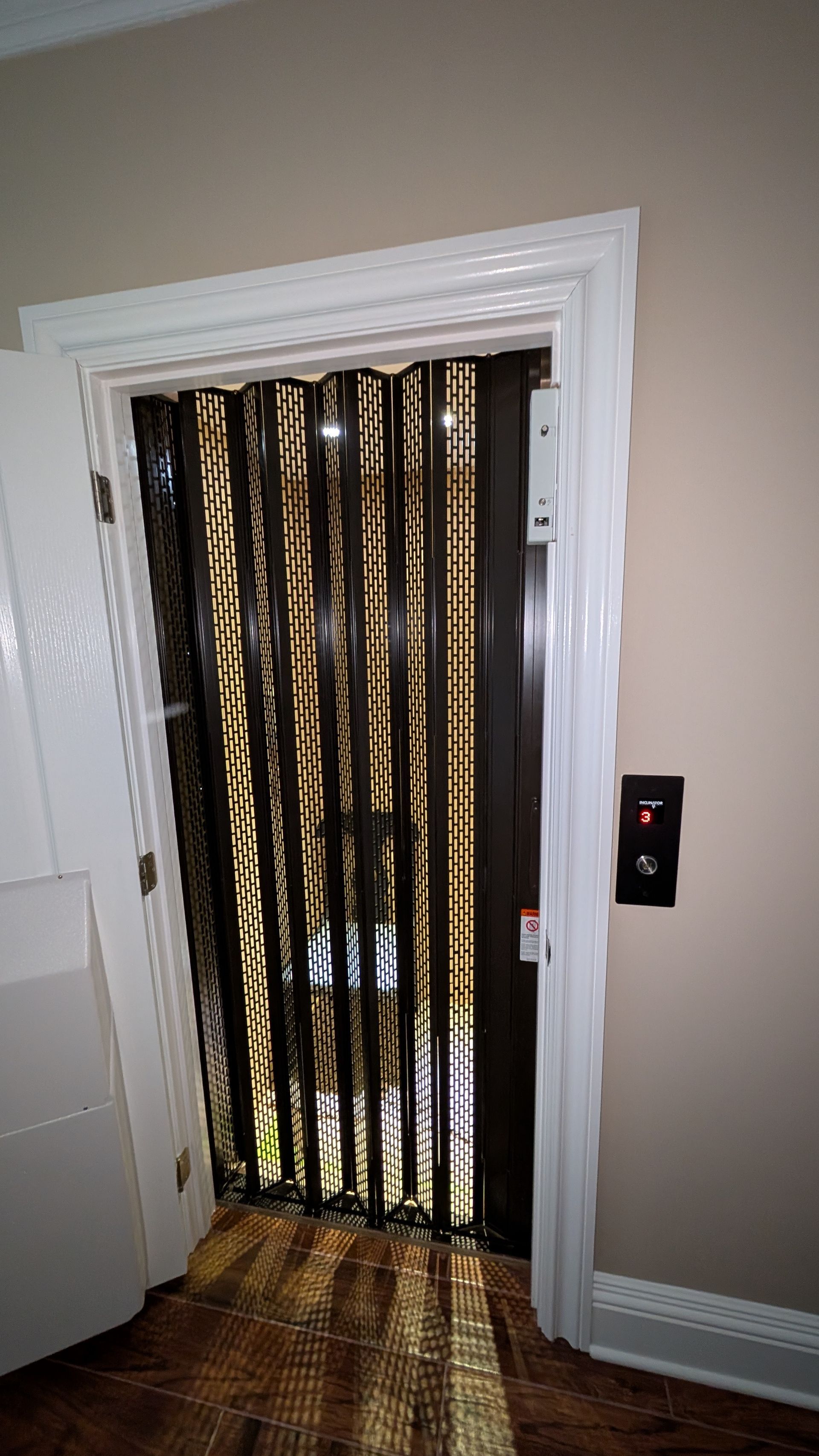

  • Accordion Gate - Dozens of Customizable Panel Options
  • Automatic Gate Operator - Accordion Gates Only
  • Collapsible Gates
  • Flush Mount Speaker Phone

Installation

Professional Measure + Installation available in the following areas:


Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.
