Elevette Overhead Cable Drum Drive - Machine Roomless

BEST IN THE INDUSTRY

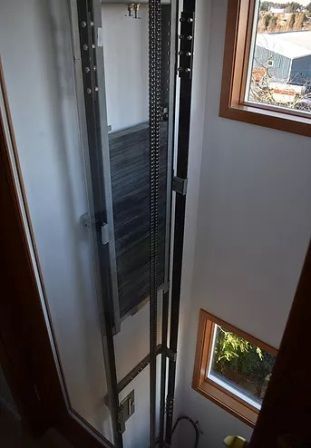

Built for a quiet, smooth ride, the MRL overhead cable drum drive system runs on two custom-formed guide rails for increased stability. Featuring the lowest minimum distance between floors, the MRL overhead cable drum drive system is perfect for split level homes. The winding drum system is low maintenance and will last a lifetime with regular maintenance.


Homeowners appreciate the quality and builders, designers, and architects love the design possibilities in existing homes, new construction and additions. Every Inclinator product is skillfully hand-made and finished one-at-a-time, making customization possible. Inclinator is the best name in the industry!


Safety Features included:  Emergency light, alarm, battery lowering and manual lowering, upper and lower final limits, slack rope switch, pit switch, automatic cab lights, doors and gates electrically and mechanically interlocked.


Standard Features:

  • Capacity -  1,000 lb.
  • Pit - 8”
  • Travel Speed - 40 fpm
  • Travel Height - up to 40’-0”
  • Overhead for a standard (80”H) cab at 40 fpm - 8' 9"
  • Overhead for a standard (80”H) cab at 30 fpm - 8' 6"
  • Power Supply - 208- 240V, 60hZ, single phase, 20 amp and 120V, 15 amp single phase
  • Drive - Overhead Cable Drum - 3 HP motor
  • Cab Walls - Paintable MDF (100 Series Cab)
  • Handrail - Flat Wood
  • Floor - Unfinished Maple Wood Veneer for finish by others
  • Two (2) Lights - Recessed LED
  • Gate - Accordion - Multiple panel options
  • Slimline Phone
  • Homing Device
  • Proprietary Control System with Dumbwaiter Feature
  • “Smart”  - COP and Hall Call Stations with Floor, Door, Gate indicators.

Options:

  • 200 Series Cab - Unfinished Wood Veneer
  • 250 Series Cab - Unfinished Wood Veneer - Shaker Style

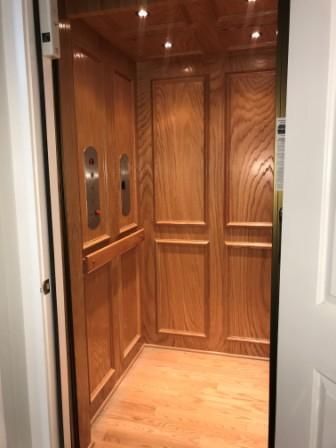

  • 300 Series Cab - Unfinished Wood Veneer with Moldings

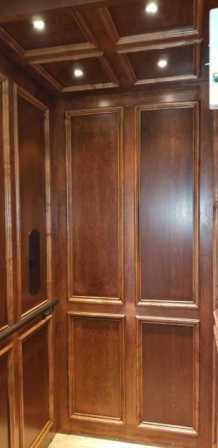

  • 400 Series Cab - Solid Hardwood - Recessed or Raised Panels
  • 500 Series Cab - Aluminum Frame with Acrylic Windows
  • Factory Finished Cab

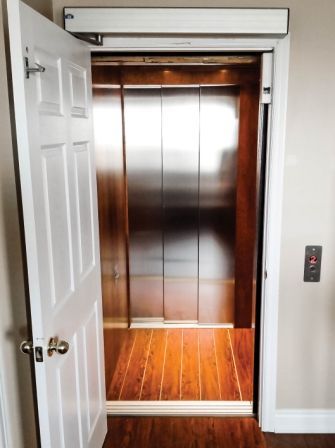

  • Automatic Doors & Gates - 2 Speed & 3 Speed Panels

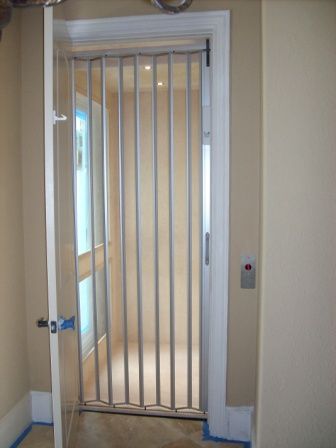

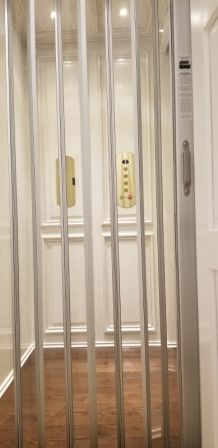

  • Accordion Gate - Dozens of Customizable Panel Options
  • Automatic Gate Operator - Accordion Gates Only

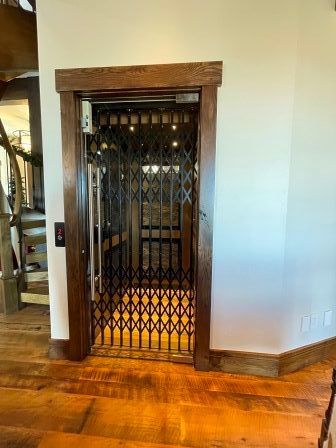

  • Collapsible Gates
  • Flush Mount Speaker Phone

Installation

Professional Measure + Installation available in the following areas:


Greater Cincinnati, Greater Dayton, OH, Northern Kentucky, Greater Louisville, KY including Southern Indiana, Kentuckiana, Central Kentucky, Eastern Kentucky, Southern Kentucky, Nashville, and Middle Tennessee.

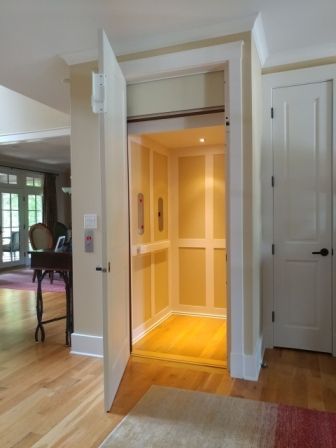

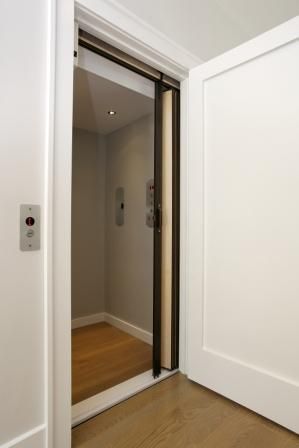

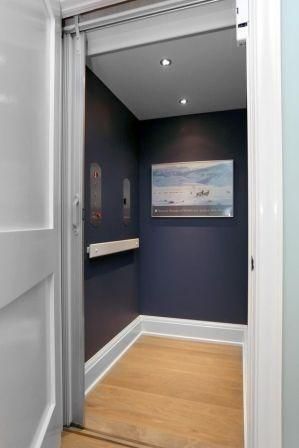

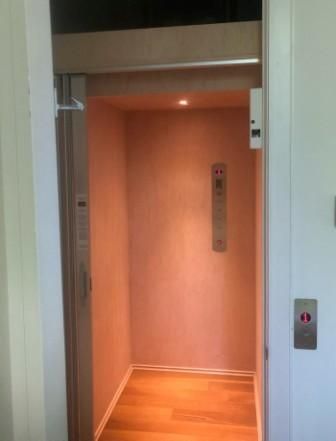

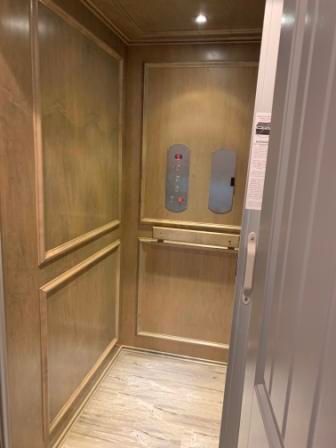

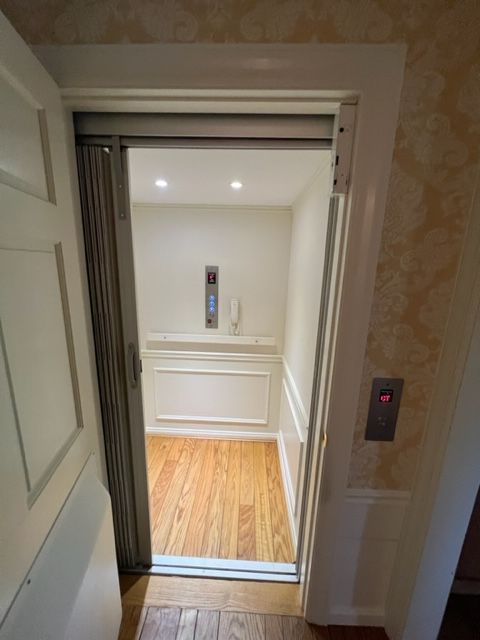

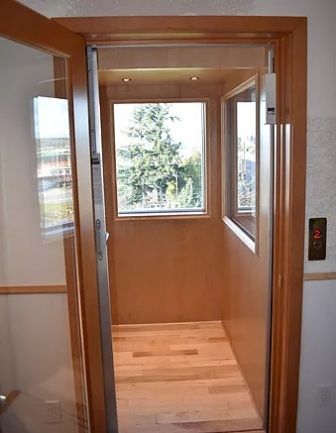

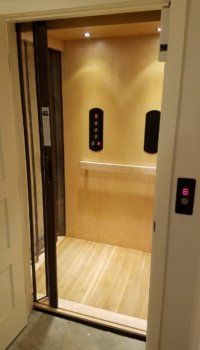

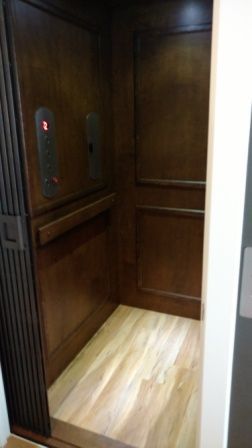

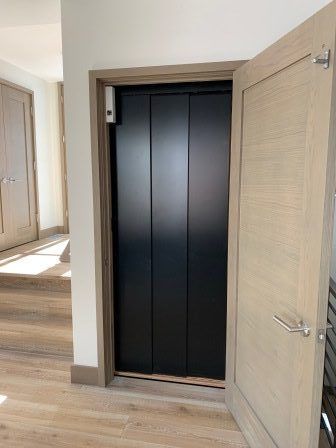

Product Gallery
